ROCO 1 1-phase electricity meter

Category: SKU: 61757
  • Authorised for insurance claims, campsites, construction sites and farms
  • Integrated electricity meter in compact housing made of highly break-resistant special plastic with viewing window for reading the roller counter
  • MID-compliant and suitable for billing purposes
  • Alternating current meter, 1-phase
  • Accuracy class 1/B

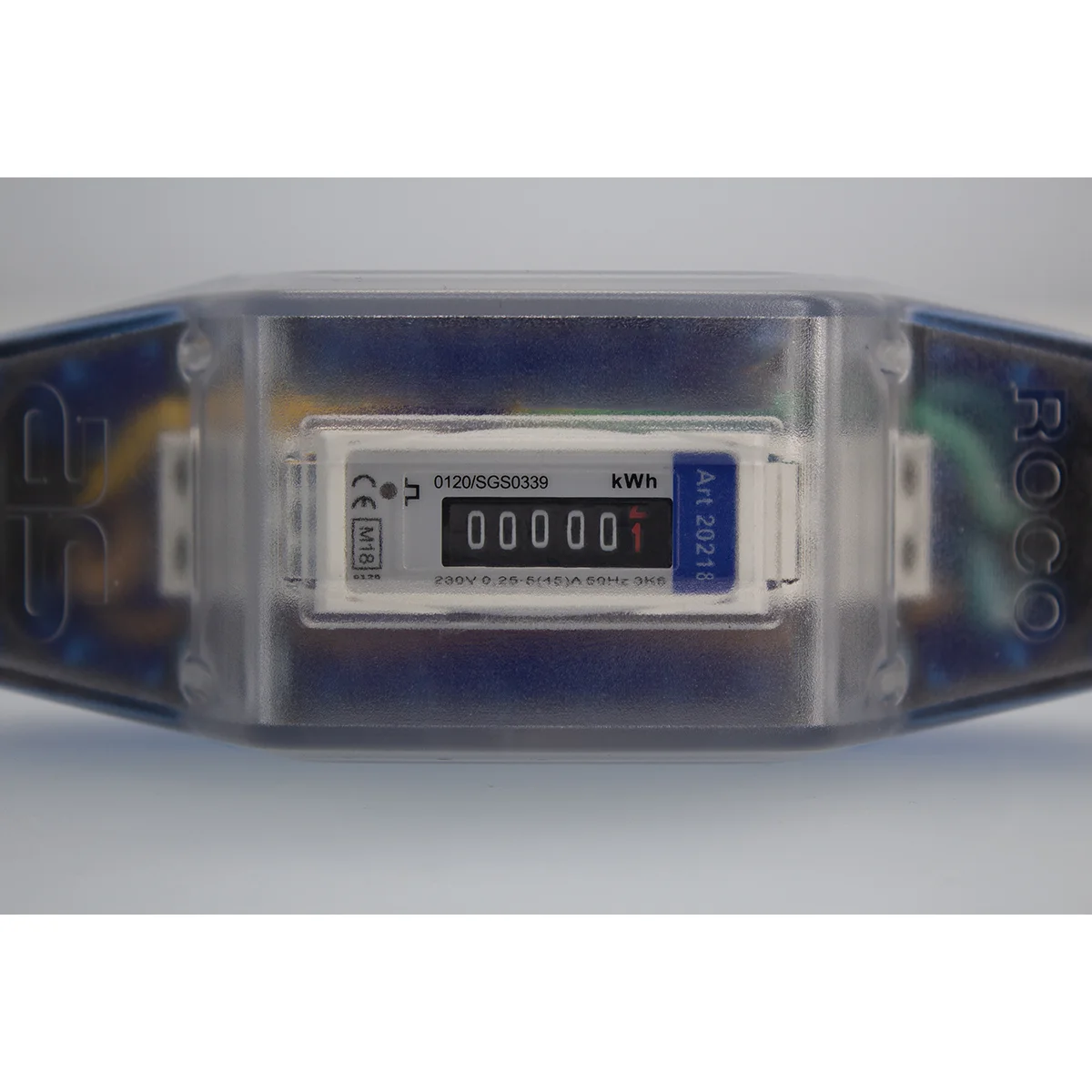

  • Analogue display: 5+1 digits, readable at any time
  • Display for max. 99,999.9 kWh
  • Roller counter cannot be reset to 0
  • 230 V, 16 A, max. 3.5 kW, 50 Hz
  • Current 0.25-5 A (max. 45 A)
  • Operating temperature from -25 °C to +55 °C
  • SDM 120 A, 230 V, 50 Hz
  • S0: 1000 imp/kWh
  • Tested in accordance with DIN EN 50525-2, DIN VDE 0620-2-1, IEC 60309, IEC EN 50470-1
  • IP44: protected against foreign bodies and splash water

Opis

Electricity bill?
No problem with ROCO electricity meters!
According to § 31 of the German Measurement and Verification Act (MessEG), only meters that comply with calibration law may be used for electricity billing. ROCO electricity meters comply with the guidelines of the Council of the European Measuring Instruments Directive MID and are recognised for electricity billing. The use of non-compliant electricity meters for billing is an administrative offence that can be punished with a fine of up to 50,000 euros (§ 60).

Versions

Name Type Tab Item no.

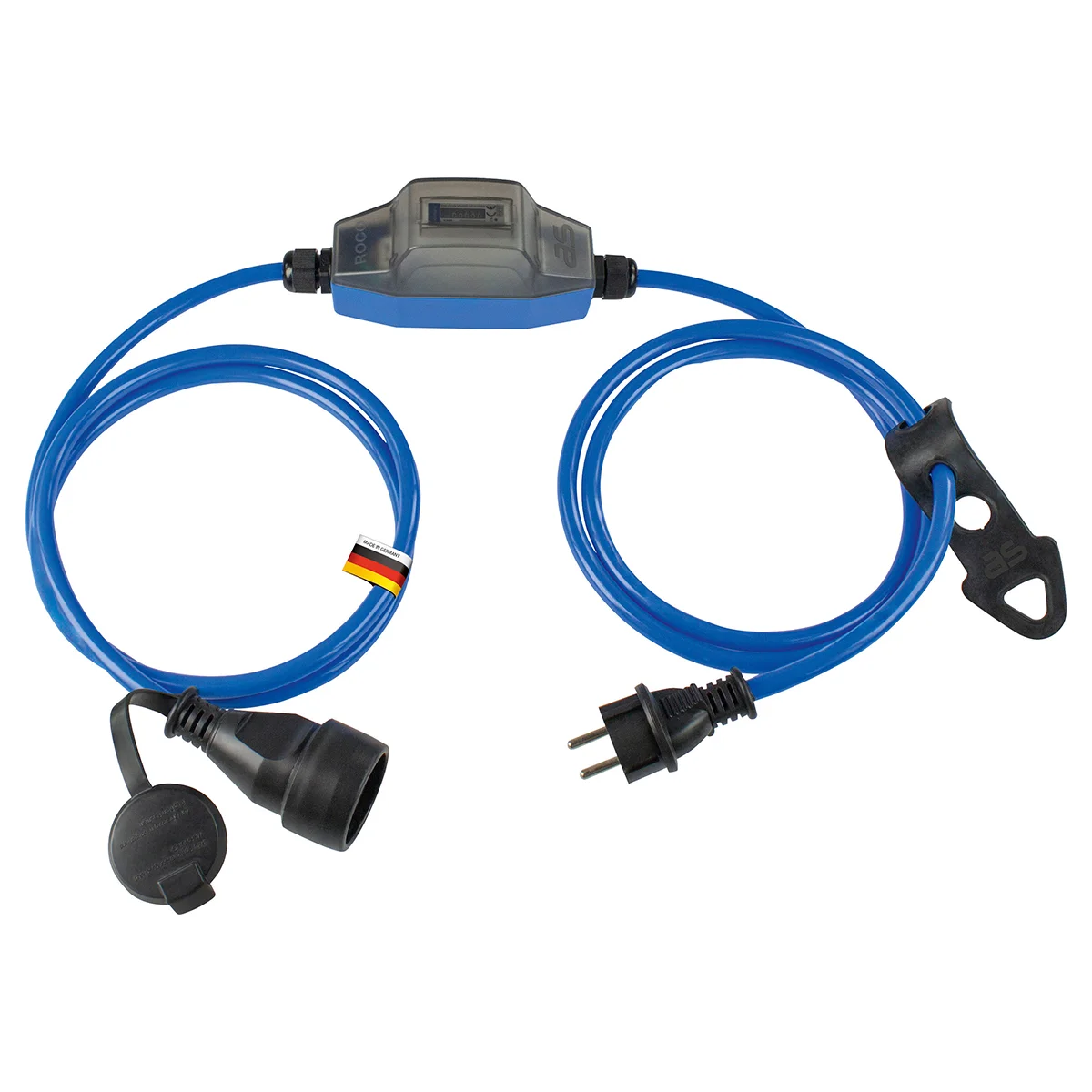

Roco1 1.5 m blue polyurethane cable H07BQ-F 3G2.5 at each end
Earthing contact plug and earthing contact coupling with protective cap		 Yes 230 V, 16 A, max. 3.5 kW 61757

Details

Security
nan
[1081][1085]
Technical data

230 V, 16 A, max. 3,500 W
Use
[1][2][3][9]
