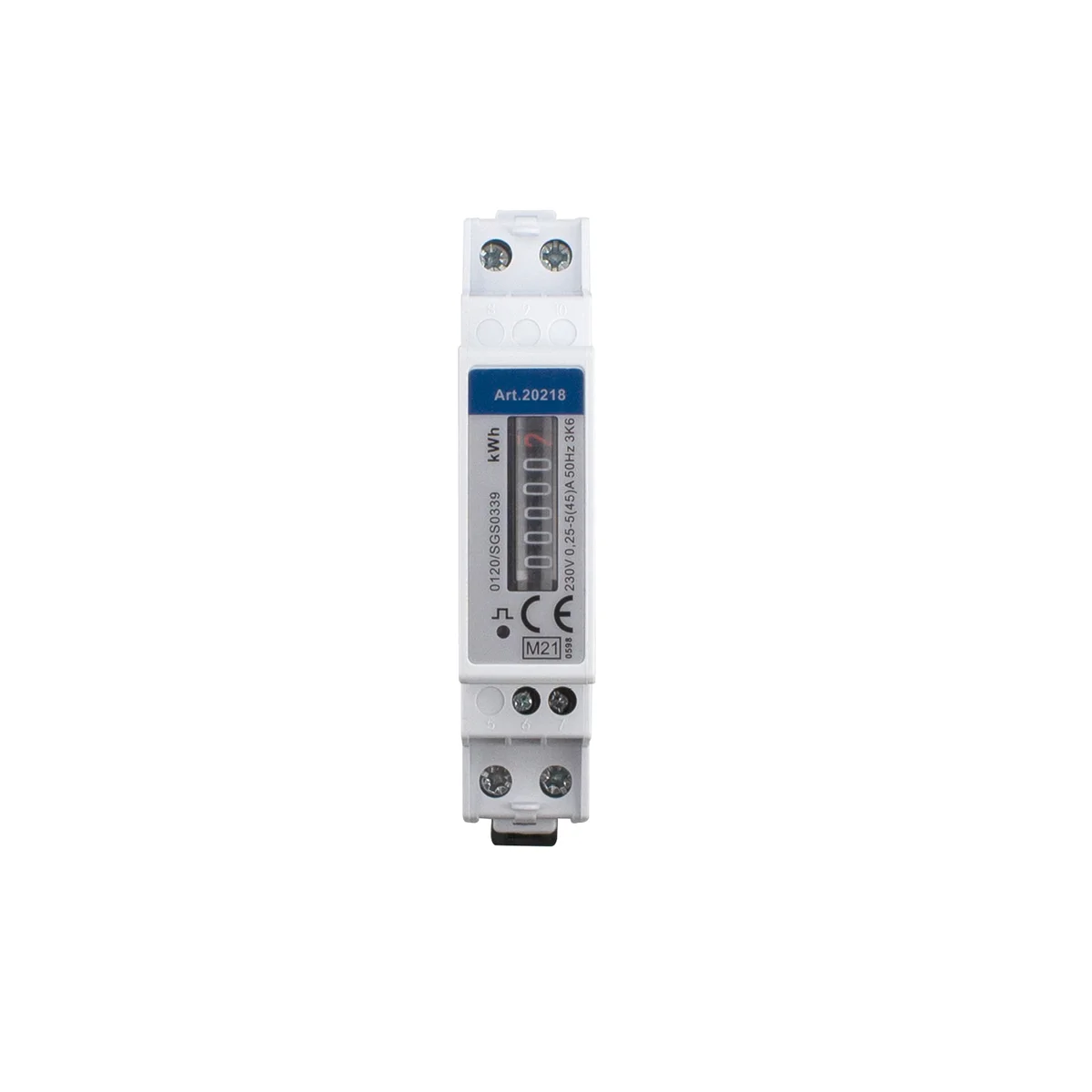

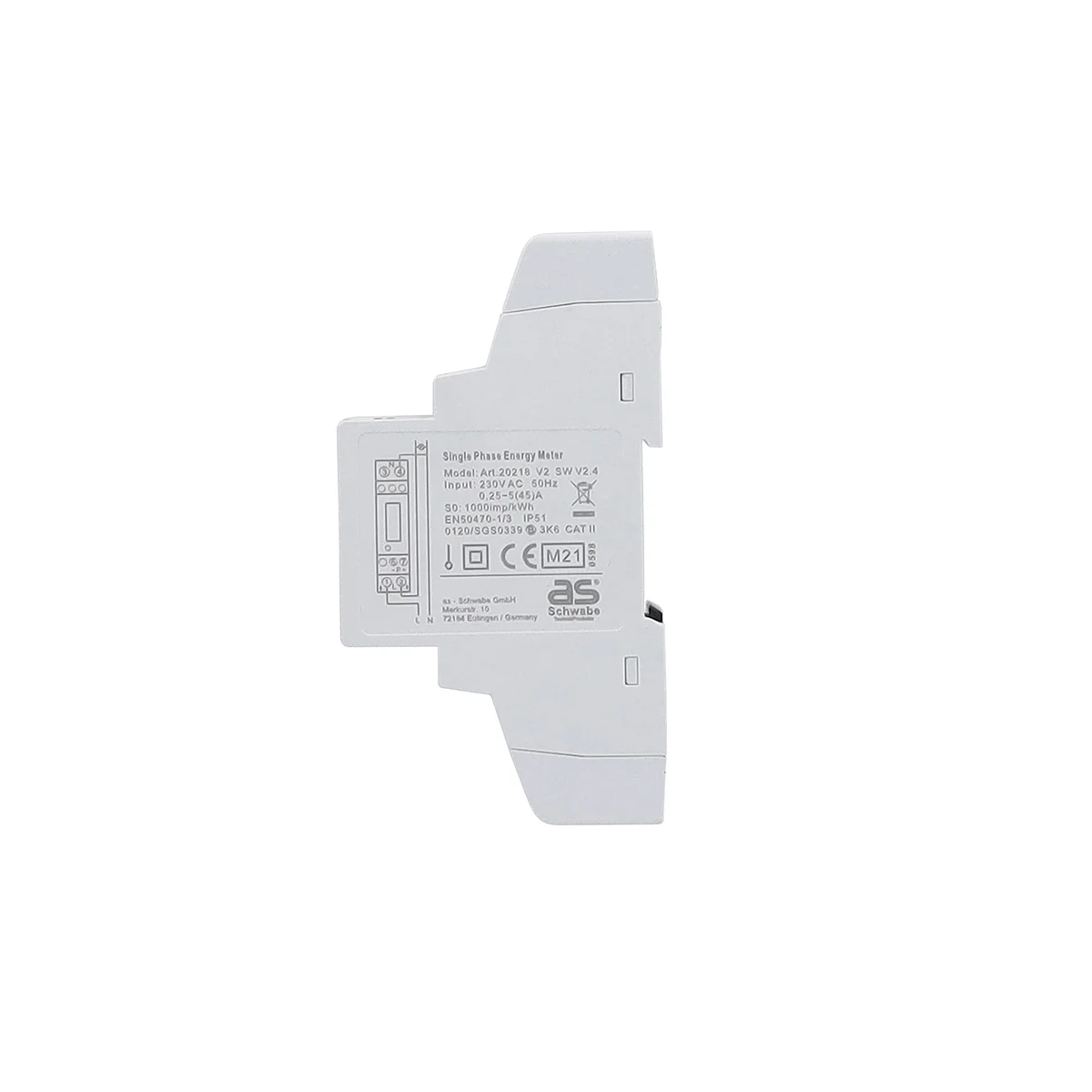

230 V electricity meter / DIN rail mounted device

Category: Energy meters SKU: 62511

Calibration-compliant electricity metering for the billing of insurance claims
Also suitable for construction sites and farms
Top-hat rail mount for easy self-assembly
Tested according to DIN EN 50525-2, IEC 60309, IEC EN 50470-1
MID-compliant and suitable for billing purposes
Accuracy class B
Analogue display: 5+1 digits, readable at any time
Display for max. 99,999.9 kWh
Roller counter cannot be reset to 0
Current 0.25-5 A (max. 45 A)
Operating temperature from -30 °C to +50 °C
SDM 120 A, 230 V, 50 Hz
S0: 1000 imp/kWh

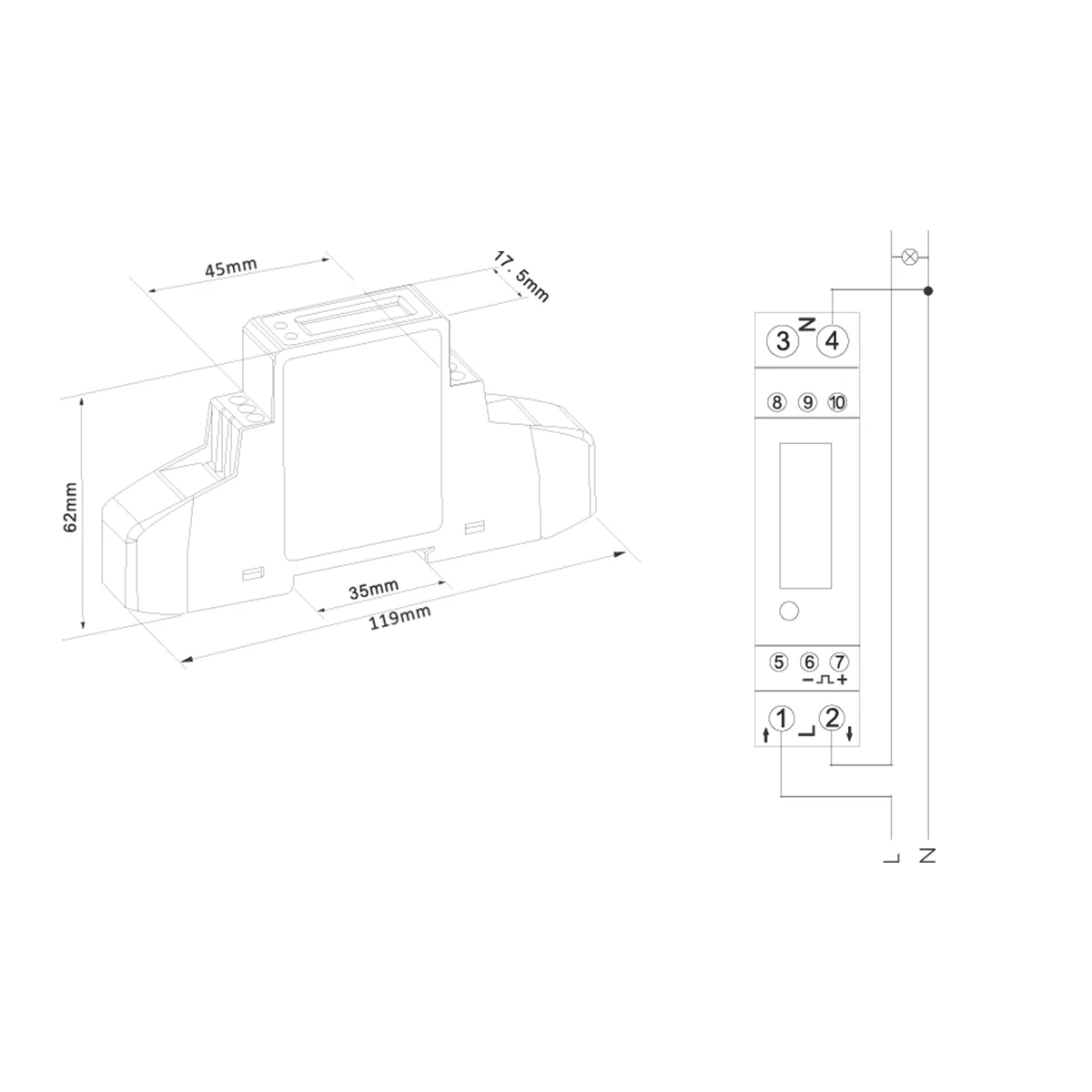

Dimensions HxWxD: 119×17.5×62 mm

Opis

Roller counter: MID-compliant
calibrated in accordance with the specifications of the calibration supervisory authority

Versions

230 V electricity meter / DIN rail mounted device	PU	Item no.
1-phase	1	62511

Details

Security
Tested according to DIN EN 50525-2 DIN VDE 0620-2-1, IEC 60309 IEC EN 50470-1 MID calibrated

Technical data
1-phase

Use
