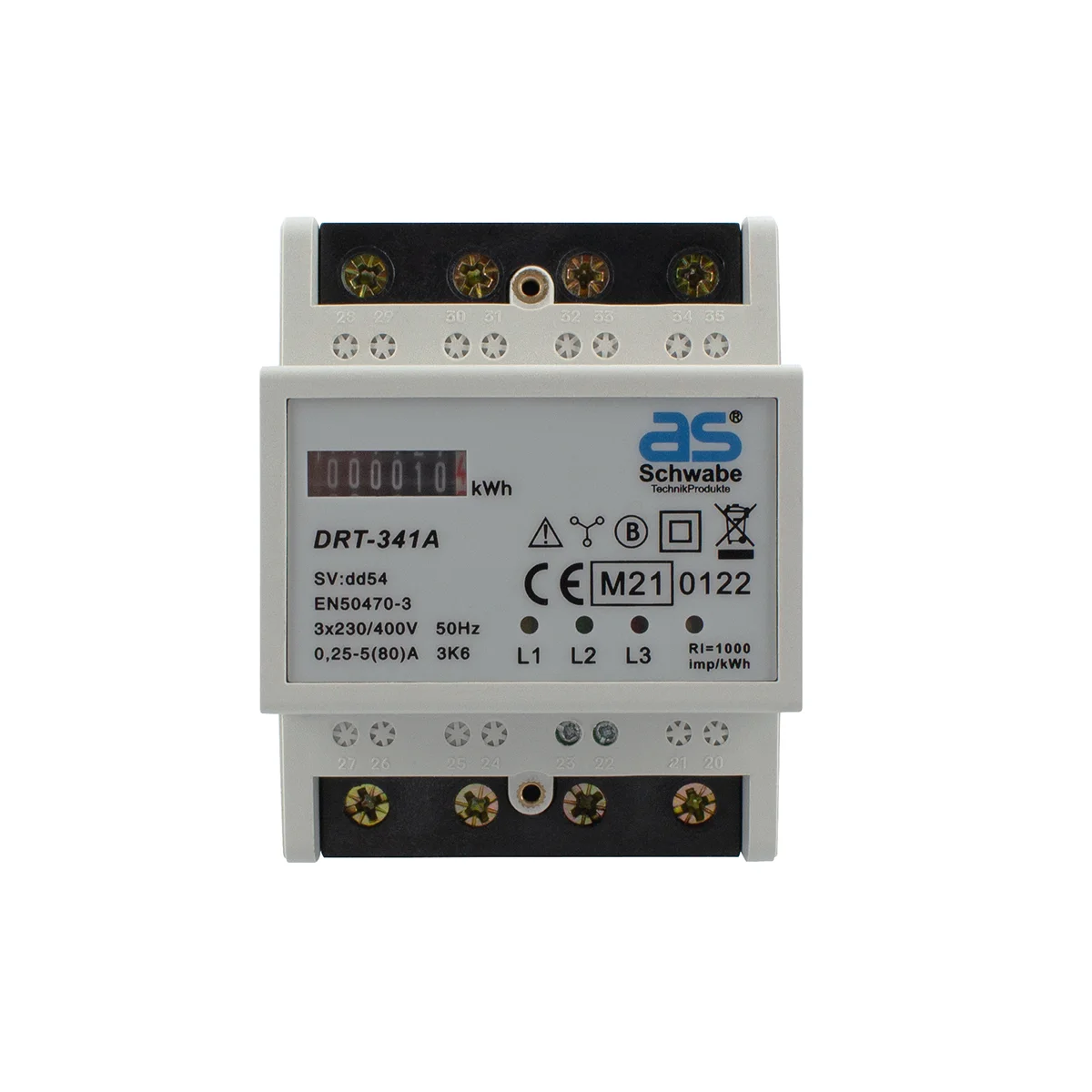

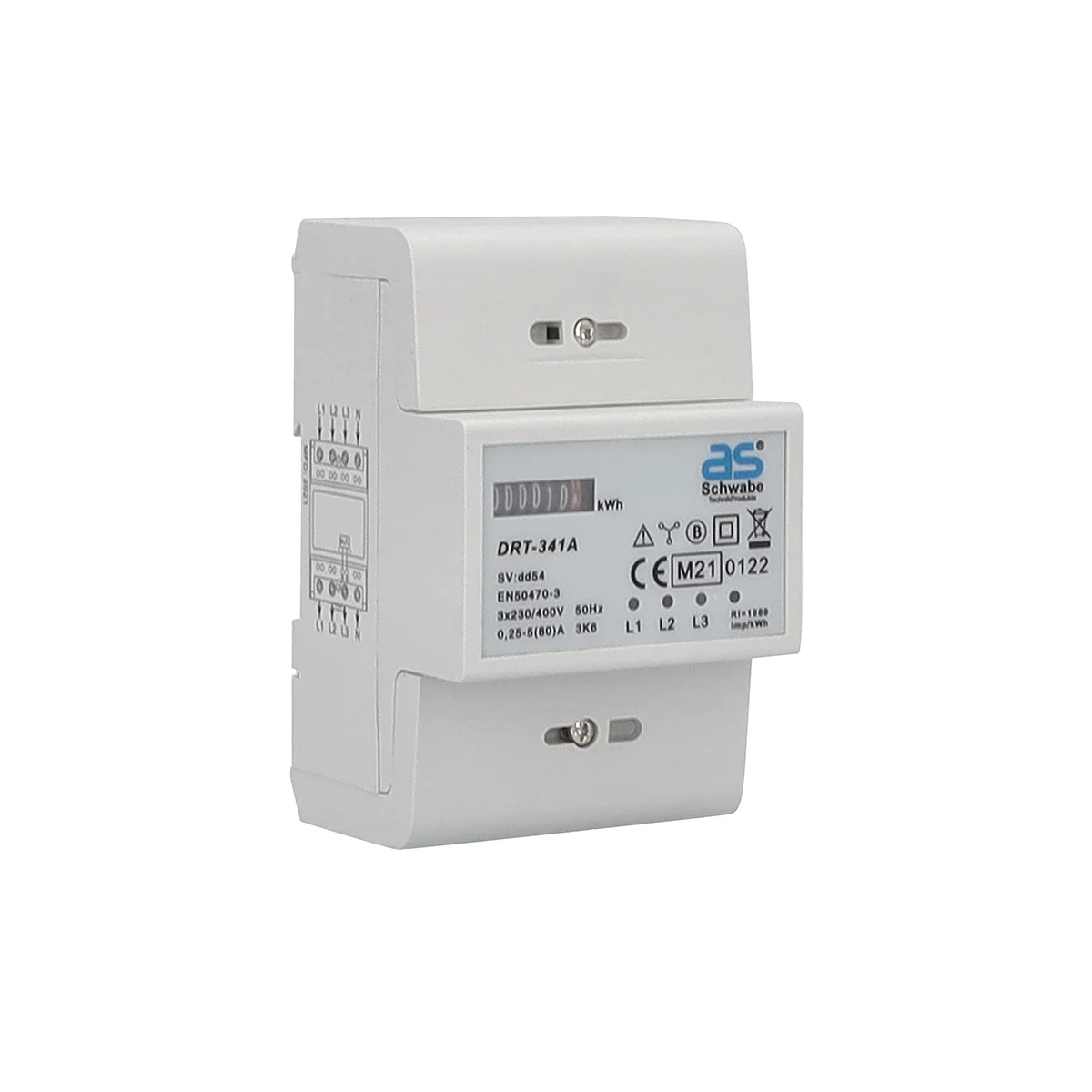

400 V electricity meter / series installation device

Category: Energy meters SKU: 62512

Calibration-compliant electricity metering for the billing of insurance claims
Also suitable for construction sites and farms
Top-hat rail mount for easy self-assembly
Tested according to DIN EN 50525-2, IEC 60309, IEC EN 50470-1
MID-compliant and suitable for billing purposes
Accuracy class B
Analogue display: 6+1 digits, readable at any time
Display for max. 999,999.9 kWh
Roller counter cannot be reset to 0
Current 0.25-5 A (max. 80 A)
Operating temperature from -25 °C to +55 °C
Dimensions HxWxD: 119x54x62 mm

Opis

Roller counter: MID-compliant
calibrated in accordance with the specifications of the calibration supervisory authority

Versions

400 V electricity meter / series installation device	PU	Item no.
3-phase	1	62512

Details

Security
Tested according to DIN EN 50525-2 DIN VDE 0620-2-1, IEC 60309 IEC EN 50470-1 MID calibrated

Technical data
1-phase

Use
