EnergyTube XL 360° LED FLUTER

Categories: , SKU: 46241,46242,46241,46242,46243

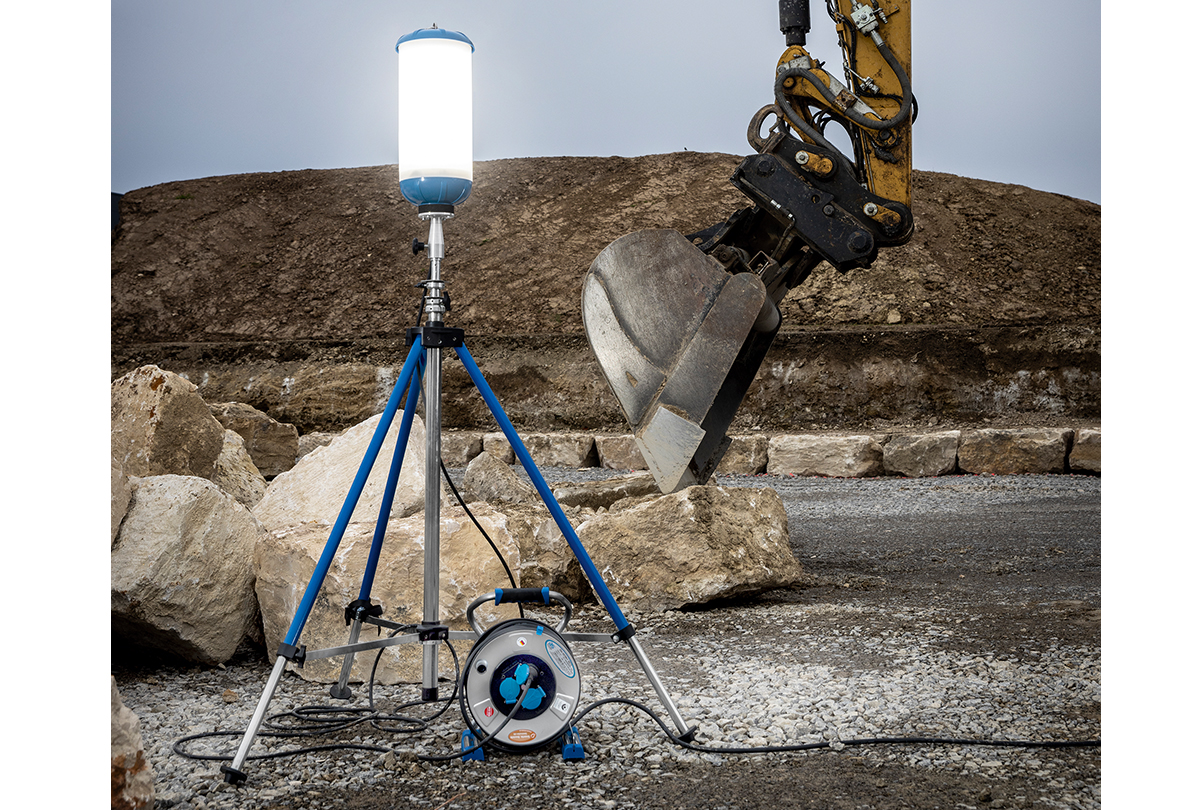

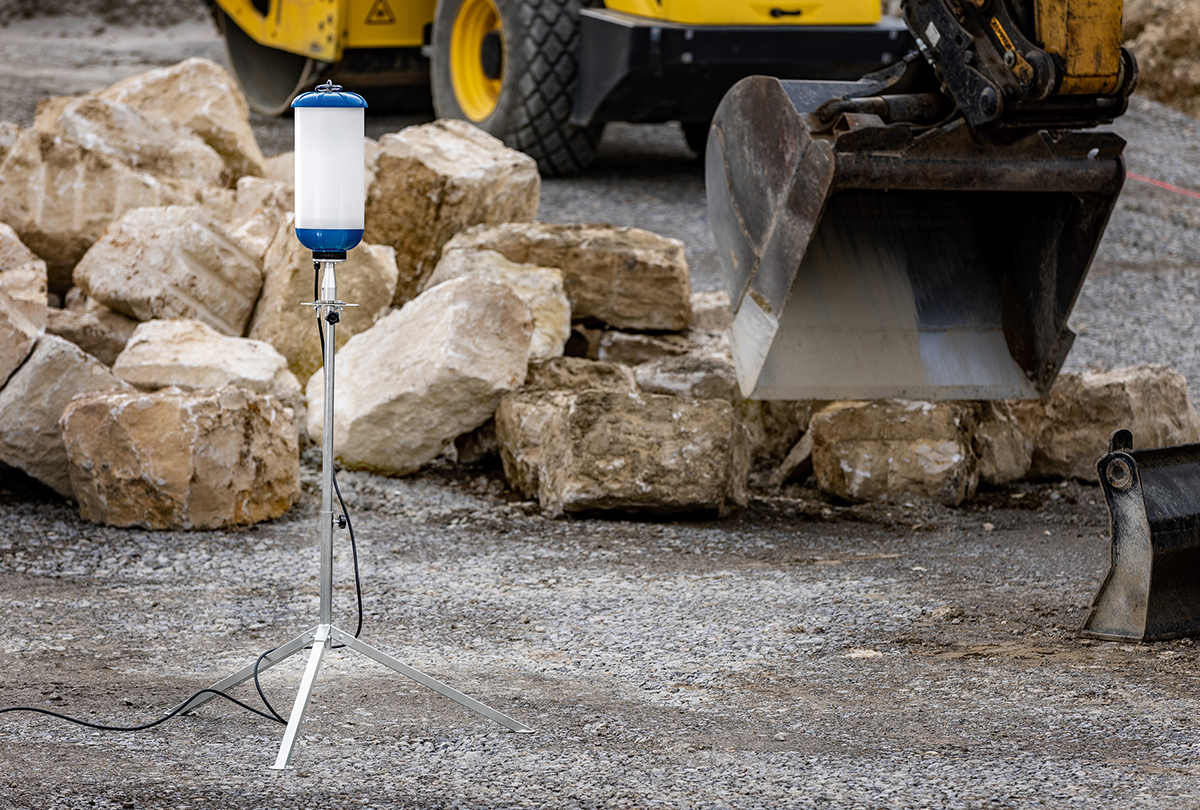

  • Premium 360° LED floodlight for all-round illumination of large areas

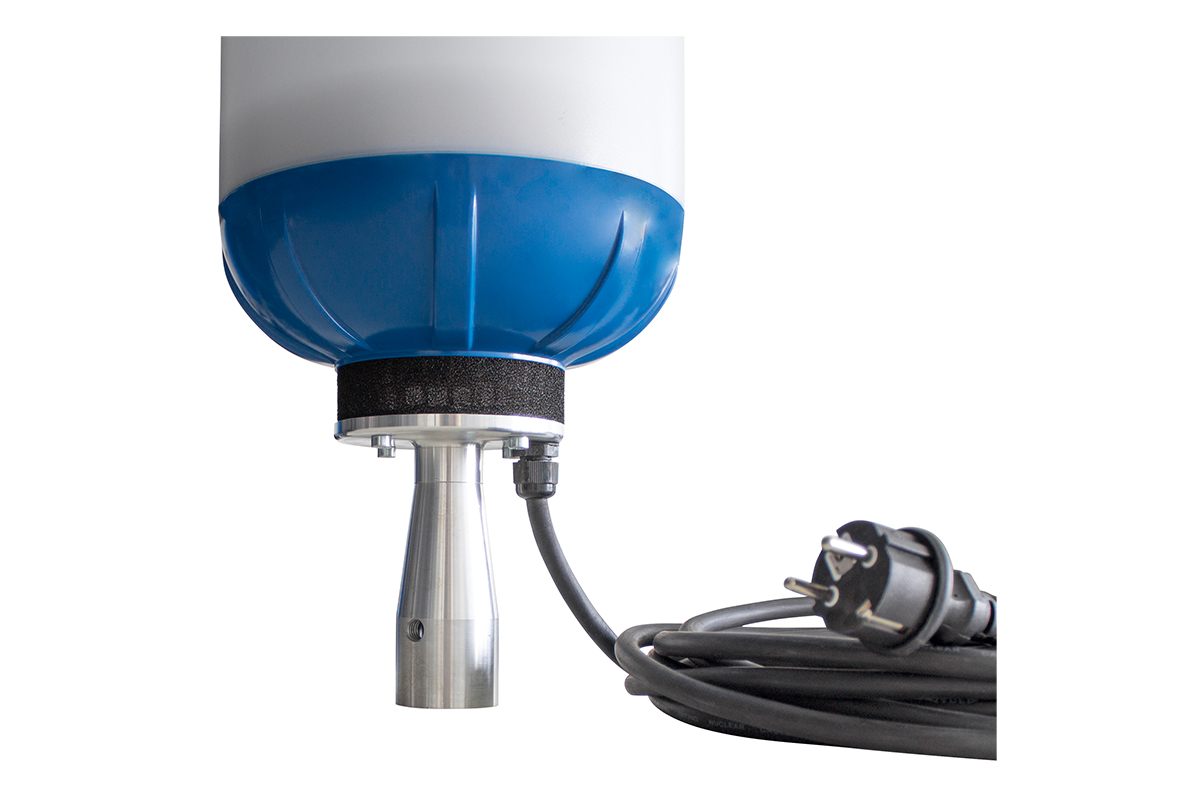

  • with DIN spigot mount for mounting on stands with DIN spigot

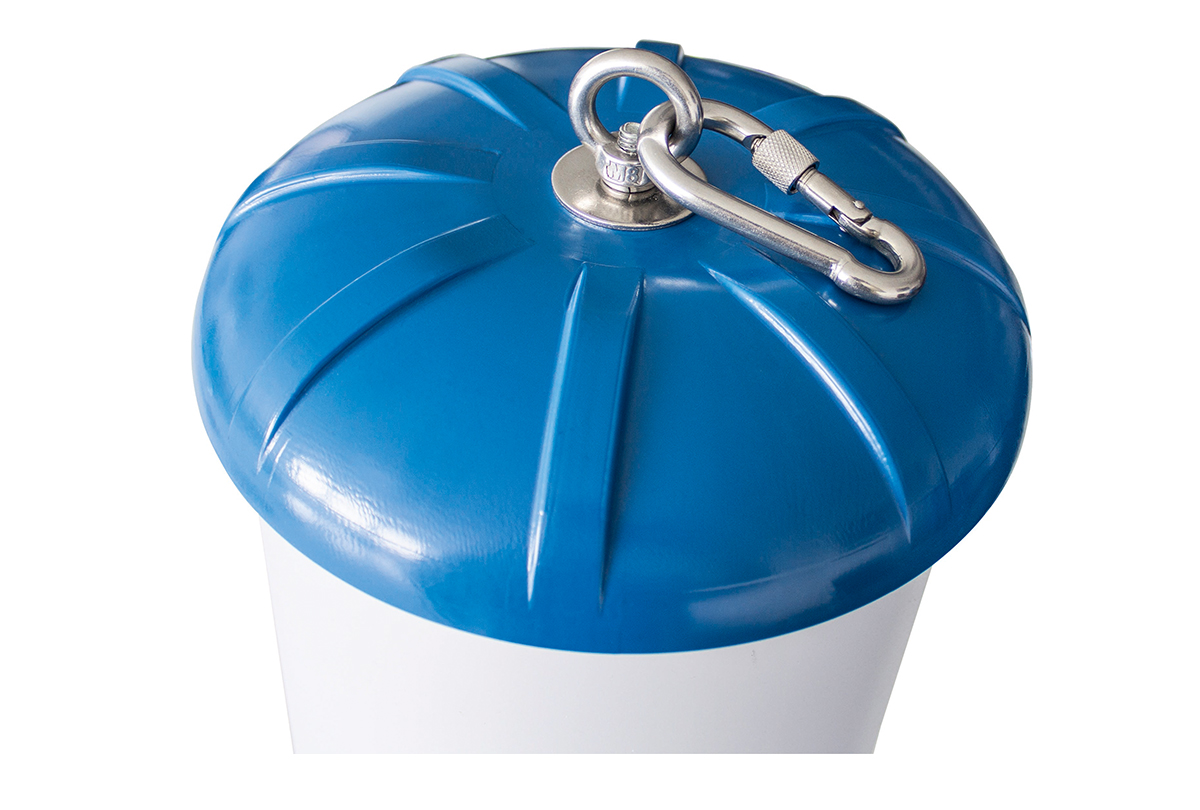

  • Alternatively, quick hanging possible using eyelet and snap hook
  • LED encased in polycarbonate protective pillar, extremely impact-resistant IK10
  • Extremely long-lasting high-performance LEDs with a service life of over 50,000 hours (150 lm/W)
  • Colour rendering: CRI > 80
  • Beam angle: 360°

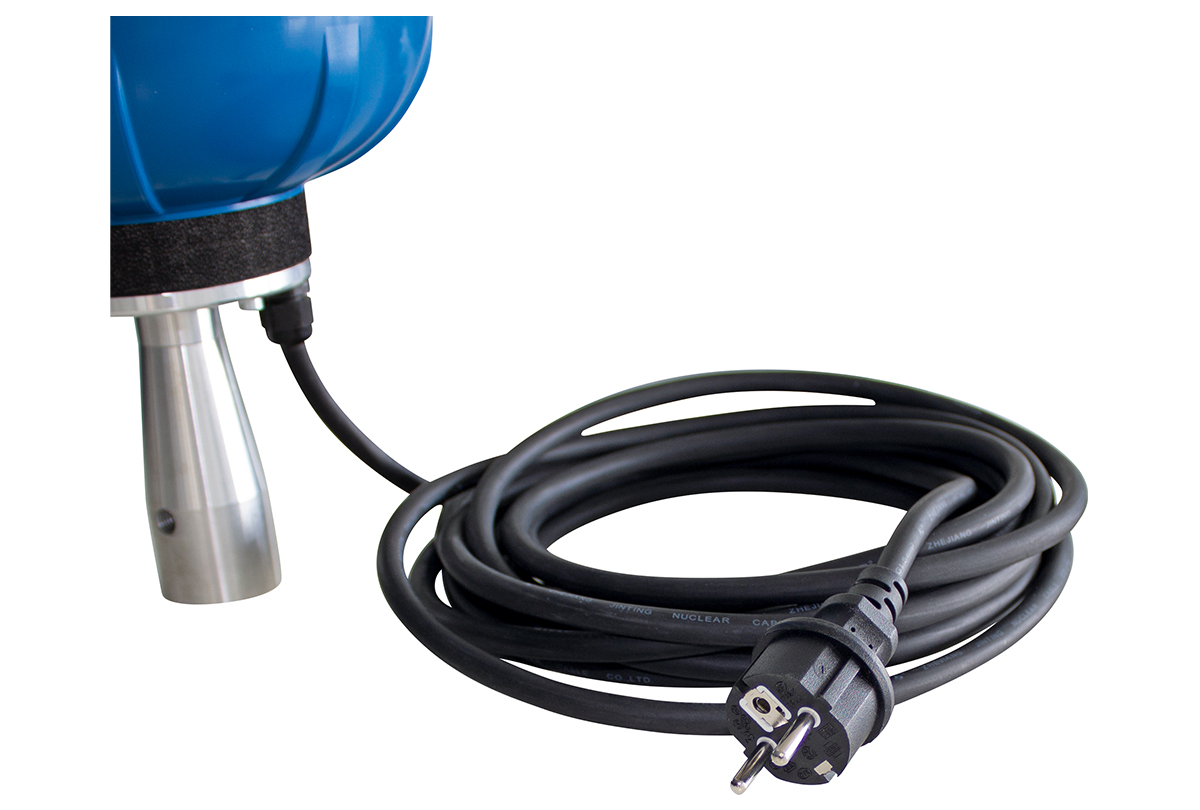

  • 7 m rubber cable H07RN-F 3G1.5 with earthing contact plug
  • with integrated thermal protection
  • Ambient operating temperature: -15 °C to + 40 °C
  • Connection: 230 V / 50-60 Hz
  • IP44: protected against foreign bodies and splash water

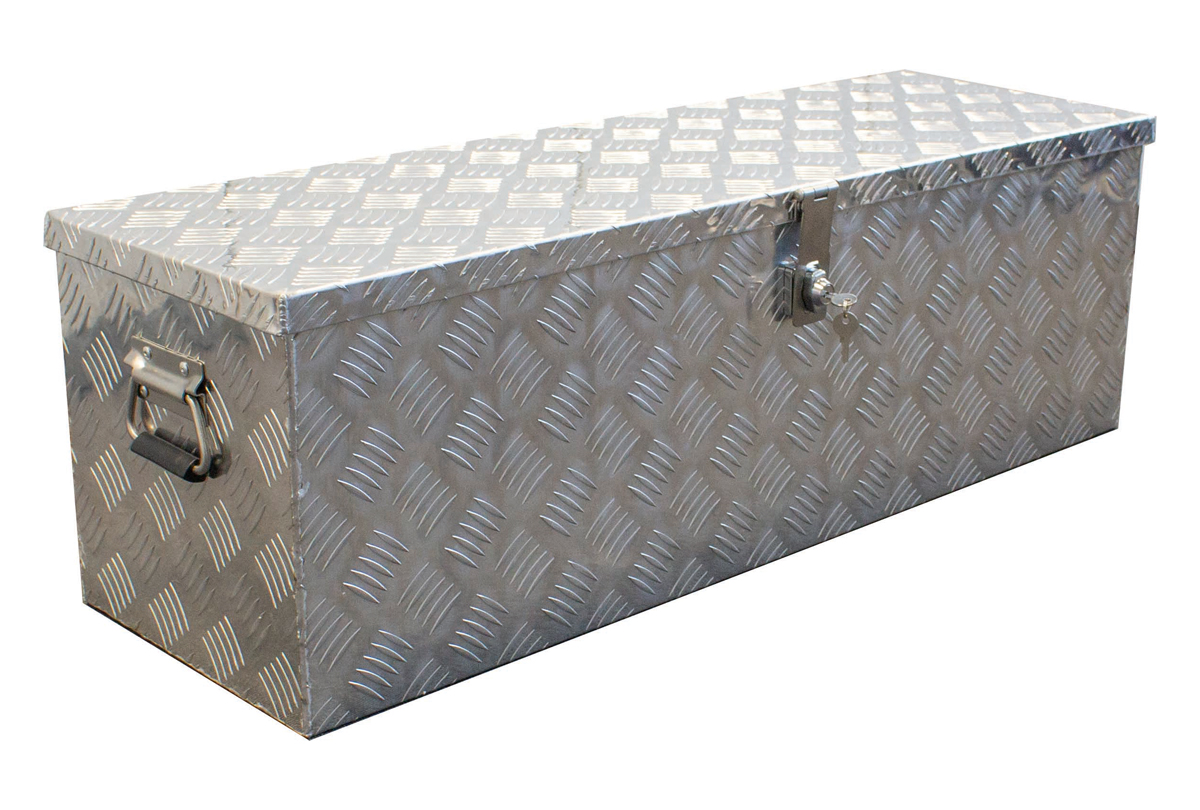

Transport box for EnergyTube XL

  • Suitable for EnergyTube XL floodlights 200 W and 500 W
  • Sturdy, protective housing made of aluminium chequer plate for safe transport

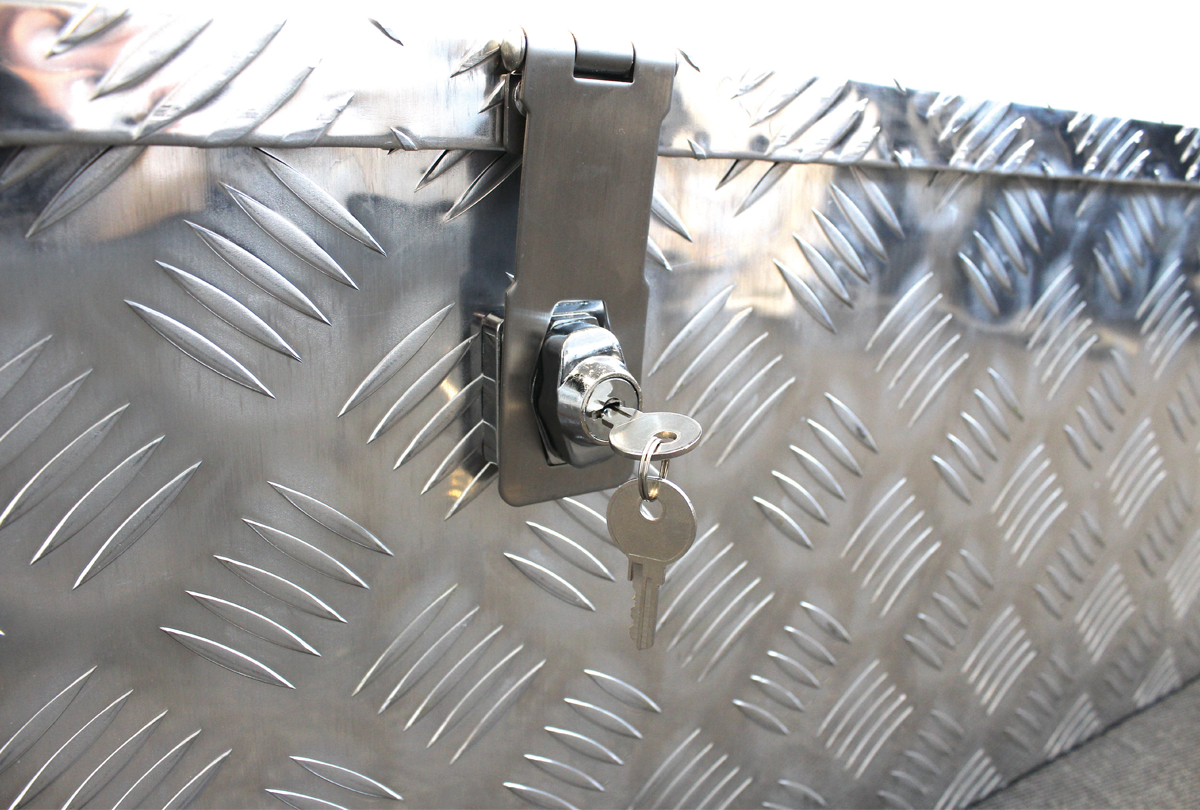

  • with foam insert and lockable lid incl. 2 keys

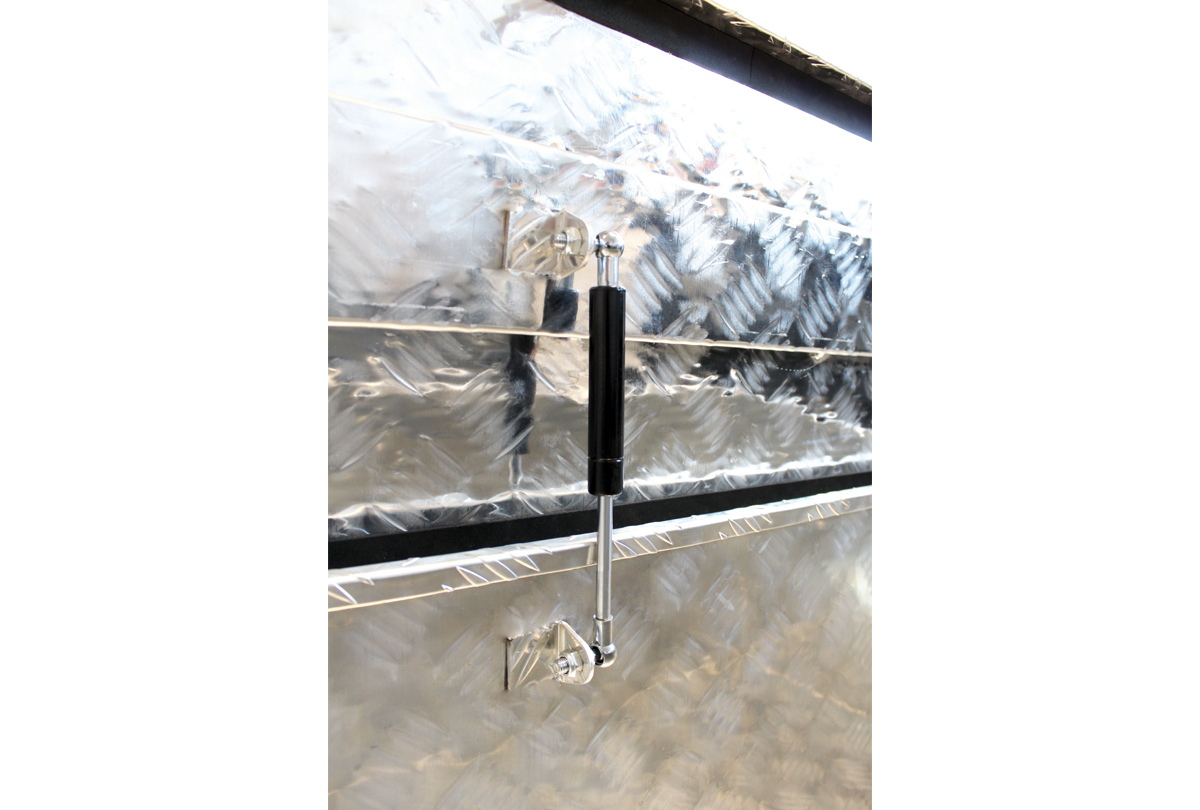

  • Soft opening and closing of the lid thanks to gas pressure spring (approx. 80°)

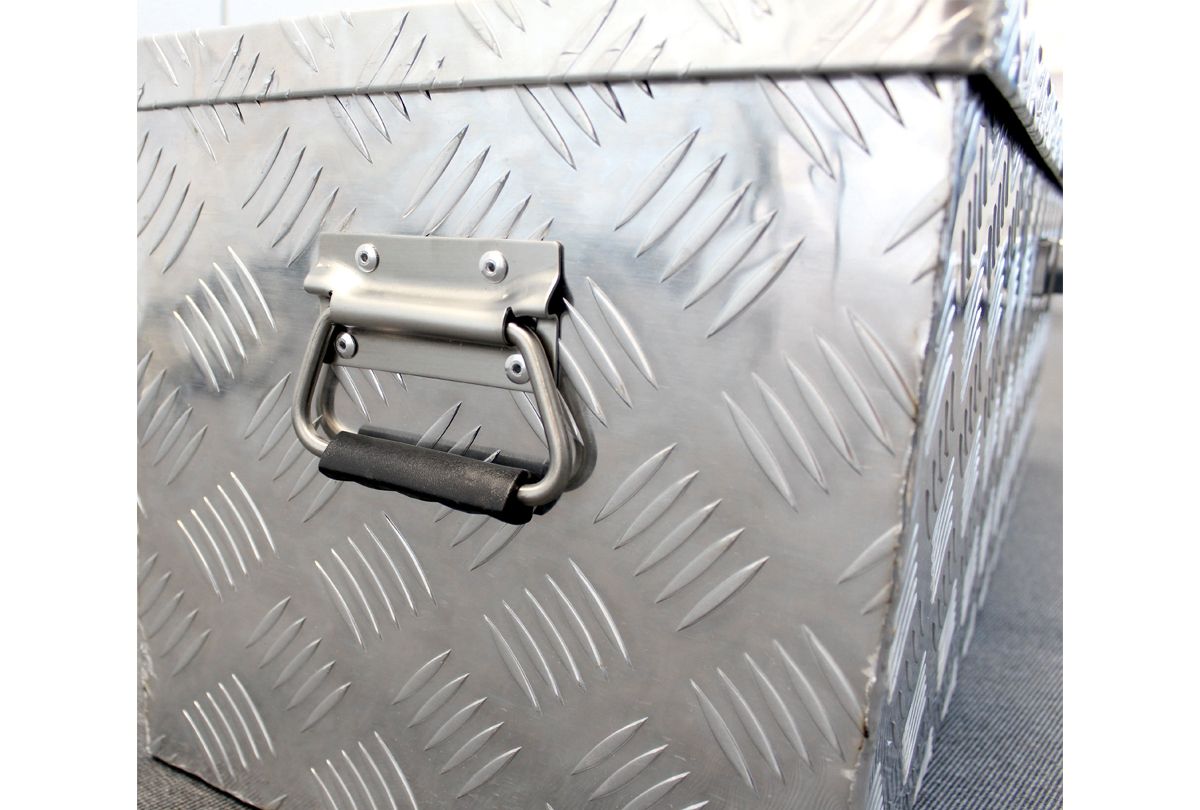

  • Movable handles on both sides for a non-slip grip when carrying

Opis



Versions

Model Light output Colour temperature Illumination area Item no.
200 watts approx. 30,000 lumens 5.000 K approx. 2400 m² 46241
500 watts approx. 70,000 lumens 5.000 K approx. 3200 m² 46242
Transport box Dimensions Item no.
for 46241 or 46242 1000 x 320 x 320 mm 46243

Details

Security

Tested according to
DIN EN 60598-1

[1081][1085]
Technical data
Connection: 220-240 V/50 Hz
Use
[1][2][3]

LED technology

LEDs are tiny electronic chips made from special Semiconductor compounds. If current flows through this solid, it begins to glow, it "emits" light. In lighting technology, this process is called "electroluminescence". With an edge length of around one millimetre, LEDs are among the smallest available light sources. They radiate an almost punctiform light off. Already little energy is sufficient to excite the semiconductors to light up.

Advantages of LED:

  • Very low power consumption (over 90 % less energy consumption compared to halogen lamps)
  • High luminous efficacy without start-up phase
  • Extremely low heat generation
  • Extremely long service life
  • do not contain any hazardous substances such as mercury
