Optiline mobile LED spotlights

Categories: , SKU: 46344,46345,46346
  • LEDs with a service life of over 40,000 hours
  • Colour temperature: 4,000 K (neutral white)
  • LED beam angle: 100°
  • Slim die-cast aluminium housing with swivelling and lockable mounting bracket
  • Connection cable and windscreen cannot be replaced
  • Connection: 220-240 V/50 Hz
  • Housing made of special plastic with hinged stand
  • Polycarbonate diffuser disc
  • 3 m heavy-duty rubber cable H07RN-F 3G1.5 with earthing contact plug
  • IP54: dust and splash-proof

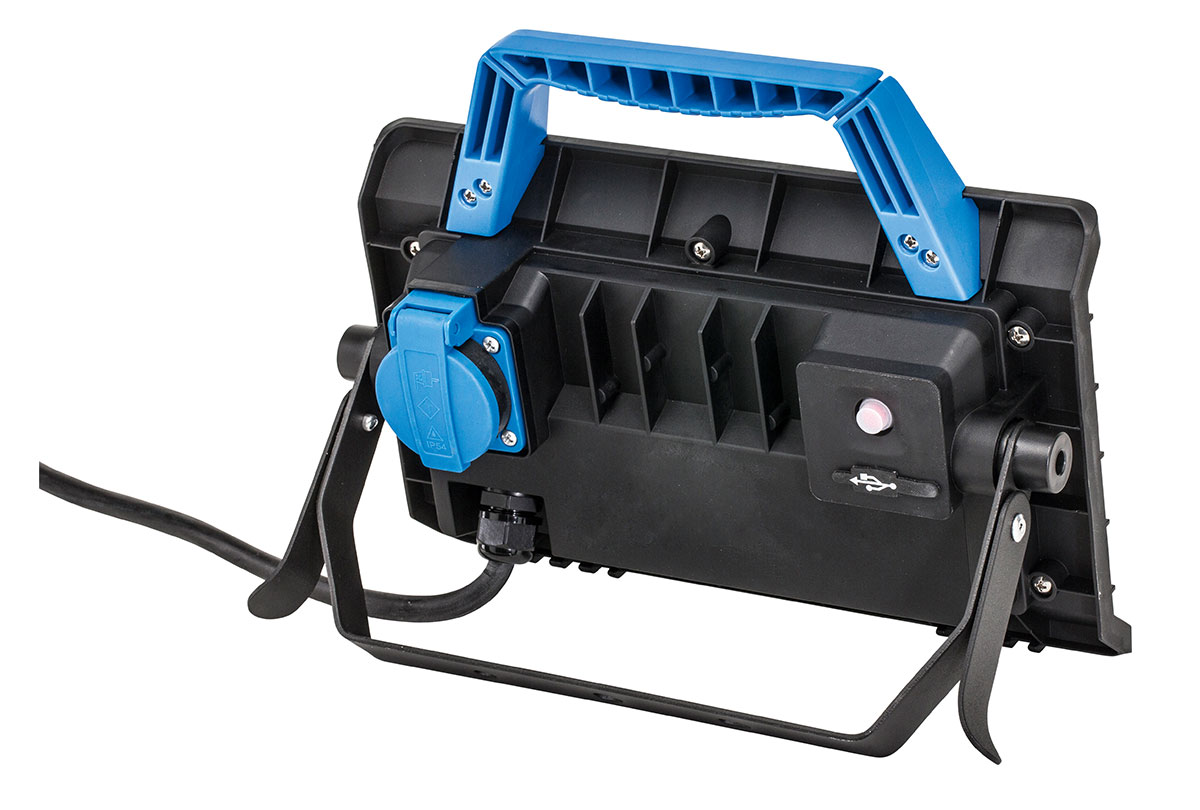

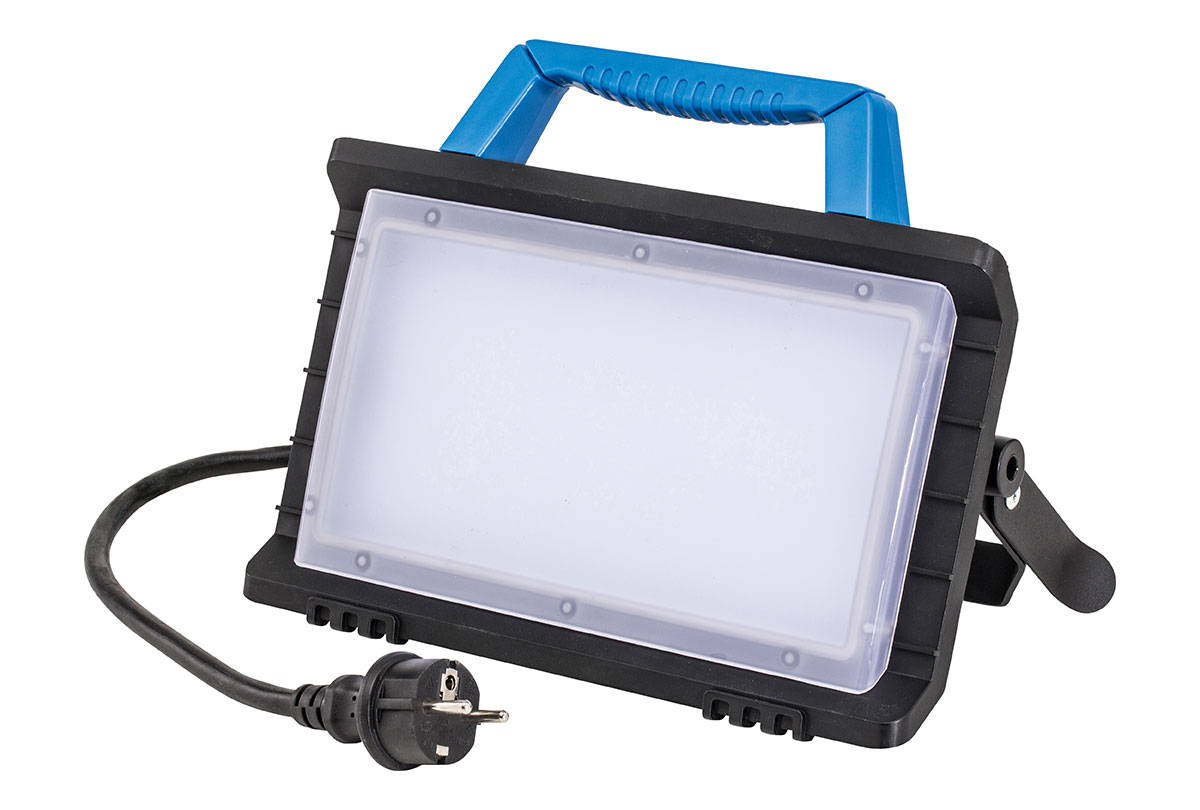

24 Watt (art. no. 46344)

  • One socket outlet with earthing contact and hinged cover
  • USB output: 5 V/1.0 A
  • with on/off switch

45 Watt (art. no. 46345)

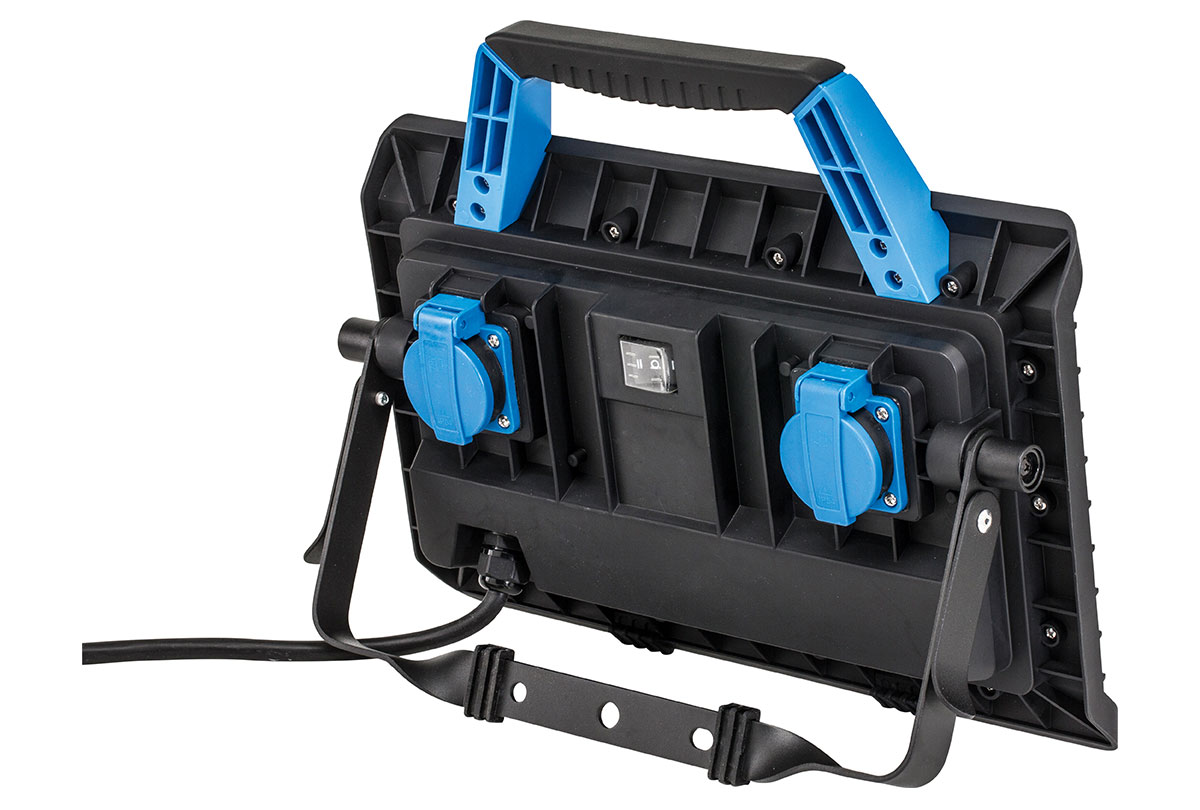

  • Two earthed socket outlets with hinged lids
  • 3 switching stages: 50%, 100%, Off

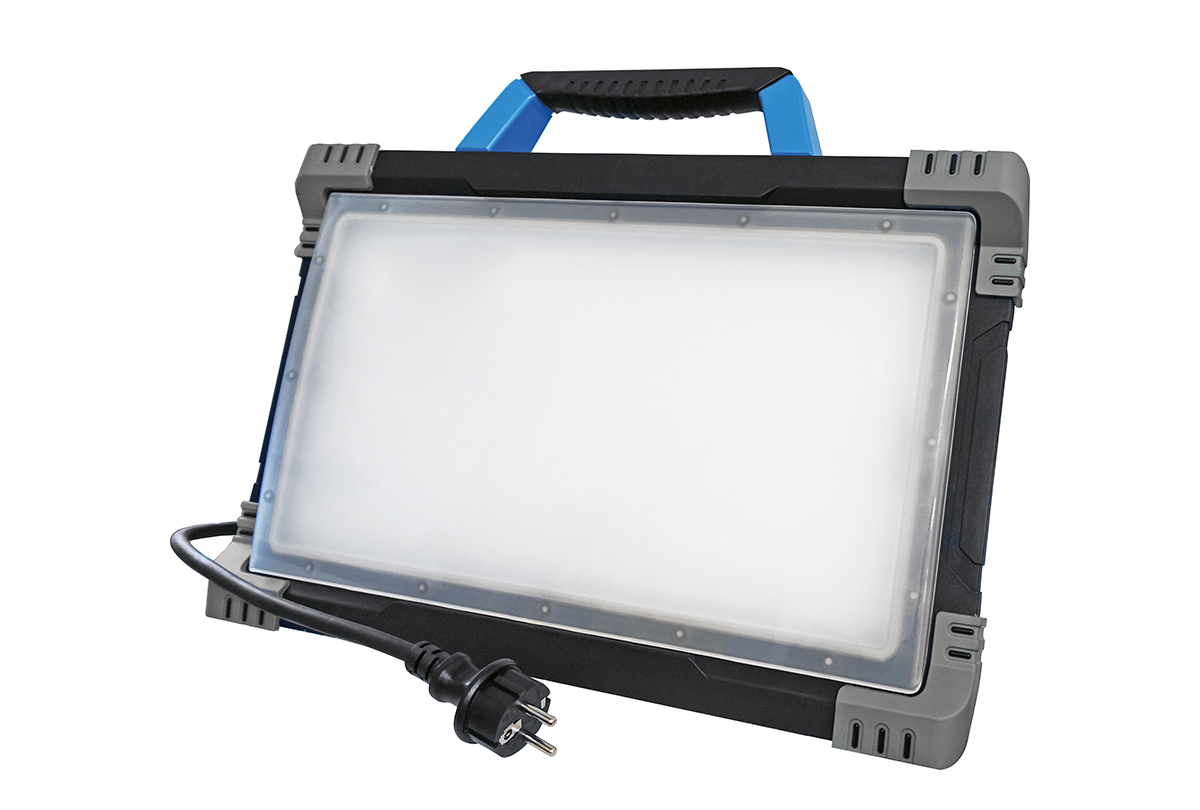

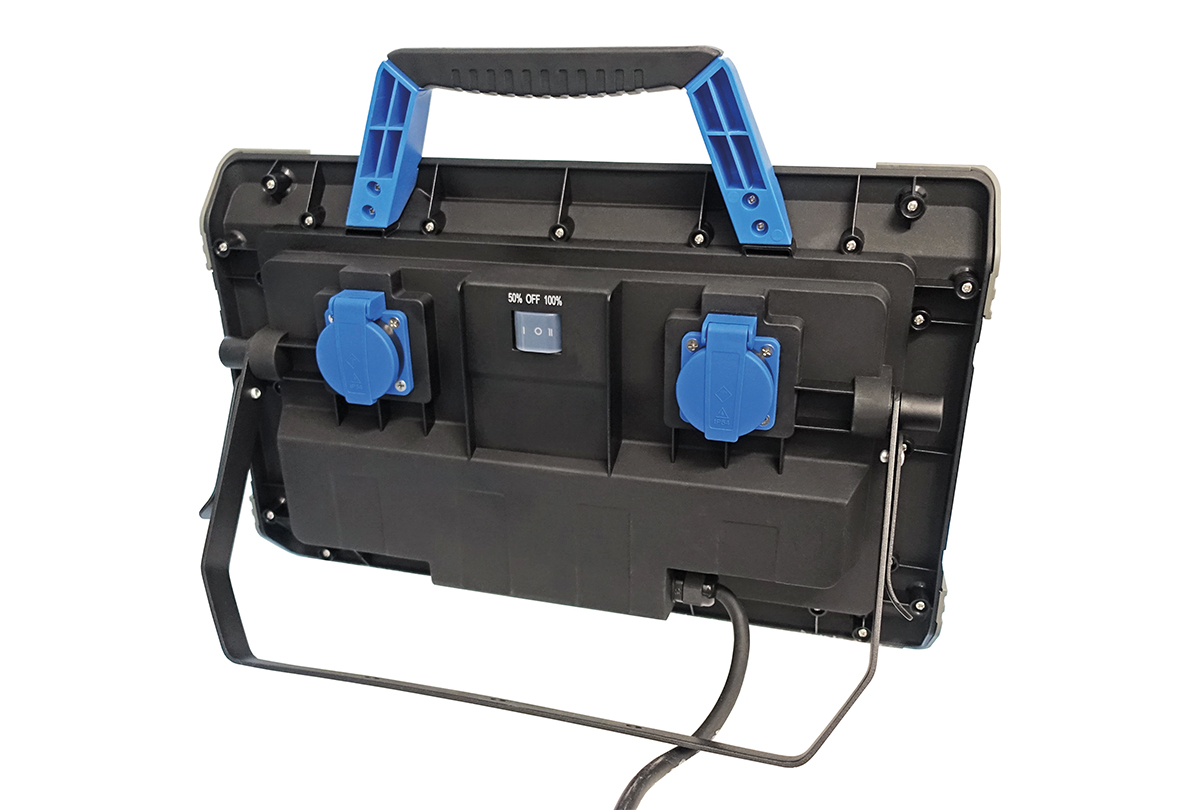

80 Watt (art. no. 46346)

  • Two earthed socket outlets with hinged lids
  • 3 switching stages: 50%, 100%, Off

Opis

Versions

Model Light output PU Item no.
24 watts approx. 1,920 lumens 1 46344
45 watts approx. 3,800 lumens 1 46345
80 watts approx. 9,200 lumens 1 46346

Details

Security

Tested according to
DIN EN 60598-1

[1084][1085]
Technical data

Connection: 220-240 V/50 Hz
Use
[1][2][3]

LED technology

LEDs are tiny electronic chips made from special Semiconductor compounds. If current flows through this solid, it begins to glow, it "emits" light. In lighting technology, this process is called "electroluminescence". With an edge length of around one millimetre, LEDs are among the smallest available light sources. They radiate an almost punctiform light off. Already little energy is sufficient to excite the semiconductors to light up.

Advantages of LED:

  • Very low power consumption (over 90 % less energy consumption compared to halogen lamps)
  • High luminous efficacy without start-up phase
  • Extremely low heat generation
  • Extremely long service life
  • do not contain any hazardous substances such as mercury
