Mobile solid rubber site power distributor G-M22

Categories: , SKU: 63260
  • Housing made of extremely robust solid rubber, stackable and therefore extremely space-saving to store
  • Designed for heavy-duty construction site use
  • Recommended for power generators in accordance with DGUV Information 203-032
  • Closed housing base with 77 mm ground clearance prevents water ingress
  • Housing cover with stainless steel quick-release fasteners
  • Safe to touch, even when the lid is open - in accordance with BGV A2
  • Fuses specially protected by installation inside
  • Additional security with optional screw or padlock
  • Dimensions (WxHxD): 330x290x245 mm
  • Tested according to DIN VDE 0620-2-1, IEC 60309, EN 61439-4, DIN EN 50525-2
  • IP44: protected against foreign bodies and splash water

Entrance
230 V, 32 A, approx. 7.2 kW CEE plug 230 V, 32 A, 3-pinwith 2 m H07RN-F 3G6 heavy-duty rubber cable

Output
4x socket outlets with earthing contact 230 V, 16 A

Opis

Versions

Name Protection Item no.

GM22

 4x combined RCD/LCB 2-pole, C16A, 30 mA, 10 kA, type A 63260

Details

Security
nan
[1081][1085]
Technical data

230 V, 32 A, approx. 7.2 kW
Use
[1][2][3][9]

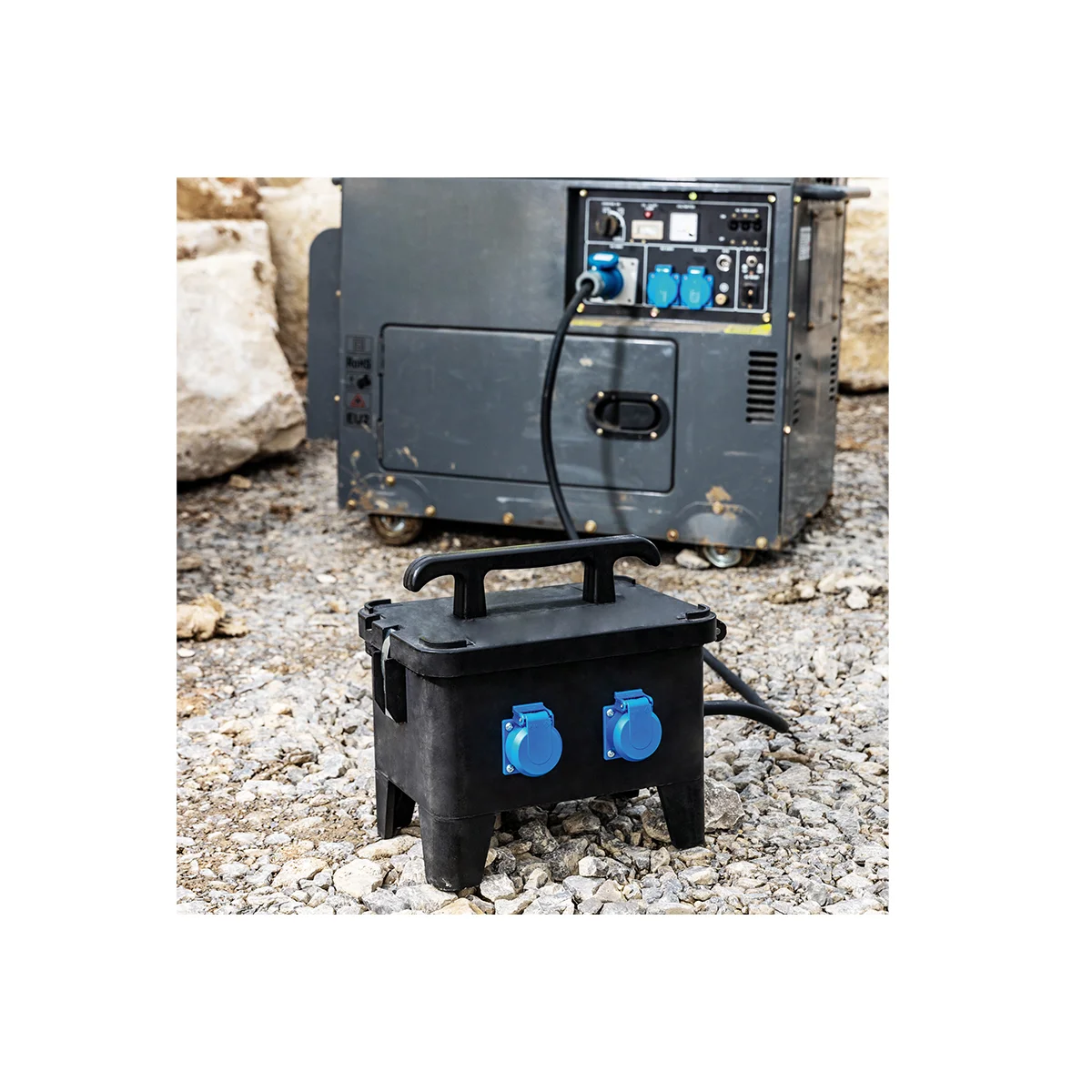

Fuse loads correctly when using a power generator!

We explain how:
To protect against electrical accidents, each socket used must be individually protected by an RCD when connecting several consumers to one power generator.
All G series power distributors and multiple socket outlets as well as our PRCD-K range fulfil this requirement of DGUV I 203-032 and can be used for fuse protection.

DGUV Information 203-032
BG BAU is the statutory accident insurance organisation for the construction industry and construction-related services in Germany. One of its aims is to reduce the immense number of electrical accidents in the construction industry.
According to DGUV Information 203-032 from BG BAU on the subject of "Selection and operation of power generators on construction and assembly sites", it should be noted that only one consumer per socket outlet may be connected, especially when using multiple consumers.
