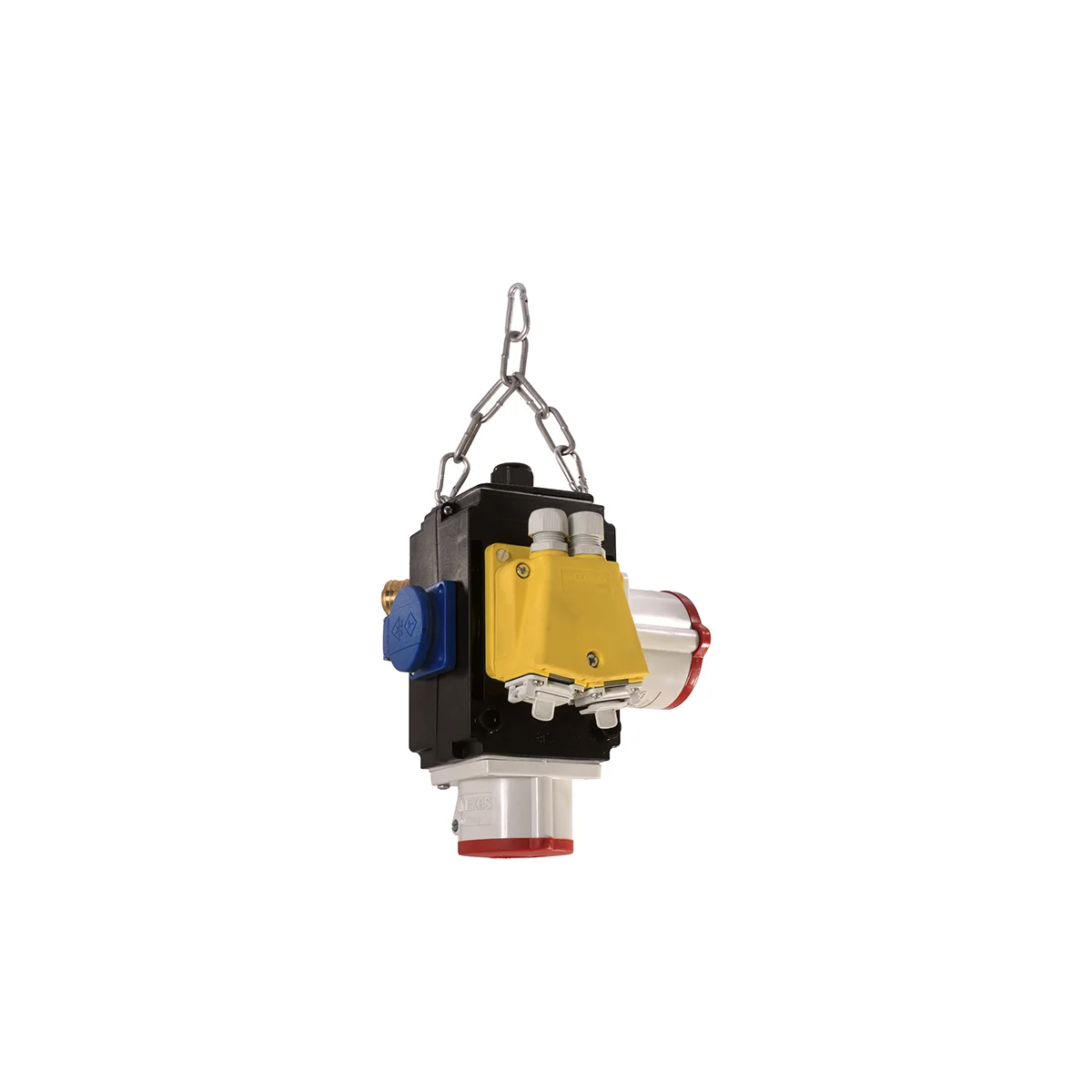

MIXO energy cube VI DAT+ with data connection

Entrance
for cable diameter 5×4 mm²up to 5×6 mm²
Output
1x 230 V, 16 A socket outlet with earthing contact
1x CEE socket 400 V, 16 A, 5-pin
1x CEE socket 400 V, 32 A, 5-pin
3x G fuses (10 A), non-resetting, slow-blow T10 A, SPT 5×20 m
with compressed air connection
with data connection: 2x RJ45 Cat. 6 module IP67
Housing made of highly break-resistant special plastic
All energy cubes are wired ready for connection
Including cable entry with screw cap and chain with snap hook
IP44: protected against foreign bodies and splash water

Opis

Type	Connections	Weight	PU	Item no.
Energy cube VII DAT+	with compressed air and data connection	1.6 kg	1	60781

Security
tested according to DIN VDE 0620 IEC 60309

Technical data
230 V, 16 A 400 V, 16 A 400 V, 32 A

Use
