MIXO energy cube II with/without compressed air connection

MIXO Energy Cube II with/without compressed air connection

Entrance
for cable diameter 5×1.5 mm² up to 5×2.5 mm²
Output
4x socket outlets with earthing contact 230 V, 16 A
1x CEE socket 400 V, 16 A, 5-pin
available with and without compressed air connection
available with data connection: 2x RJ45 Cat. 6 module IP67
Housing made of highly break-resistant special plastic
All energy cubes are wired ready for connection
Including cable entry with screw cap and chain with snap hook
All energy cubes without a data socket have a practical multi-purpose hook on one side
IP44: protected against foreign bodies and splash water

Opis

Type	Connections	Weight	PU	Item no.

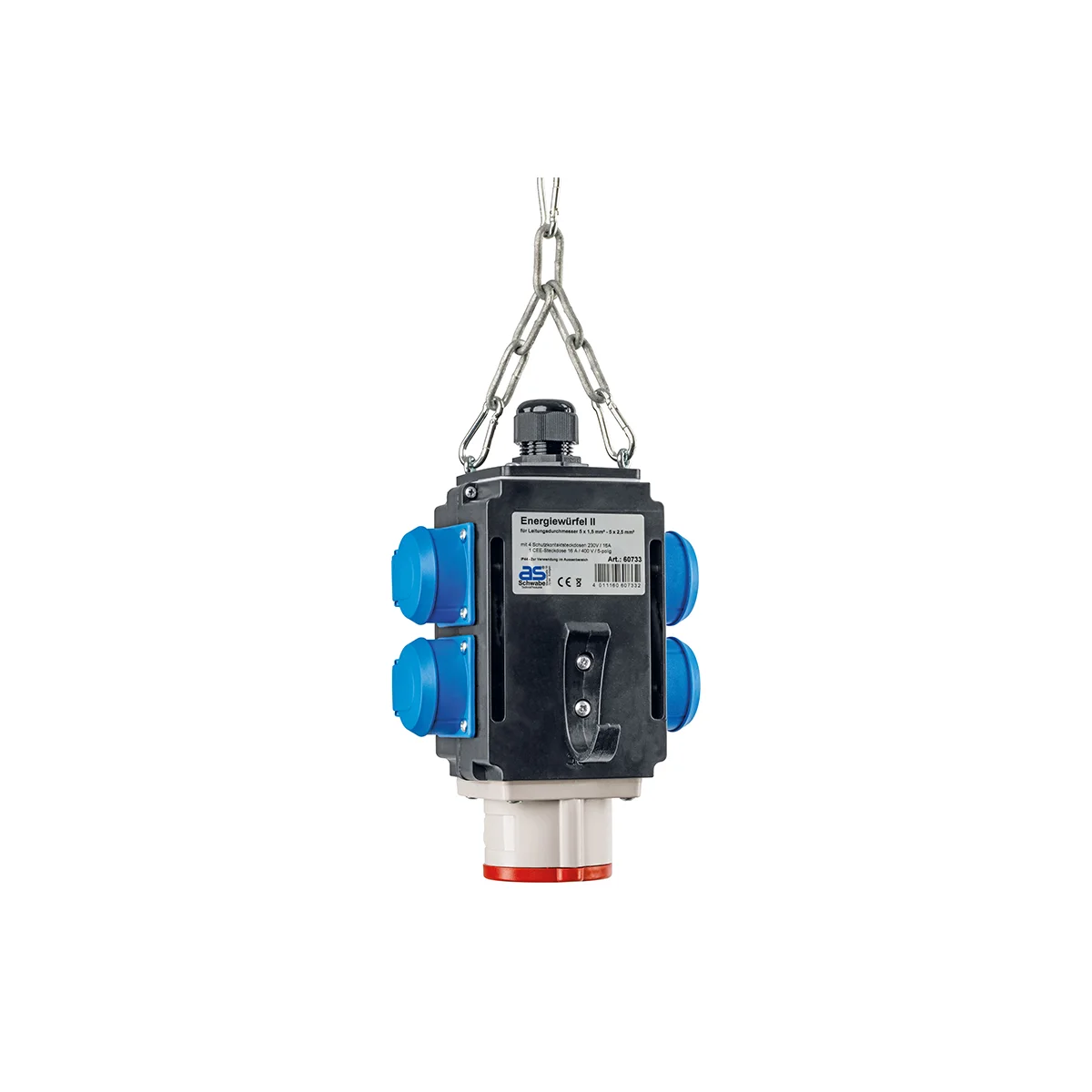

Energy cube II	without	1.3 kg	1	60733

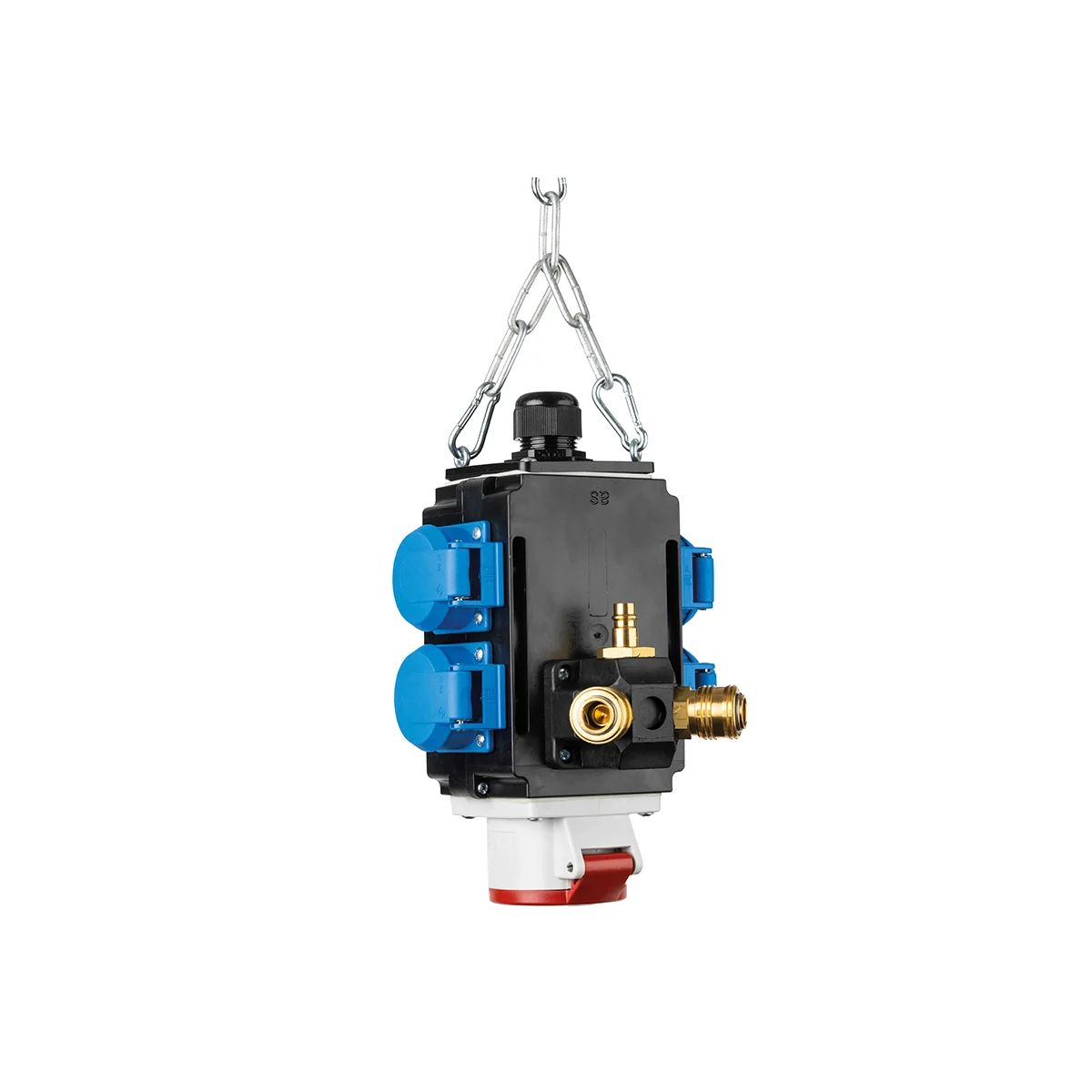

Energy cube II+	with compressed air connection	1.3 kg	1	60734

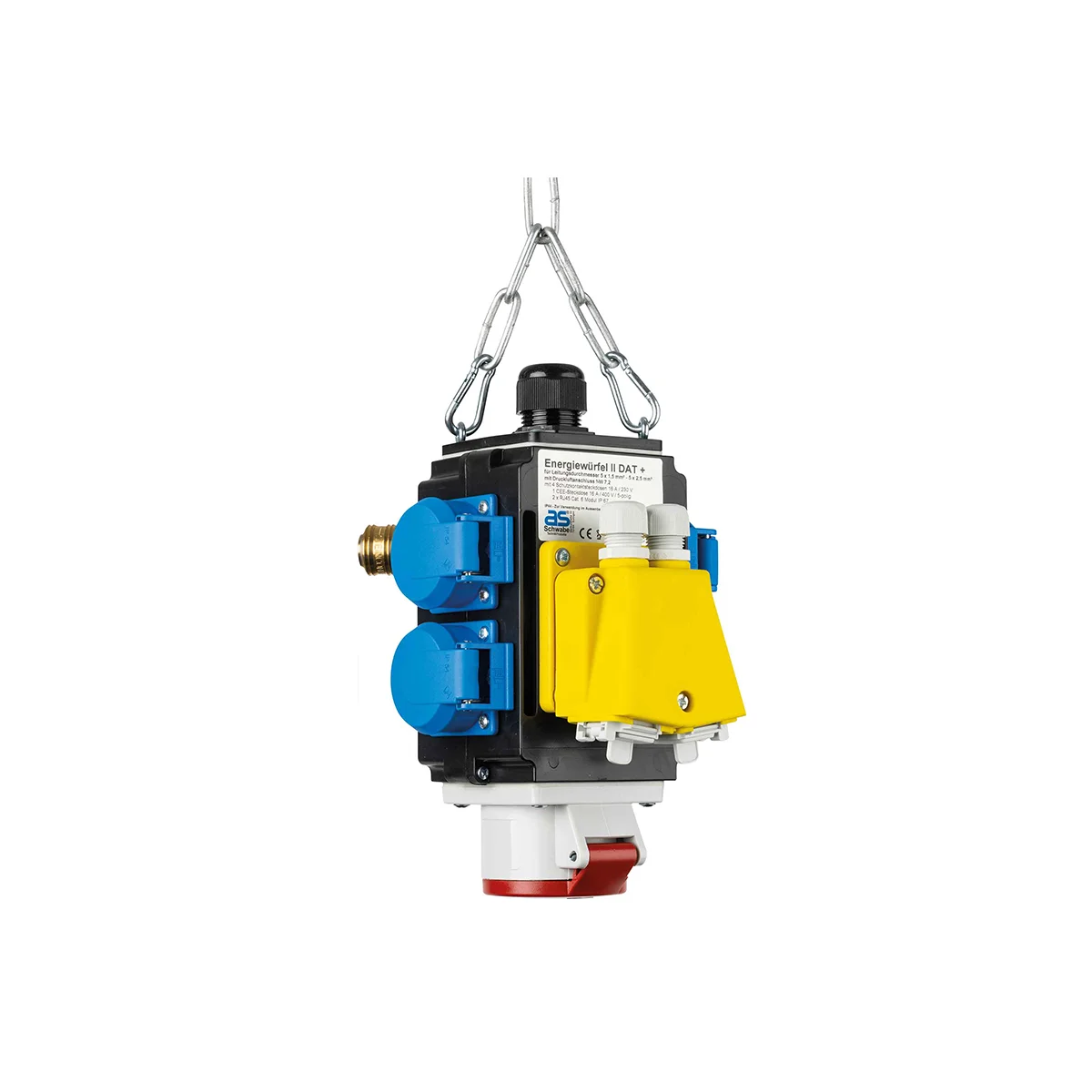

Energy cube II DAT+	with compressed air and data connection	1.4 kg	1	60764

Security
Tested according to DIN VDE 0620, IEC 60309

Technical data
230 V, 16 A

Use
