Opis
Versions
| CEE supply plug | PU | Item no. |
|---|---|---|
| white | 1 | 62470 |
| black | 1 | 62471 |
| anthracite | 1 | 62472 |
Details
| Security |
|---|
|
Tested according to ![[1081]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/IP44_.svg) ![[1085]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/CE_schwarz.svg) |
| Technical data |
|---|
|
230 V, 16 A, 3-pole, 6 h ![[DE]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/Icon_Made_in_Germany.svg){kind=icon} |
| Use |
|---|
![[2]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/as-schwabe-technik-produkte-einsatzgebiet-aussen-icon.svg){kind=icon} |

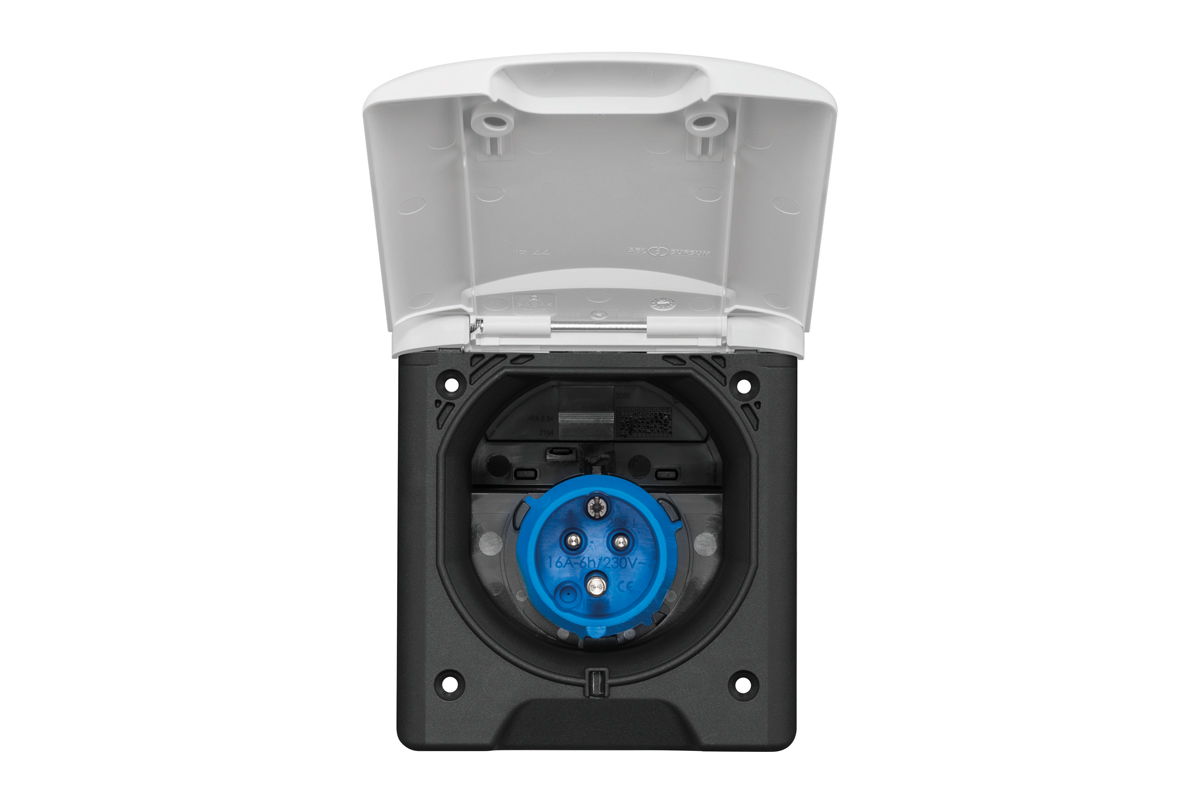

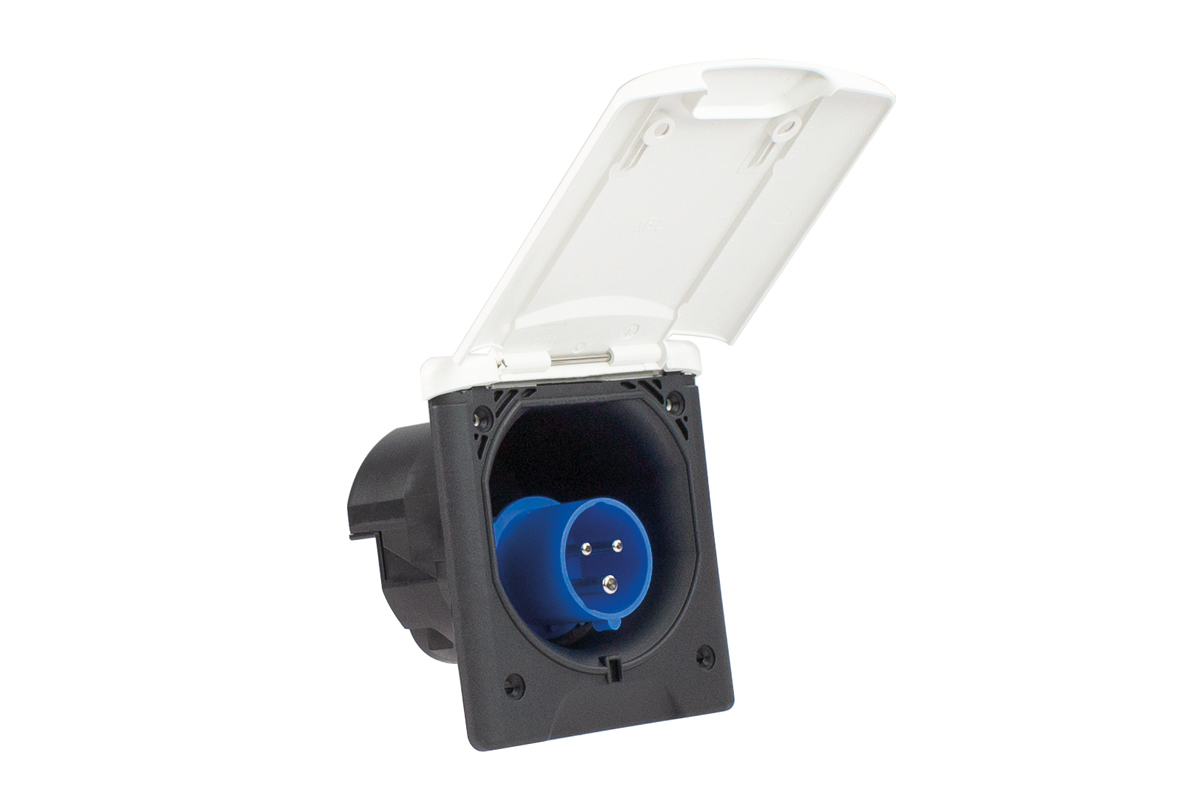

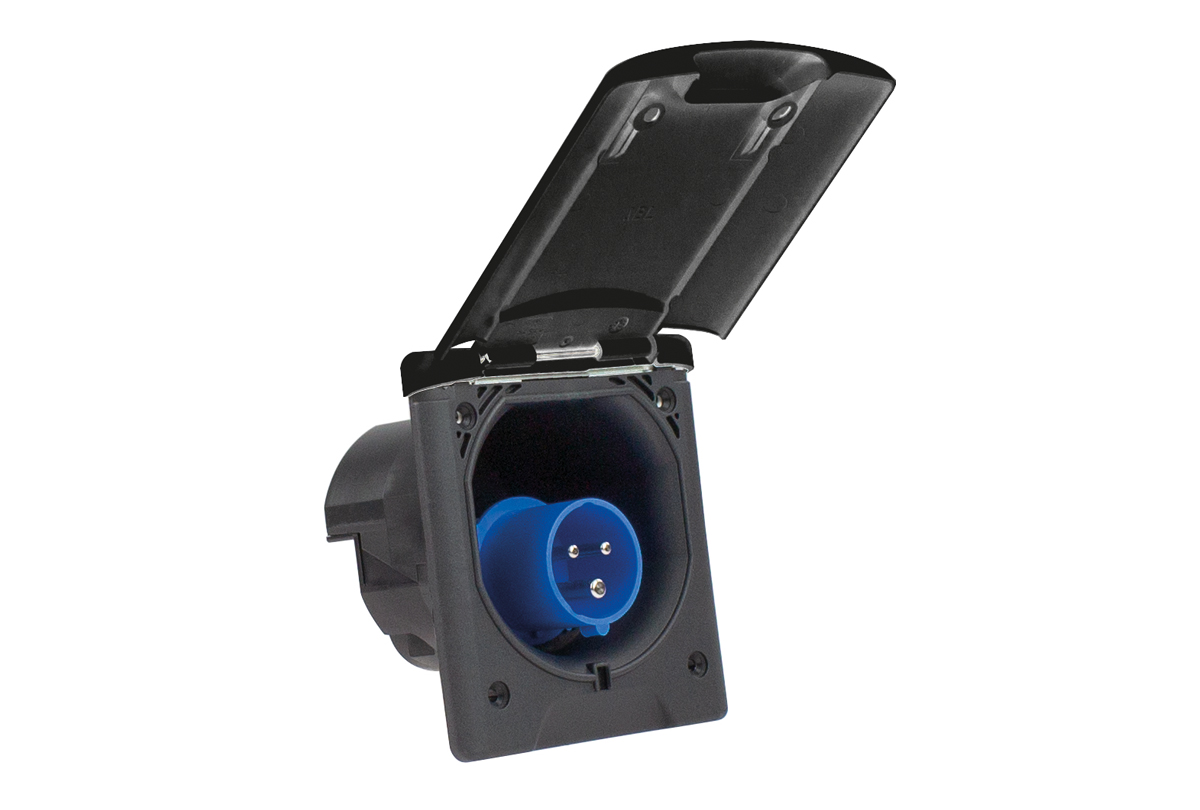

Camping CEE power plug with magnetic catch
- Housing in elegant design with magnetic clasp
- CEE feed plug 230 V, 16 A, 3-pin with hinged cover
- All visible parts made of UV-resistant plastic
- Opening angle of the lid 180°
- Hinged lid with magnetic catch
- High fire protection class 850° C, self-extinguishing plastic
- Large connection room
- Self-opening safety latch (CEE coupling)
- Low installation height

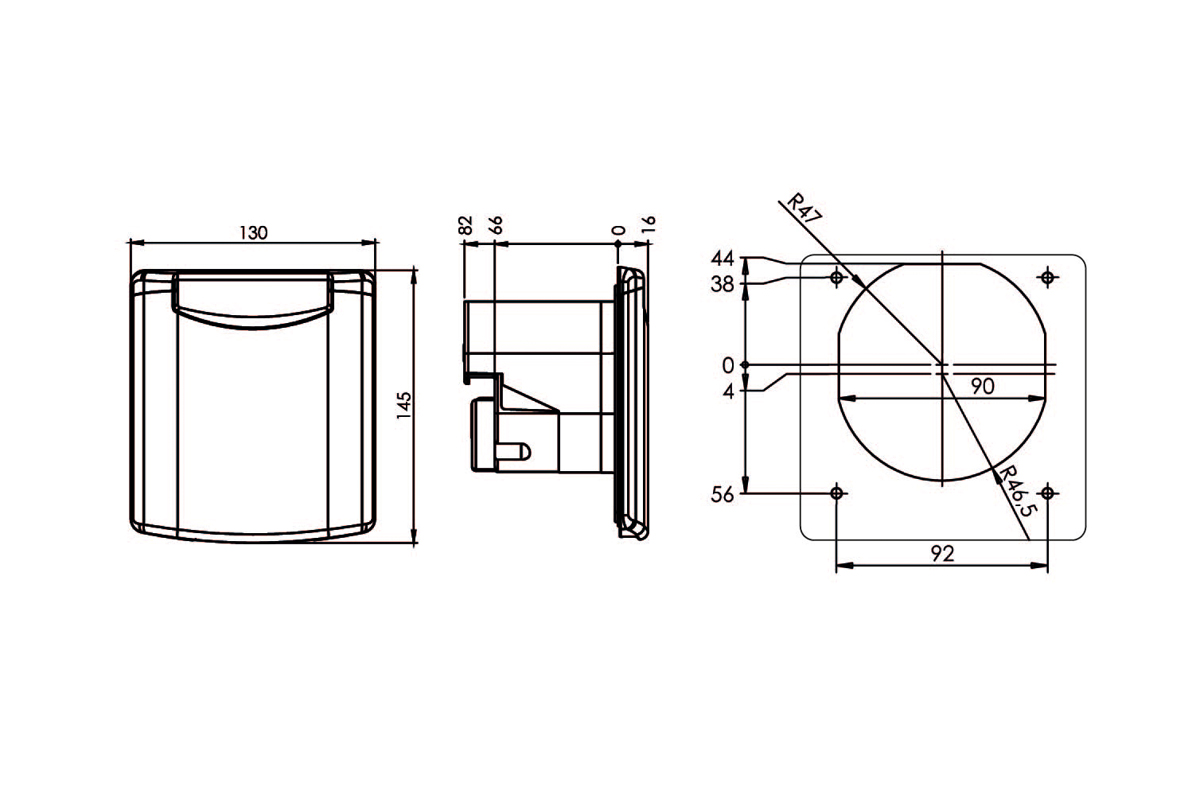

- Flange dimensions HxW in mm: 145×130
- Hole spacing HxW in mm: 94×92
- Installation depth in mm: 82
- CEE 230 V, 16 A, 3-pole, 6 h
- IP44: protected against foreign bodies and splash water
