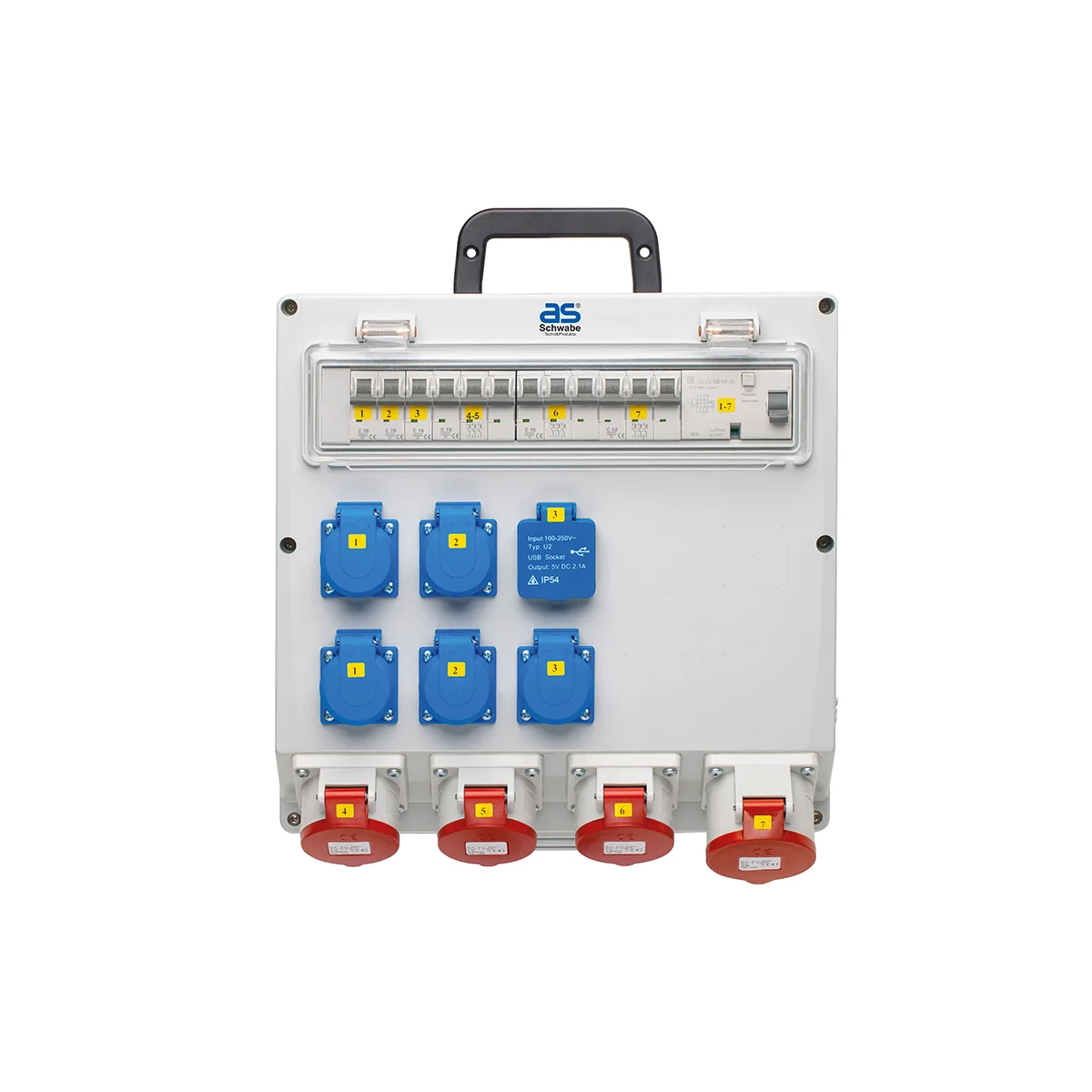

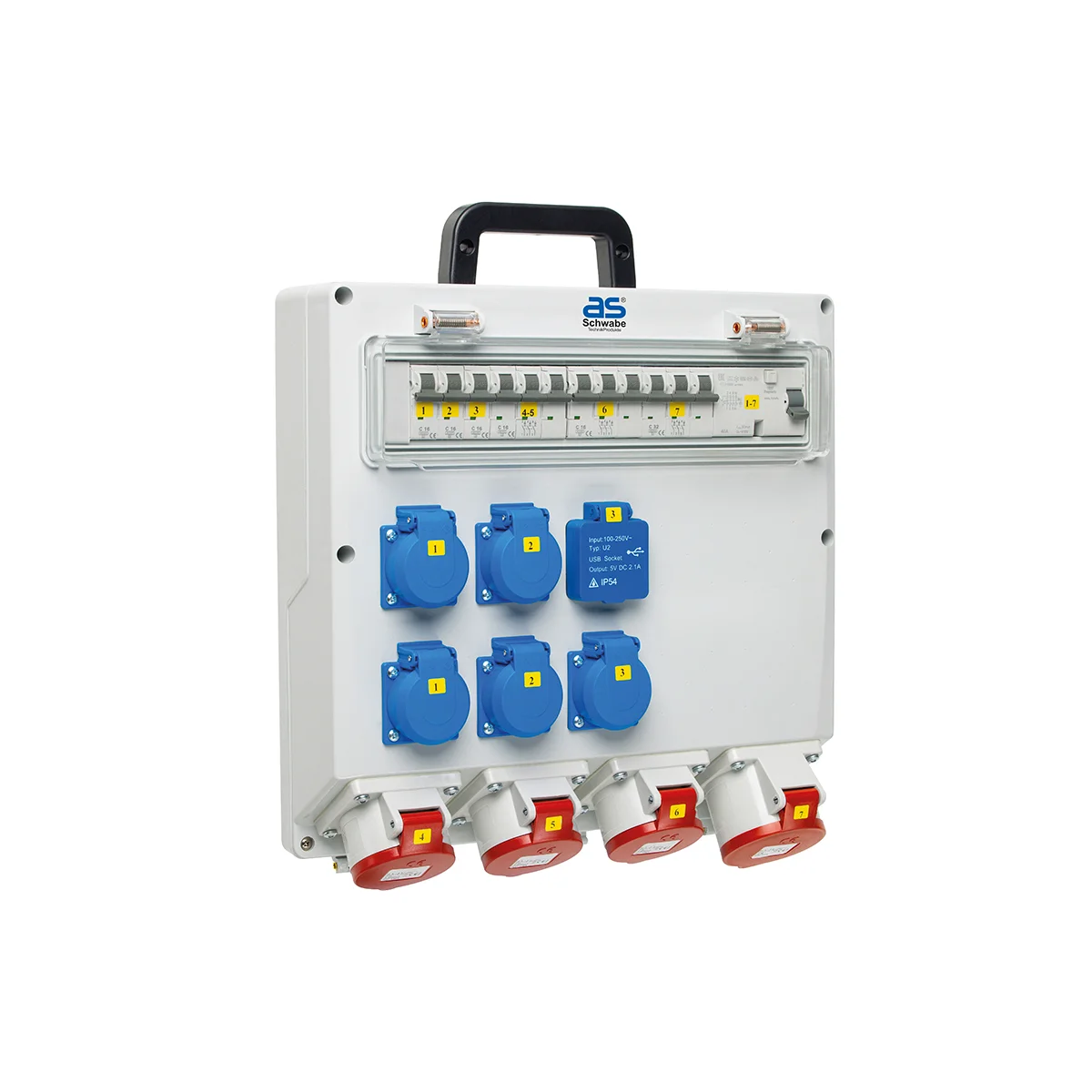

Wall distributor FIXO 14D MAX

Categories: , , SKU: 61525
  • Main line branch terminal: To ensure a long-term and reliable electrical installation, a high-quality, solid terminal has been installed.
  • All models are wired ready for connection. Hinges on the cover ensure that it can be opened when connected and does not simply hang down.
  • Entrance
    Prepared for fixed connection of NYM-J up to max. 5×10
    Two knockouts for universal cable entries including stepped nipples for sealing.
  • Output
    5 x 230 V, 16 A socket outlets with earthing contact (two each distributed over one phase)
    3 x CEE socket outlet 400 V, 16 A, 5-pin
    1 x CEE socket outlet 400 V, 32 A, 5-pin
    2x USB ports 5 V / 2.1 A
  • Protection
    1 × RCD 40 A, 4-pole, 30 mA, type A
    3x LS C 16 A, 1-pole
    2x LS C 16 A, 3-pole
    1x LS C 32 A, 3-pole

Opis

FIXO wall distributor
Prepared for permanent connection of cables

  • Robust housing made of highly break-resistant special plastic including carrying handle
  • Compact design ideal for wall mounting
  • with high-quality, solid main line branch terminal for electrical installation
  • Including two stepped nipples to seal the pipe
  • Housing dimensions FIXO MAX: 370x375x118 mm

Versions

FIXO 14D PU Item no.
Prepared for fixed connection of NYM-J up to max. 5×10 1 61525

Details

Security

Tested according to
DIN EN 61439-3

[1081][1085]
Technical data
400 V, 32 A, 5-pole
Use
[1][2]

Wall distributors in various designs
The power distributors in the FIXO series are designed for wall mounting and are available in several configurations. Depending on the FIXO model, different socket outlets for earthing contact, CEE and/or USB plugs are installed in different numbers. All sockets have self-closing hinged lids.

Protection
The sockets are protected by residual current circuit breakers and miniature circuit breakers. All fuse switches are installed behind a self-closing hinged window made of transparent plastic, visible and accessible at all times.

Two connection variants
FIXO wall distributors are available in two connection variants. Ready-to-use models have a surface-mounted plug for direct power connection. The second variant of FIXO wall distributors is prepared for the fixed connection of NYM cables.

Use in damp rooms
All models are protected against foreign bodies and splash water and fulfil protection class IP44. This means that
They are ideally suited for use in workshops, garages, halls or cellars. All FIXO models are suitable for both indoor and outdoor use.

Mounting on the wall

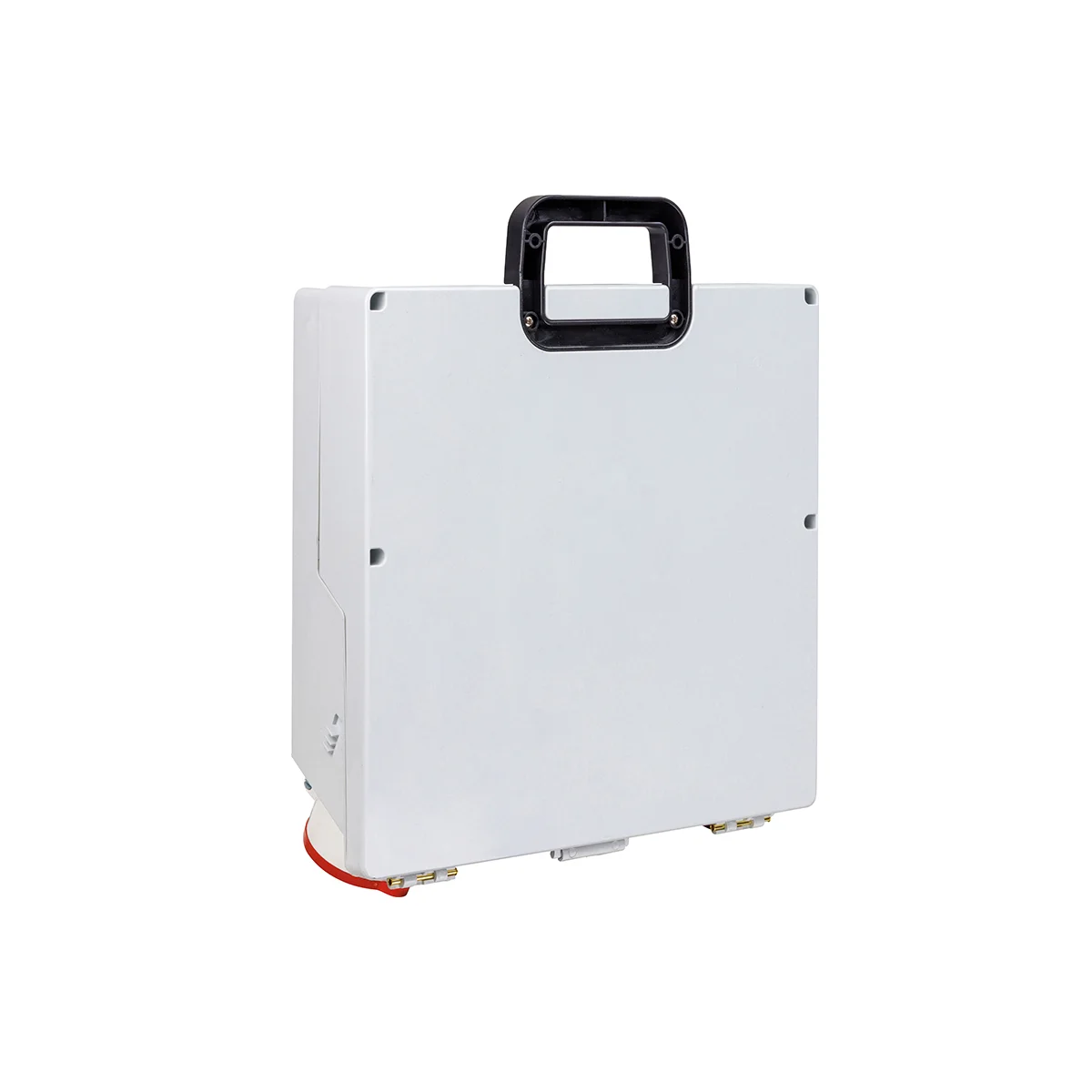

For permanent use, the distributor is permanently mounted on the wall. Markings for drill holes on the back of the housing make installation easier. For temporary use, the distributor can alternatively be screwed to the wall using the holes in the handle.

FIXO - Information brochure
