Opis
Versions

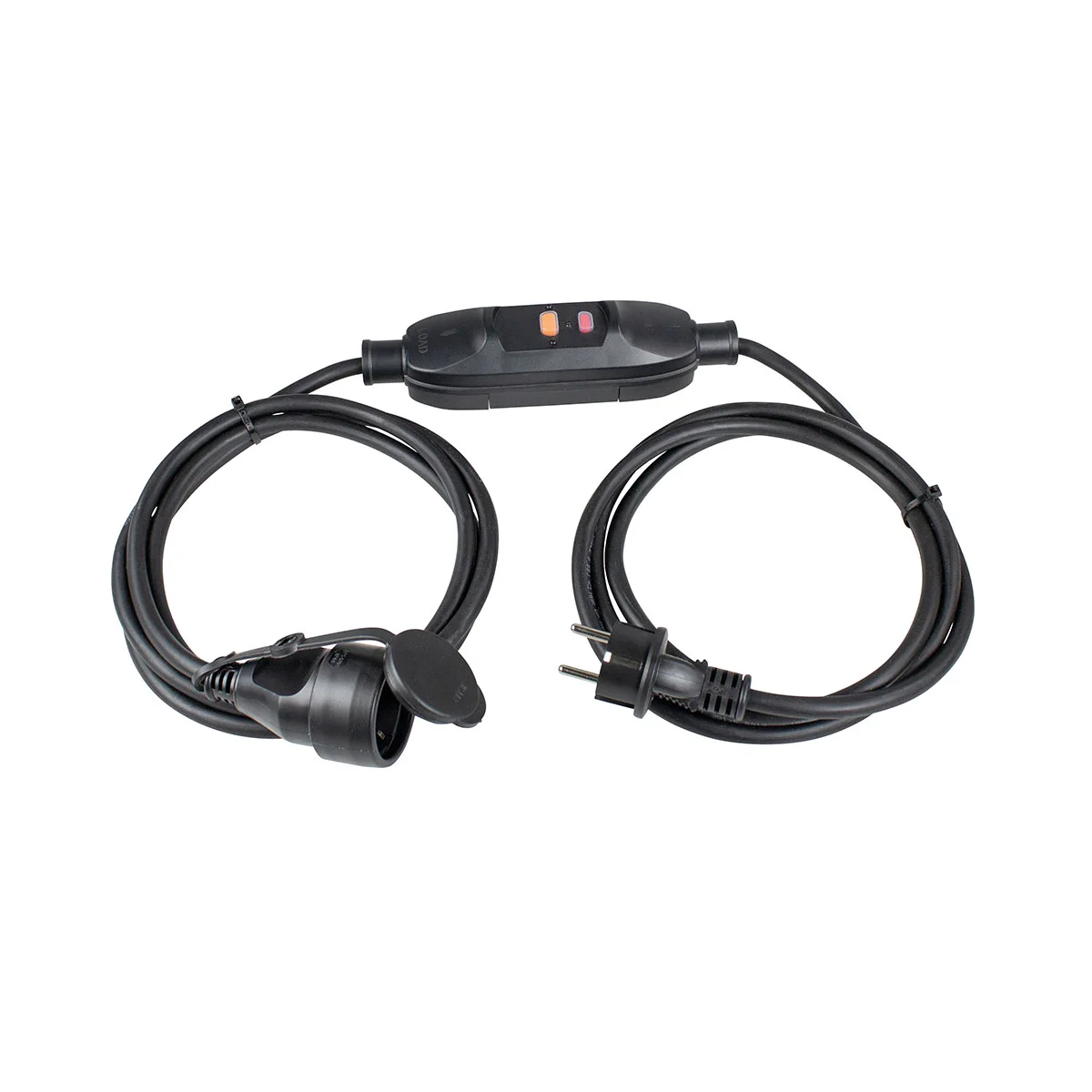

| PRCD extension cable | PU | Item no. |
|---|---|---|
| 2 x 1.5 m H07RN-F 3G1.5 | 1 | 45222 |
Details
| Security |
|---|
|
Tested according to ![[1081]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/IP44_.svg) ![[1085]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/CE_schwarz.svg) |
| Technical data |
|---|
|
230 V, 16 A, max. 3.5 kW ![[DE]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/Icon_Made_in_Germany.svg){kind=icon} |
| Use |
|---|
![[1]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/as-schwabe-technik-produkte-einsatzgebiet-gewerbe-icon-1.svg){kind=icon} ![[2]](https://as2025.as-schwabe.de/wp-content/uploads/2024/12/as-schwabe-technik-produkte-einsatzgebiet-aussen-icon.svg){kind=icon} |
What is the difference between a PRCD and a PRCD-S?
The PRCD is a portable personal protection switch with an electronic residual current release and undervoltage release.
- It recognises residual currents that occur, for example, when a faulty electrical appliance is touched and interrupts the current so quickly that life-threatening accidents can be prevented.
- It also has an undervoltage release that switches off in the event of a mains voltage failure to prevent secondary accidents.
The PRCD-S is an all-pole switching, portable residual current device with electronic residual current evaluation, designed as an intermediate cord device.
Additional functions compared to the PRCD:
- Check the socket outlet to ensure that phase L, neutral conductor N and protective conductor PE are present, correctly connected and not reversed.
- Only allows power to be drawn from a safe socket.
- Checks the protective conductor when switching on.
- Monitors the protective conductor during operation.
- Cannot be switched on if a fault is detected.
- Switches off automatically as soon as a fault occurs (e.g. protective conductor breakage).
- Does not switch off if external voltage is applied to the protective conductor, e.g. by drilling into a
- External line. As the PRCD-S does not switch off in this case, the upstream protective device can respond and interrupt the circuit.
The employers' liability insurance associations recommend As a supply point on small construction sites Protective distribution boards and portable protective devices with protective conductor monitoring (PRCD-S)!
