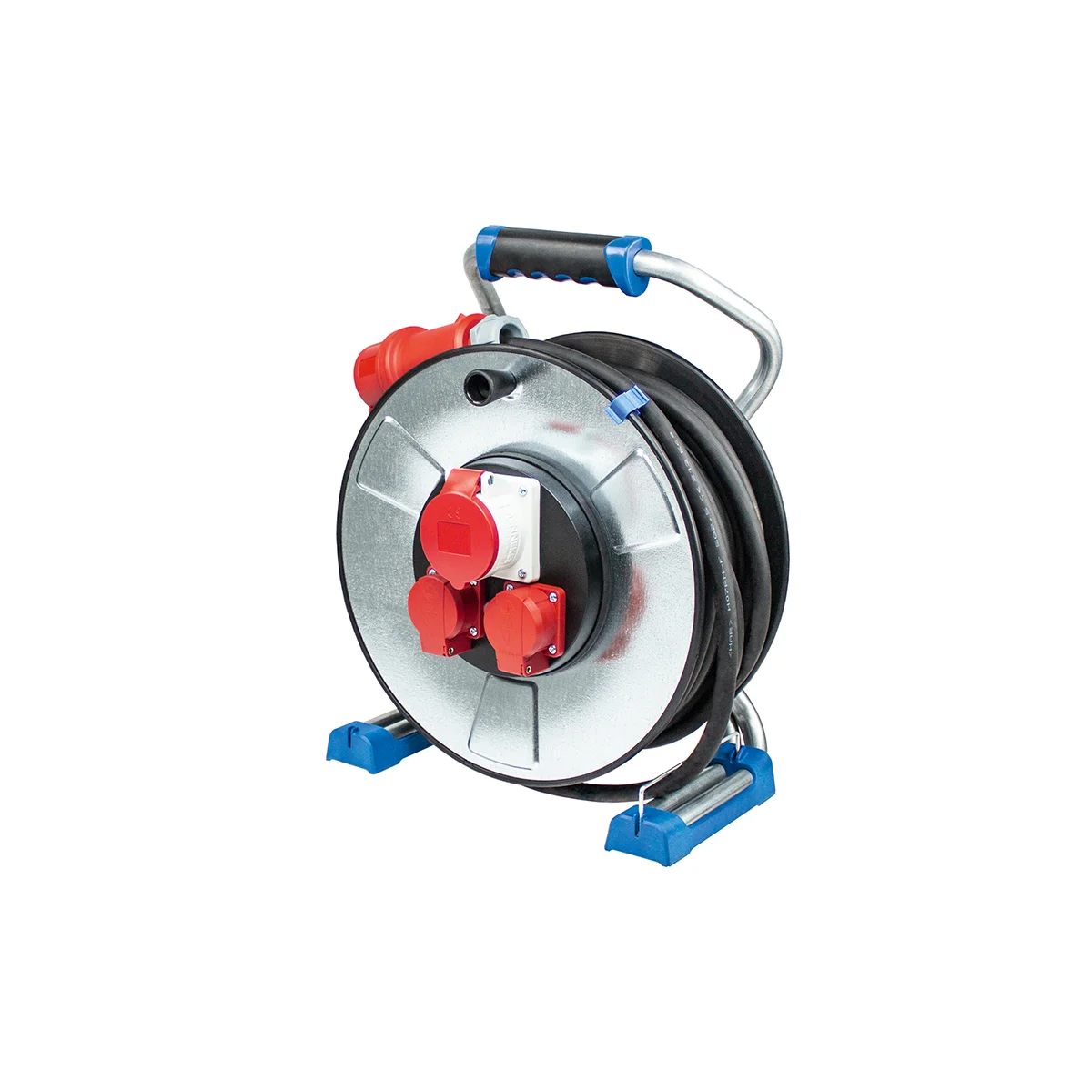

IronCoat Xperts CEE cable reel

Categories: , , SKU: 23999 Tags: ,
Brand:
  • Drum body made of hot-dip galvanised sheet steel with special protective insulation

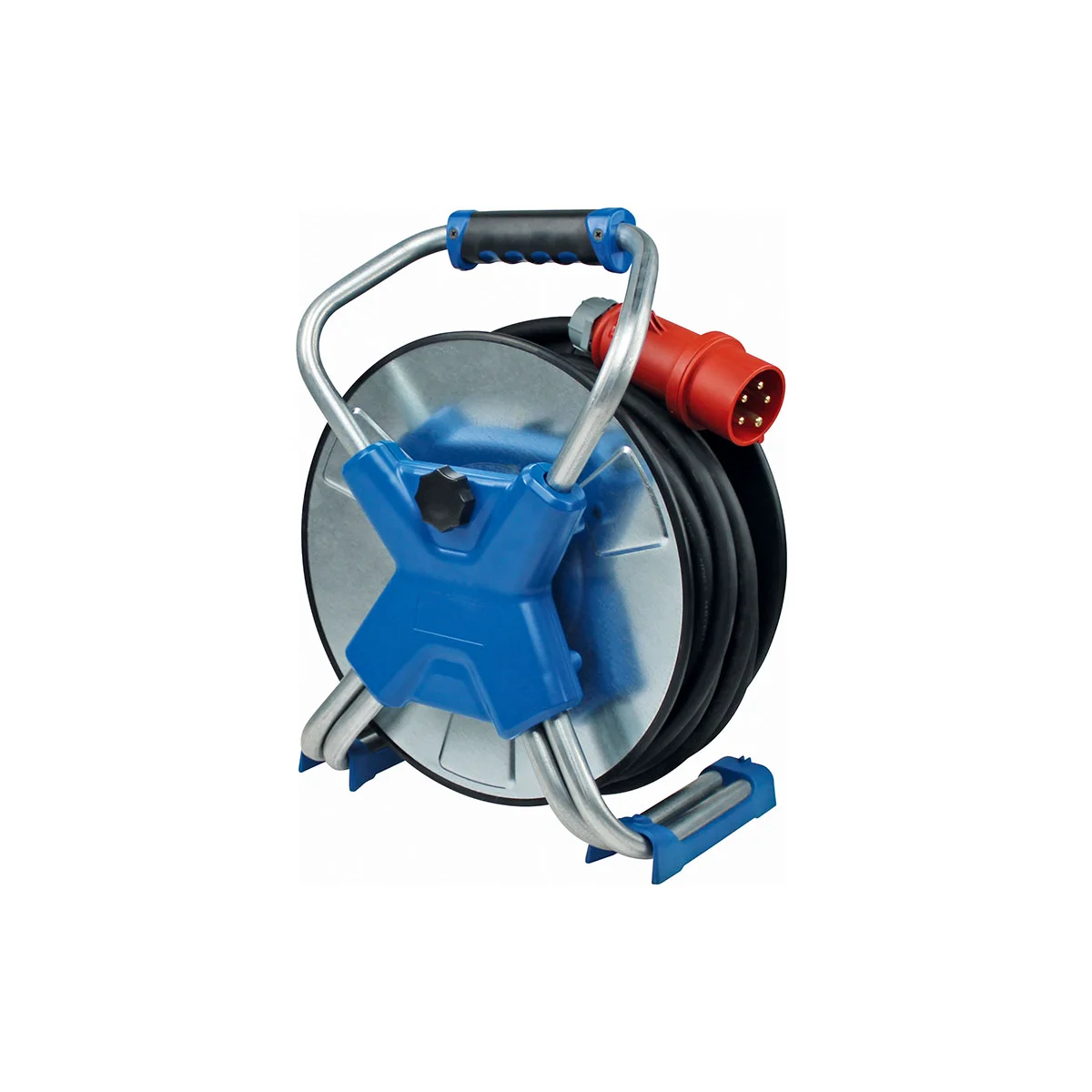

  • with sturdy, shock-absorbing X-double tube frame with star grip brake: You can find an overview of our innovative Xperts cable reels here here.
  • with ergonomic, non-slip 2-component handle and cable guide
  • with heavy rubber cable H07RN-F
  • with CEE plug 400 V, 16 A, 5-pin
  • with 2 230 V protective contact sockets with safety hinged lids and hammer mark and 1 CEE socket 400 V, 16 A, 5-pin
  • with built-in thermal circuit breaker
  • IP44: protected against foreign bodies and splash water
  • IronCoat metal cable reels have been tested by the DGUV (German Social Accident Insurance) and fulfil the requirements of GS-ET 35 / BGI 608, making them ideal for professional use on construction and assembly sites.

Opis

IronCoat metal cable reels combine the advantages of a classic sheet steel cable reel with improved protection against dangerous contact voltages. The special patented protective insulation of the side parts protects against electric shocks caused by defective cable harnesses when the cable is rolled up. This means that no current can be passed from the inside to parts of the cable reel that can be touched over a large area, which guarantees protection against serious damage to health.

Further information can be found here

Versions

Xperts IronCoat CEE metal cable reel ø mm PU/pallet Item no.
25 m heavy-duty rubber hose cable H07RN-F 5G2.5 320 1/40 23999

Details

Security

Tested according to:
EN 61242
DIN VDE 0620-2-1
DIN EN 50525-2
IEC 60309

DGUV test certificate

[1081][1085][1243][1245][1246][1369]
Technical data

400 V, 16 A, max. 10 kW

[DE]
Use
[1][2][3]
