Energyline XL LED floodlight for large areas

Categories: , SKU: 46211,46212,46213
  • Premium large-area floodlight for robust applications on construction sites
  • with robust, adjustable bracket suitable for mounting on cranes etc.
  • Extremely impact-resistant aluminium housing: IK08
  • Polycarbonate diffuser disc with lenses for better light distribution
  • Particularly efficient heat dissipation thanks to the special surface design of the rear of the housing
  • Extremely long-lasting high-performance LEDs with a service life of over 60,000 hours
  • Colour rendering: CRI > 80
  • Beam angle: 90°
  • 140 lm/W
  • Connection: 230 V/50-60 Hz
  • IP66: dust and waterproof for outdoor use

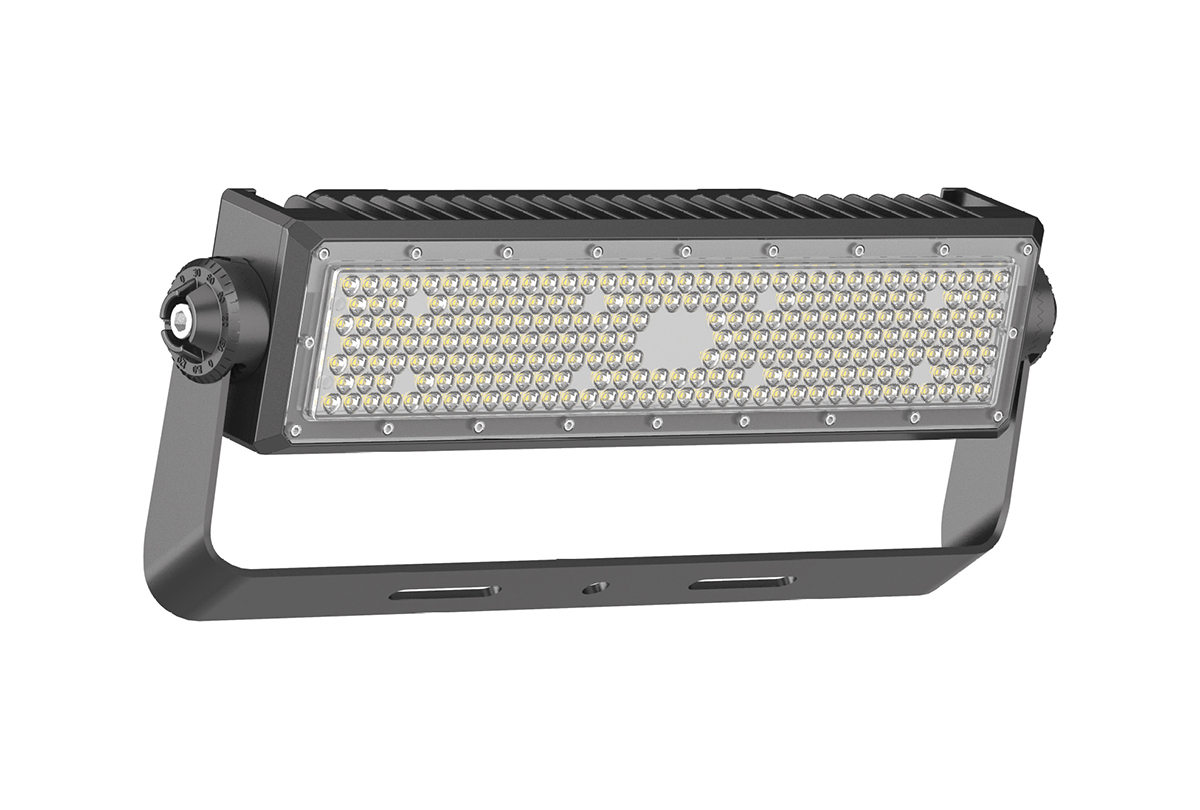

200 Watt (art. no. 46211)

  • 4,5 m Rubber cable H07RN-F 3G1.5 with earthing contact plug

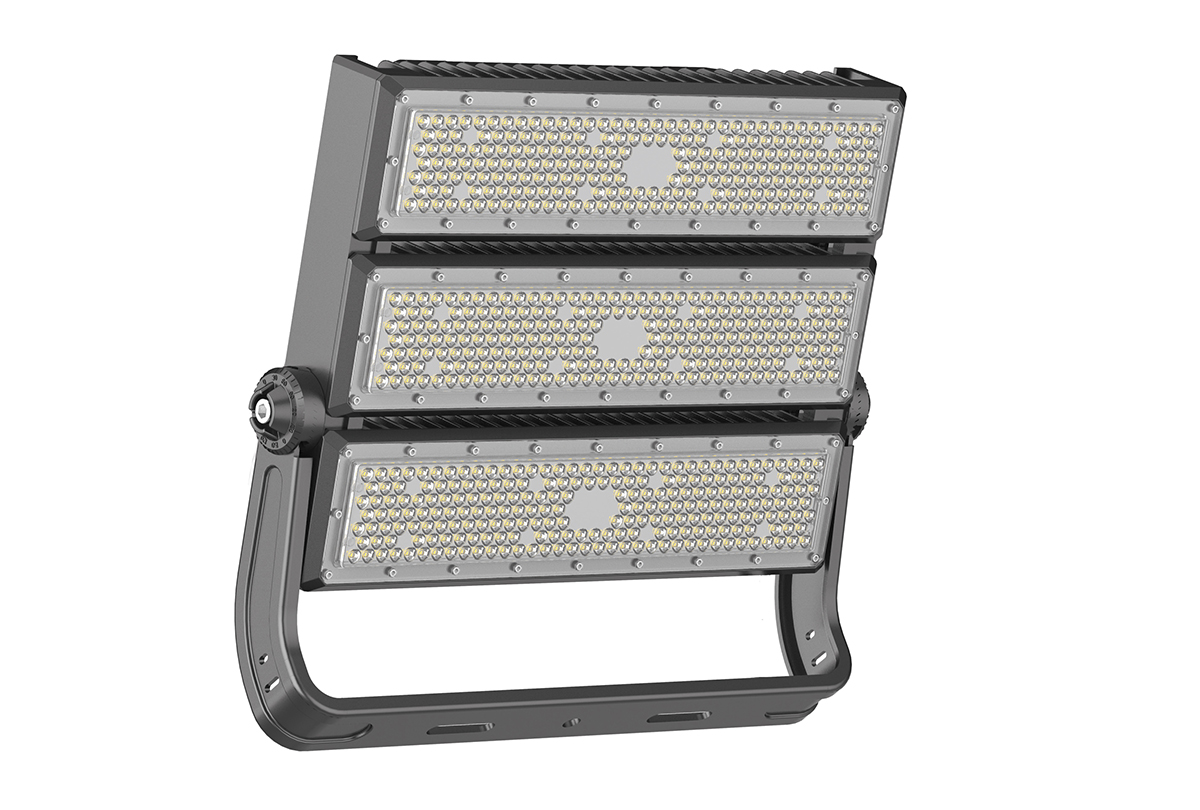

600 watts (art. no. 46212)

  • 10 m Rubber cable H07RN-F 3G1.5 with earthing contact plug

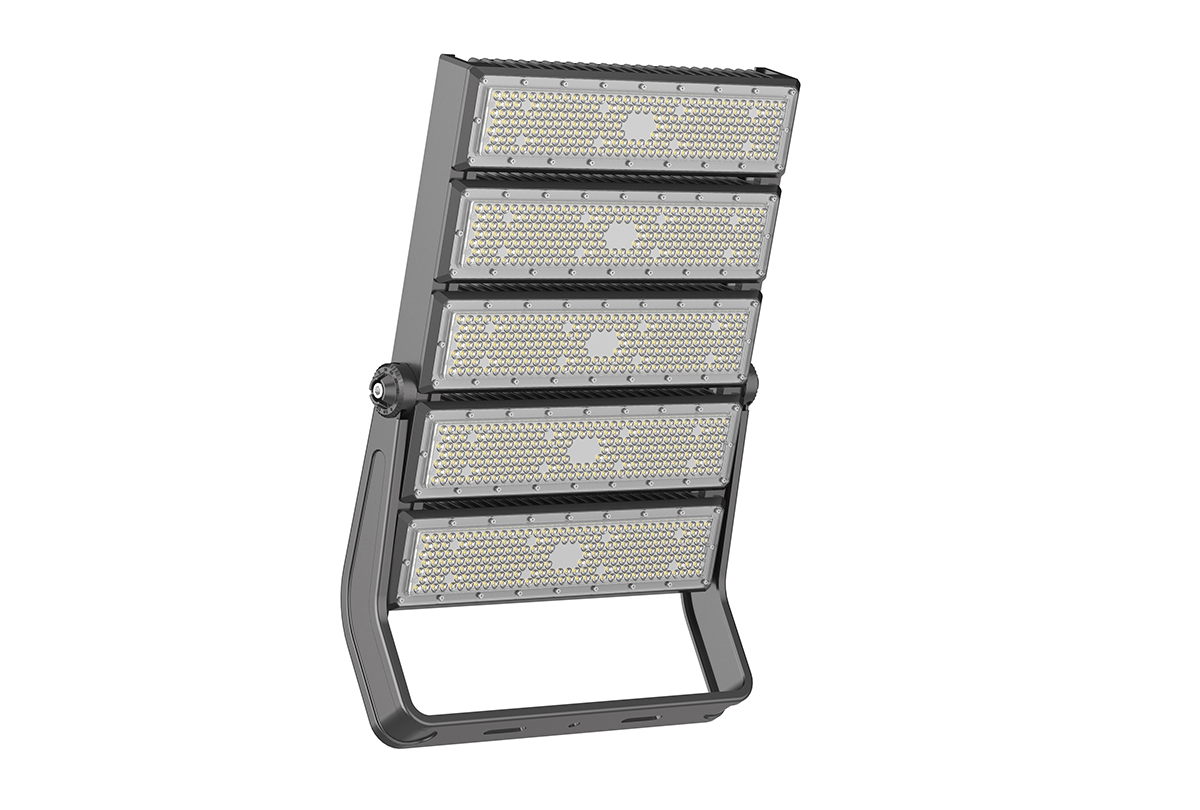

1000 Watt (art. no. 46213)

  • 25 m Rubber cable H07RN-F 3G1.5 with earthing contact plug

Opis



Versions

Model Light output Colour temperature PU Item no.
200 watts approx. 28,000 lumens 4,000 K (neutral white) 1 46211
600 watts approx. 84,000 lumens 4,000 K (neutral white) 1 46212
1000 Watt approx. 140,000 lumens 4,000 K (neutral white) 1 46213

Details

Security
nan
[1085][1583]
Technical data
Connection: 230 V/50-60 Hz
Use
[1][2][3]

LED technology

LEDs are tiny electronic chips made from special Semiconductor compounds. If current flows through this solid, it begins to glow, it "emits" light. In lighting technology, this process is called "electroluminescence". With an edge length of around one millimetre, LEDs are among the smallest available light sources. They radiate an almost punctiform light off. Already little energy is sufficient to excite the semiconductors to light up.

Advantages of LED:

  • Very low power consumption (over 90 % less energy consumption compared to halogen lamps)
  • High luminous efficacy without start-up phase
  • Extremely low heat generation
  • Extremely long service life
  • do not contain any hazardous substances such as mercury
