Cable bridge 2 channel

2 channel MAXI straight

serve to protect lines, cables, hoses and pipes on the construction site
Cable bridges make it easier to cross the laid cables and prevent tripping accidents on the construction site
Made of non-conductive, robust solid rubber in black/yellow signal colour
Extremely slip-resistant surface thanks to solid rubber and surface structure
Material is UV and highly heat resistant as well as acid and alkali resistant
Very stable support on the substrate due to the high dead weight of the cable bridges
Suitable for heavy goods vehicles up to 10 t or 20 t axle load, max. crossing speed 10 km/h
Simple plug-in system enables unlimited extension of the cable bridges

Opis

2 Channel	Dimensions L x W x H (mm)	Channel size per channel (mm)	Connecting spigot integrated	Weight (kg)	PU	Item no.

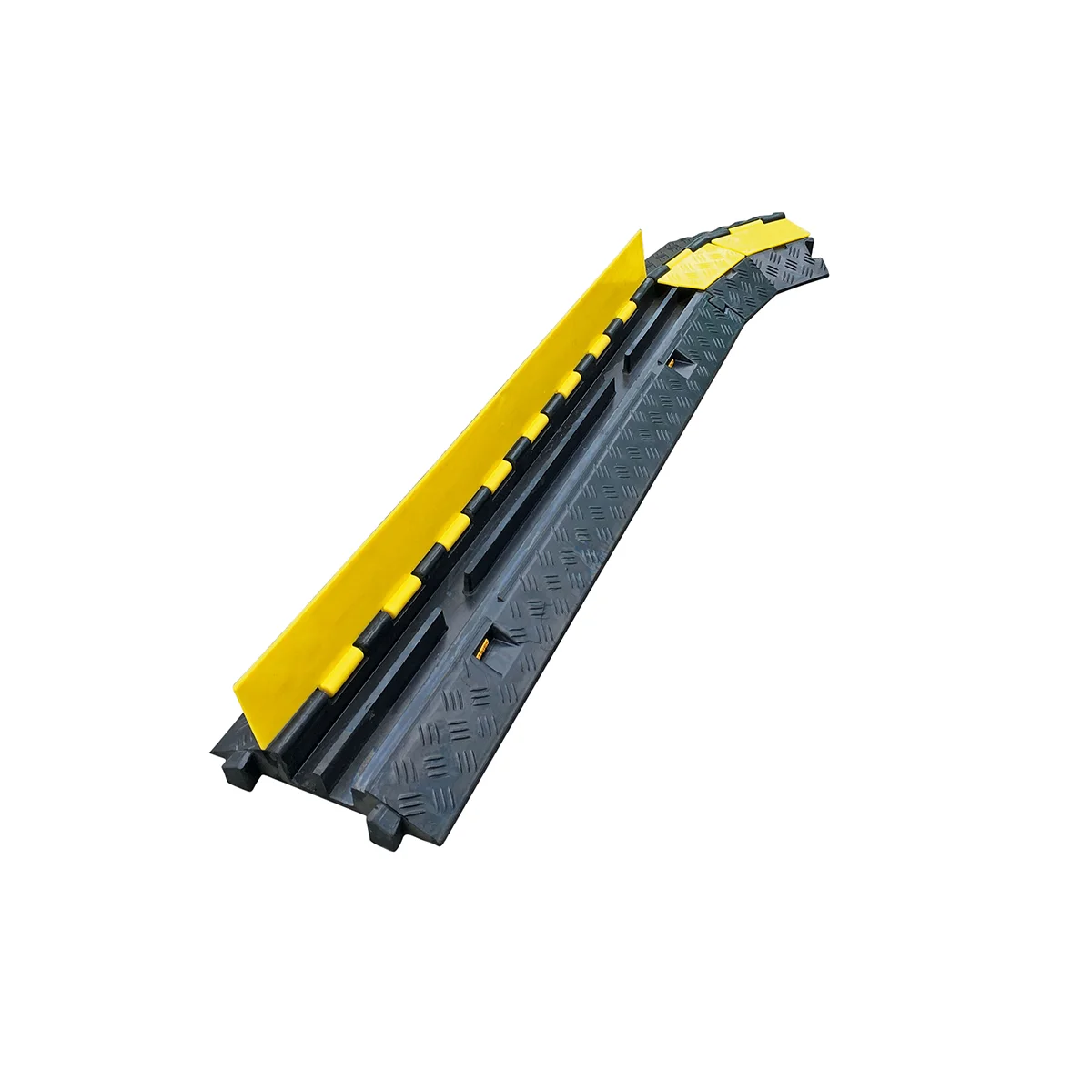

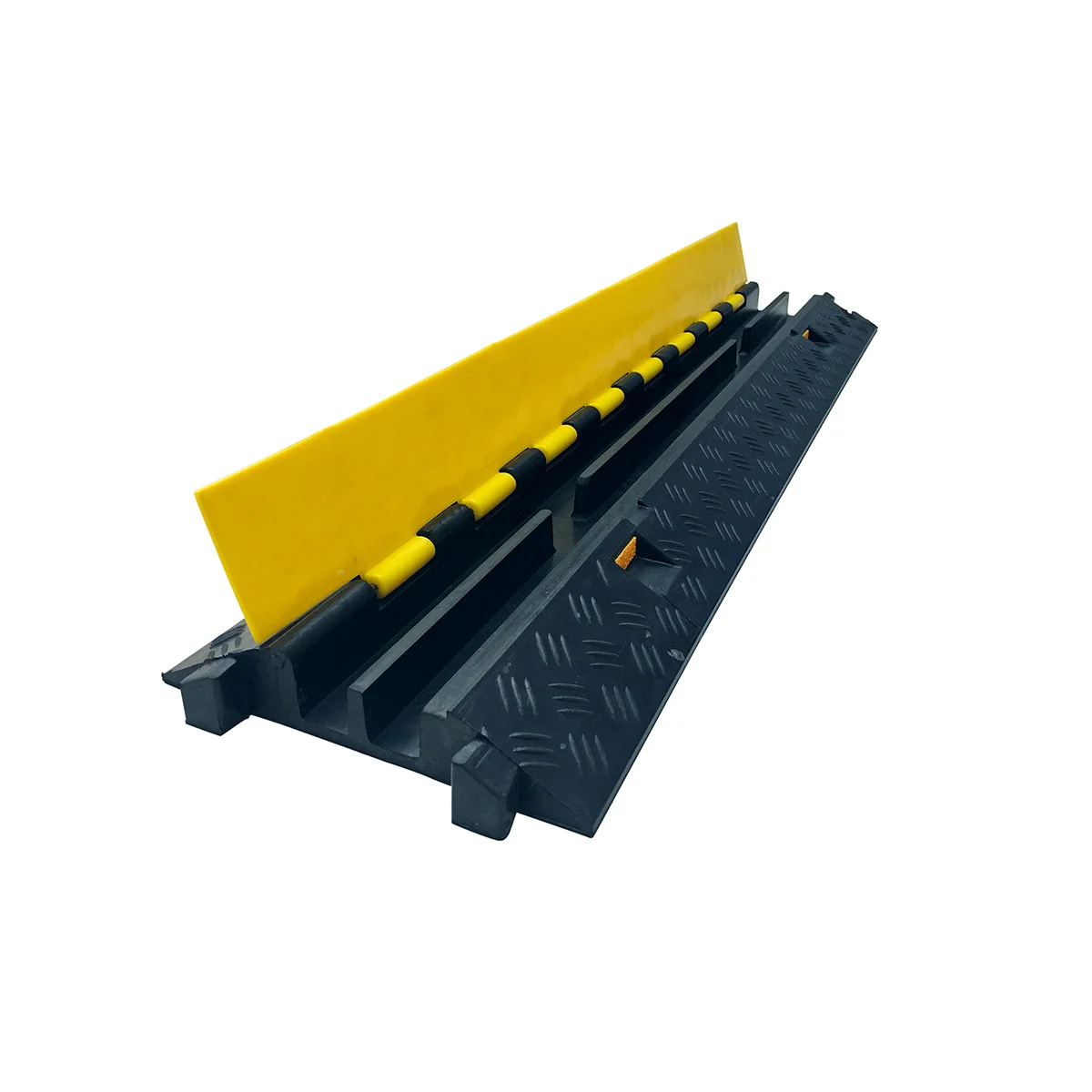

straight	1020 x 245 x 45	32 x 32	Yes	7,5	1	63225

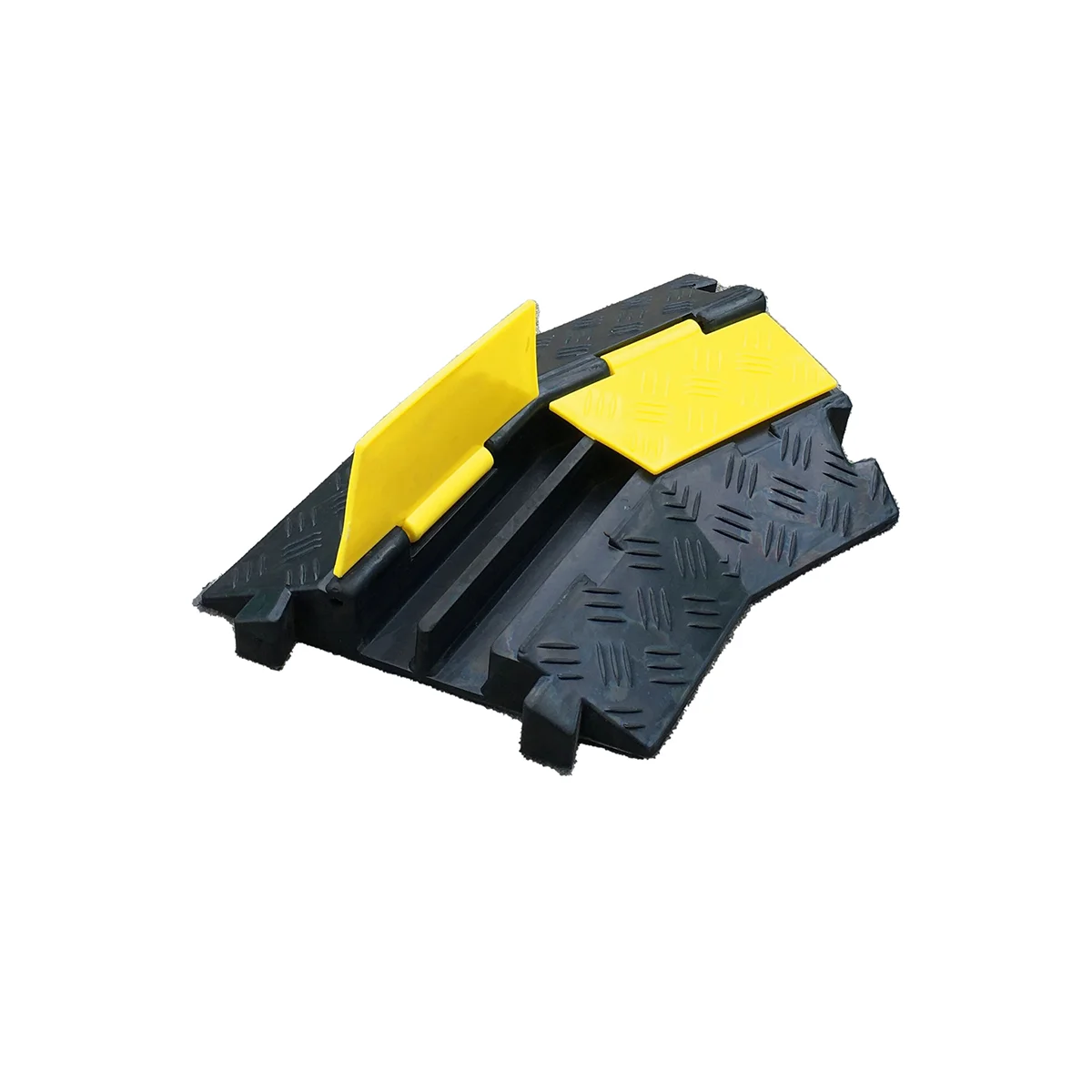

Bend 45°	420 x 245 x 40	32 x 32	Yes	4,0	1	63226

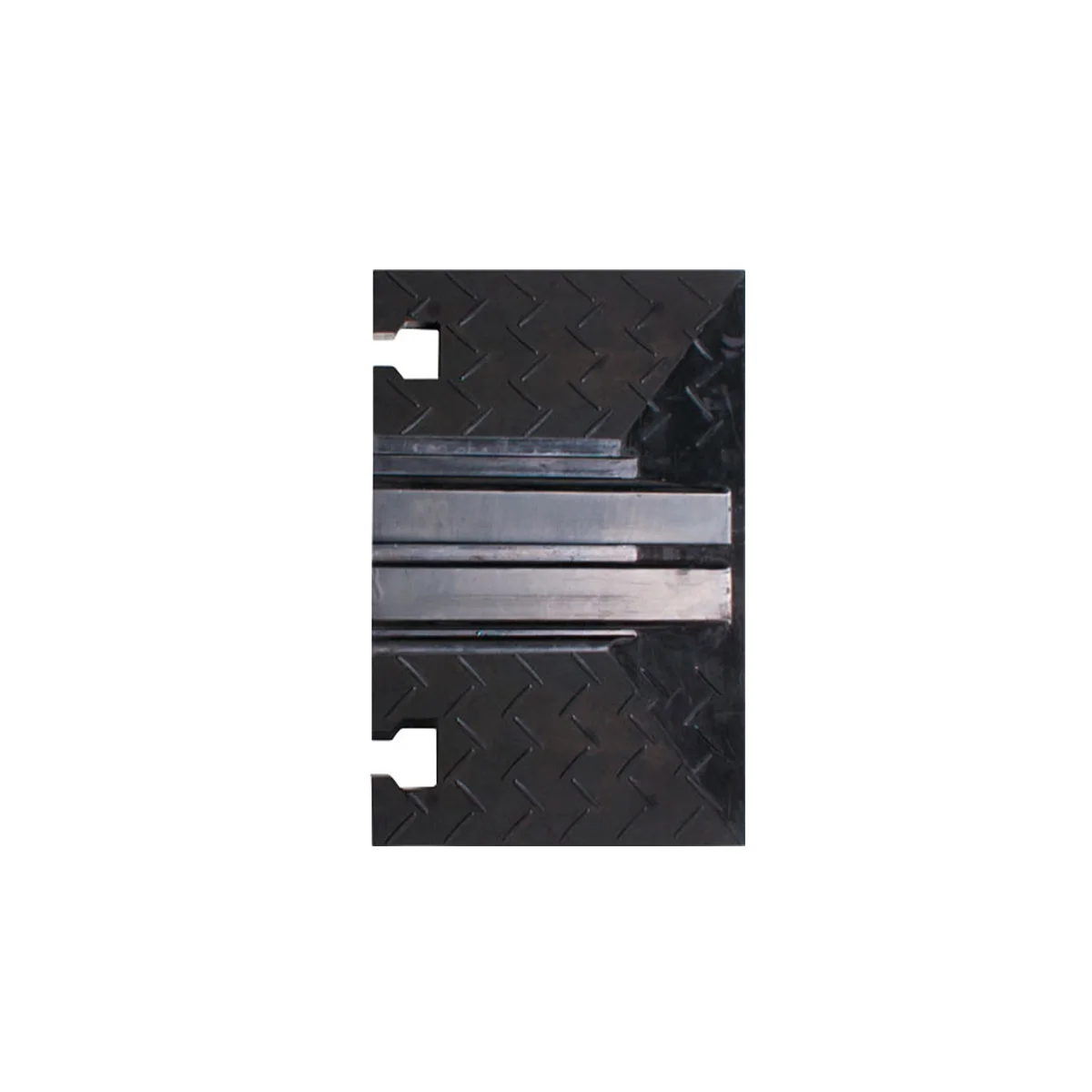

End piece	150 x 245x 40	32 x 32	Yes	2,0	1	63227
