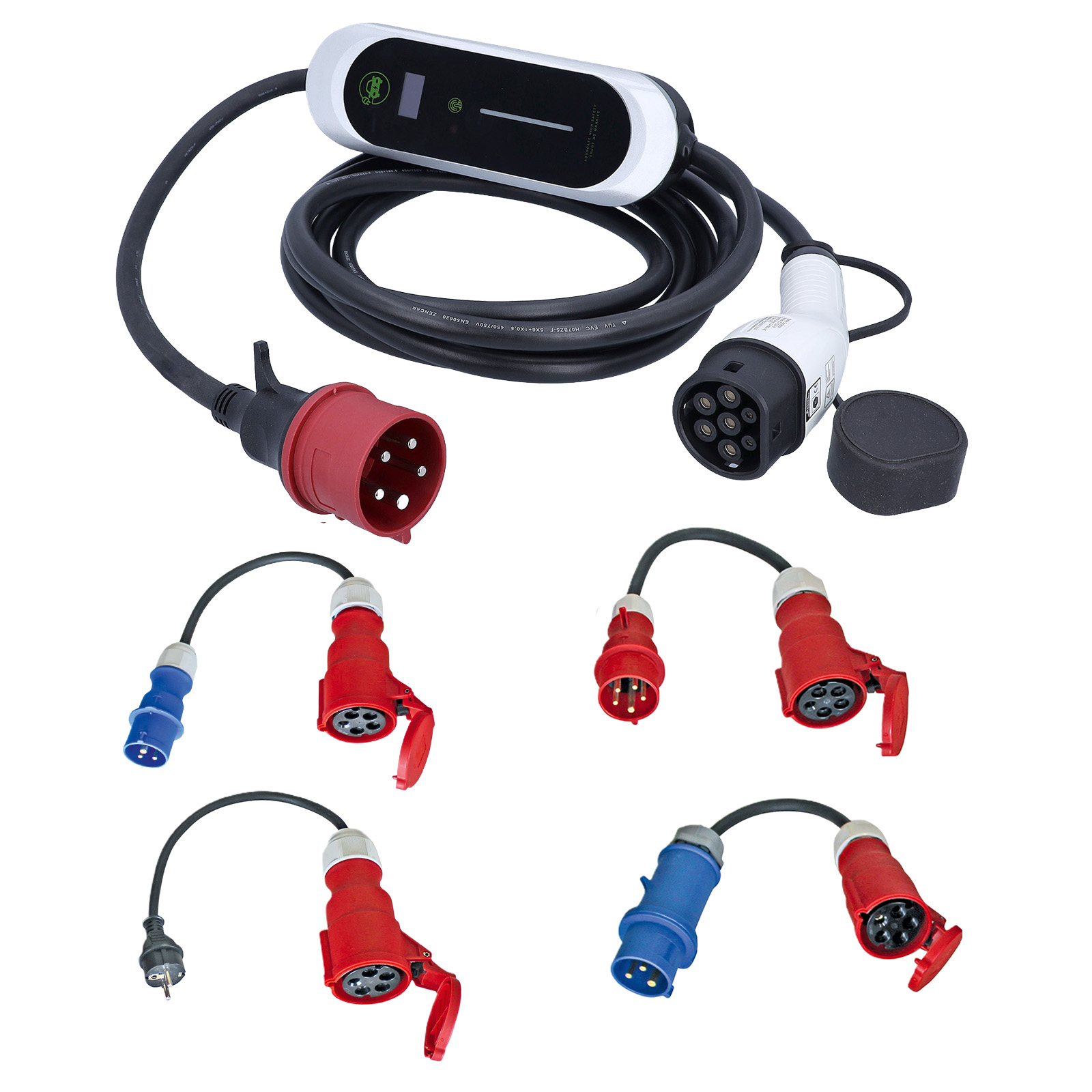

Adapter set "Wishfully happy"

Category: SKU: 61377

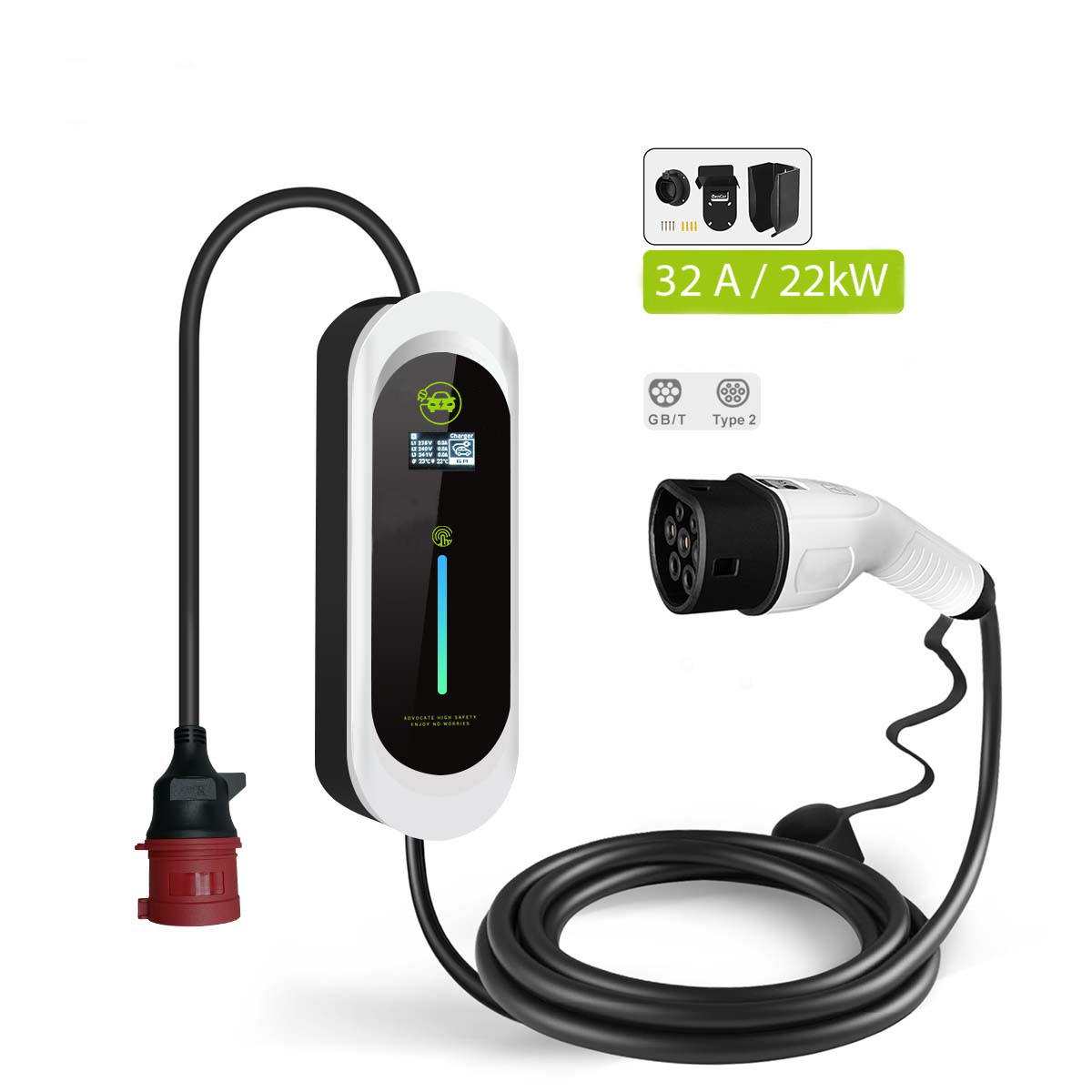

  • Mobile charger electric car mode 2 (Art. 65152)
    CEE 32A plug to type 2, 400 V, max. 32 A 22 kW, charging current adjustable 10 A / 16 A / 20 A / 24 A / 32 A, length 5 m, protection class IP44, operating temperature range -25°C to +50°C

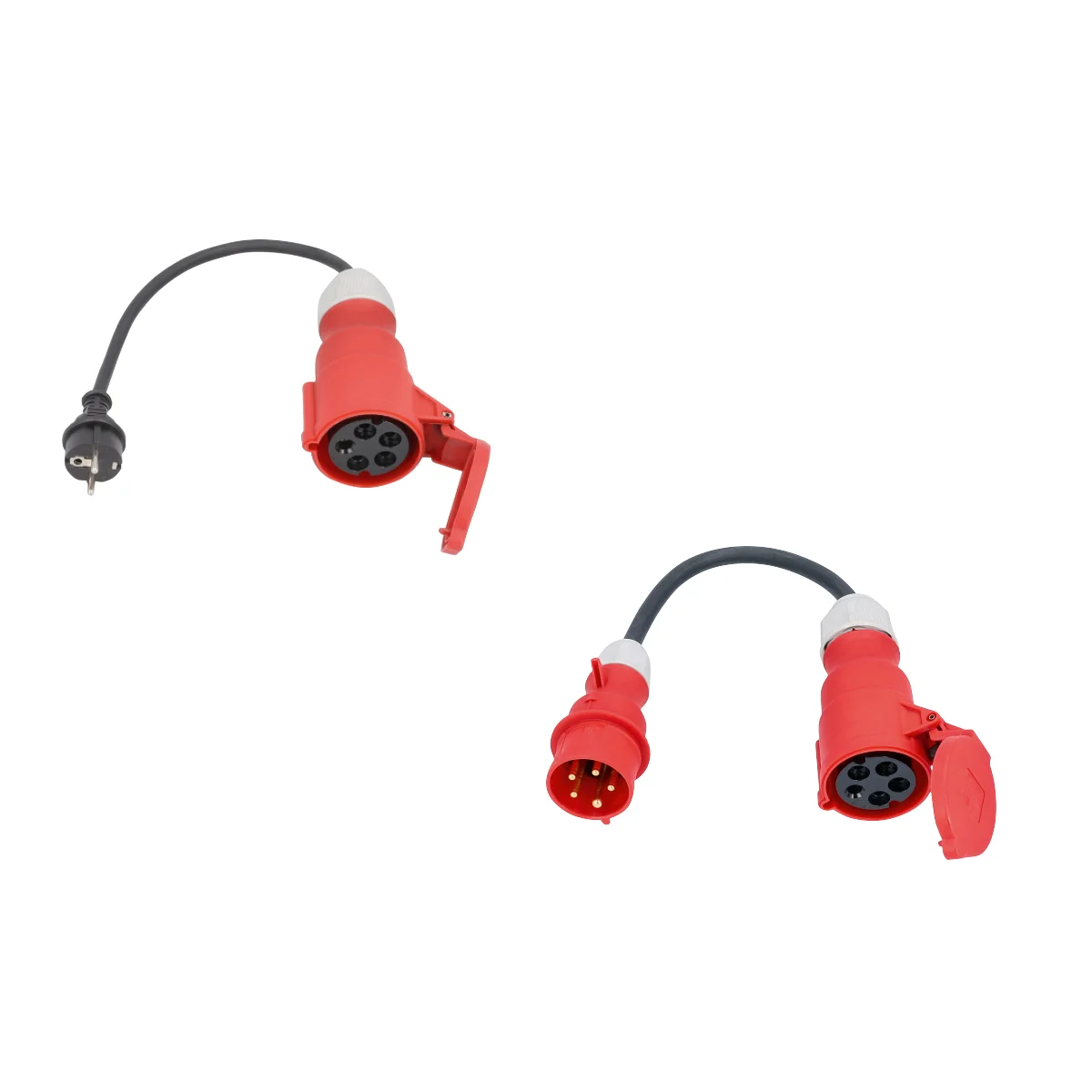

  • Adapter cable E2 (Art. 61373)
    0.3 m heavy-duty rubber cable H07RN-F 3G2.5. 1st side: 230 V / 16 A earthing contact plug, 2nd side: red CEE coupling 400 V / 32 A / 5-pin, 230 V 16 A max. 3.6 kW, IP44

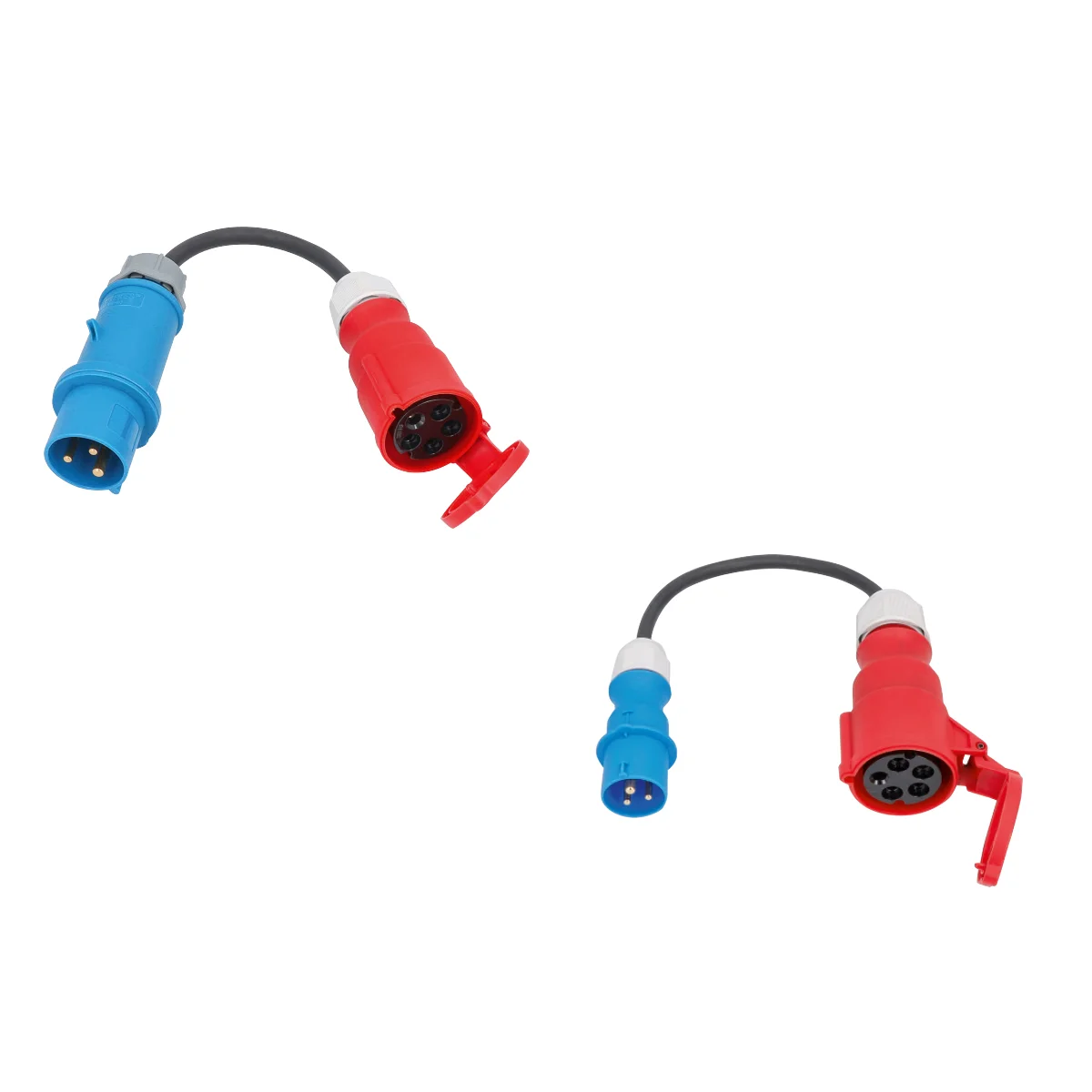

  • Adapter cable E4 (Art. 61374)
    0.3 m heavy-duty rubber cable H07RN-F 3G2.5, 1st side: CEE plug blue 230 V / 16 A / 3-pin, 2nd side: CEE coupling red 400 V / 32 A / 5-pin with hinged cover, 230 V 16 A max. 3.6 kW, IP44
  • Adapter cable E5 (Art. 61375)
    0.3 m heavy-duty rubber cable H07RN-F 3G6. 1st side: CEE plug blue 230 V / 32 A / 3-pin, 2nd side: CEE coupling red 400 V / 32 A / 5-pin with hinged cover, 230 V 32 A max. 7.2 kW, IP44
  • CEE adapter cable E6 (Art. 61376)
    0.3 m heavy-duty rubber cable H07RN-F 5G2.5, 1st side: CEE plug red 400 V / 16 A / 5-pin, 2nd side: CEE coupling red 400 V / 32 A / 5-pin, 400 V / 16 A max. 11 kW, IP44
  • Protective bag for adapter cables (Art. 12280)
    with zip and carrying handles, Ø 40cm

Opis

With the adapter set "Wishfully happy" you can charge your electric vehicle at almost all available power sources in all European countries. Simply plug the charger with the appropriate adapter into a suitable socket, connect the type 2 plug of the unit to your electric vehicle and the vehicle will be charged safely and at maximum speed.

Versions

SET EAN Item no.
Wishfully happy 4011160613777 61377

Details

Security
nan
[1081][1085]
Technical data

400V, 32A, 3-phase, 22kW
Use
[2][9]

LCD display WITH DATA OVERVIEW
The LCD display informs you about all relevant aspects of the charging process:

  • Current voltage
  • Set maximum current
  • Current charging current
  • kWh charged since start of charging
  • Current temperature of the control unit
  • Info about earthing

LED DISPLAY CHARGING STATUS
The LED display shows the current charging status. If the device is ready for operation, the charging process starts at the same time. Any faults that occur can be quickly identified by the display in different colours.

SELECTABLE AMPERE LEVEL
6A/8A/10A/16A/ 20A/24A/32A
The charging current can be set individually depending on the available power source. To do this, simply tap the touch-sensitive surface on the front of the control unit

FLEXIBILITY
When you are travelling or visiting relatives and friends, you no longer have to worry about charging your electric car. With this mobile charger, you can easily charge at almost all available power sources in all European countries. Depending on the model, all you need is an earthed socket or a CEE socket.

TIMER FUNCTION
Our mobile chargers have a timer function that allows the charging process to be started immediately or with a time delay of 2, 4 or 6 hours.

HIGH SECURITY
Our EV charger is made of high-strength ABS material, making it significantly more durable than conventional products. The charger guarantees protection against overtemperature, fault currents, impermissibly high charging current, overvoltage, undervoltage and poor earthing. Our products also comply with protection class IP44 and are therefore protected against dust and splash water.
