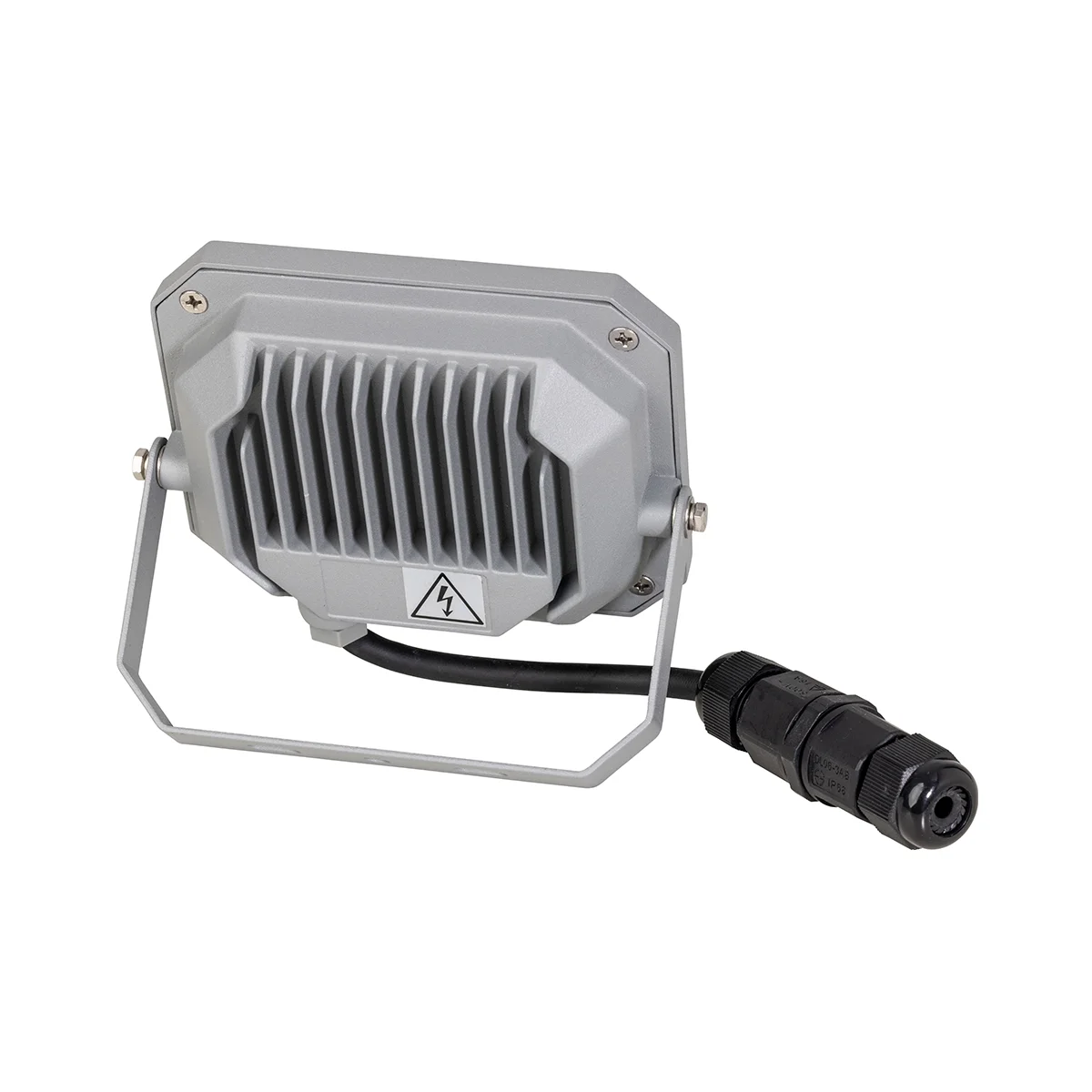

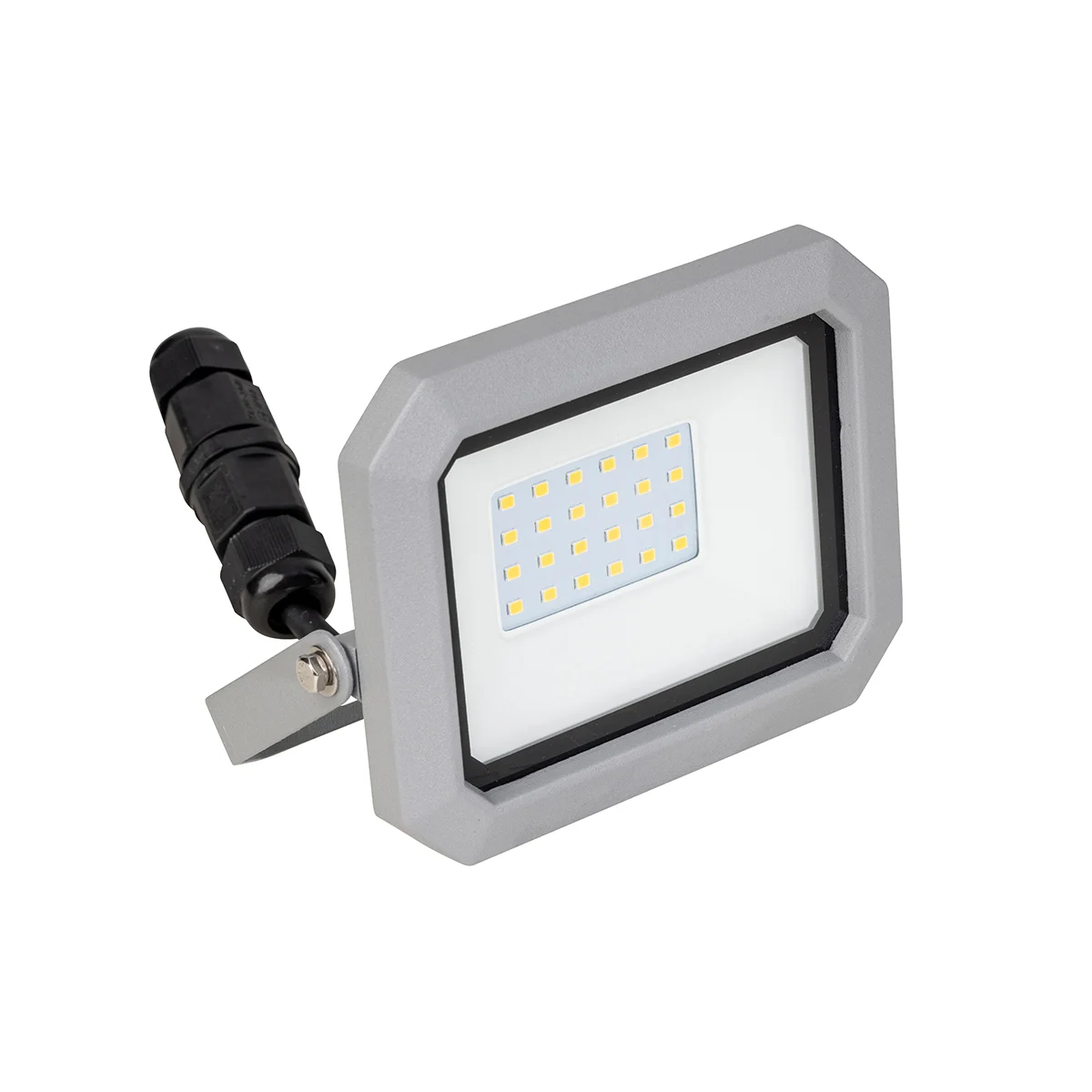

Slimline LED spotlight

Categories: , SKU: 46415,46425,46480,46465
  • specially developed ORIGINAL SAMSUNG SMD LEDService life over 50,000 hours
  • Extremely slim, reinforced die-cast aluminium housing in a modern design
  • Spotlight can be swivelled and locked
  • Replaceable safety glass
  • LED beam angle: 120°
  • Connection: 230 V/50-60 Hz
  • Colour temperature: 4,000 K (neutral white)
  • IP65: dustproof and protected against water jets

10 Watt (art. no. 46415):

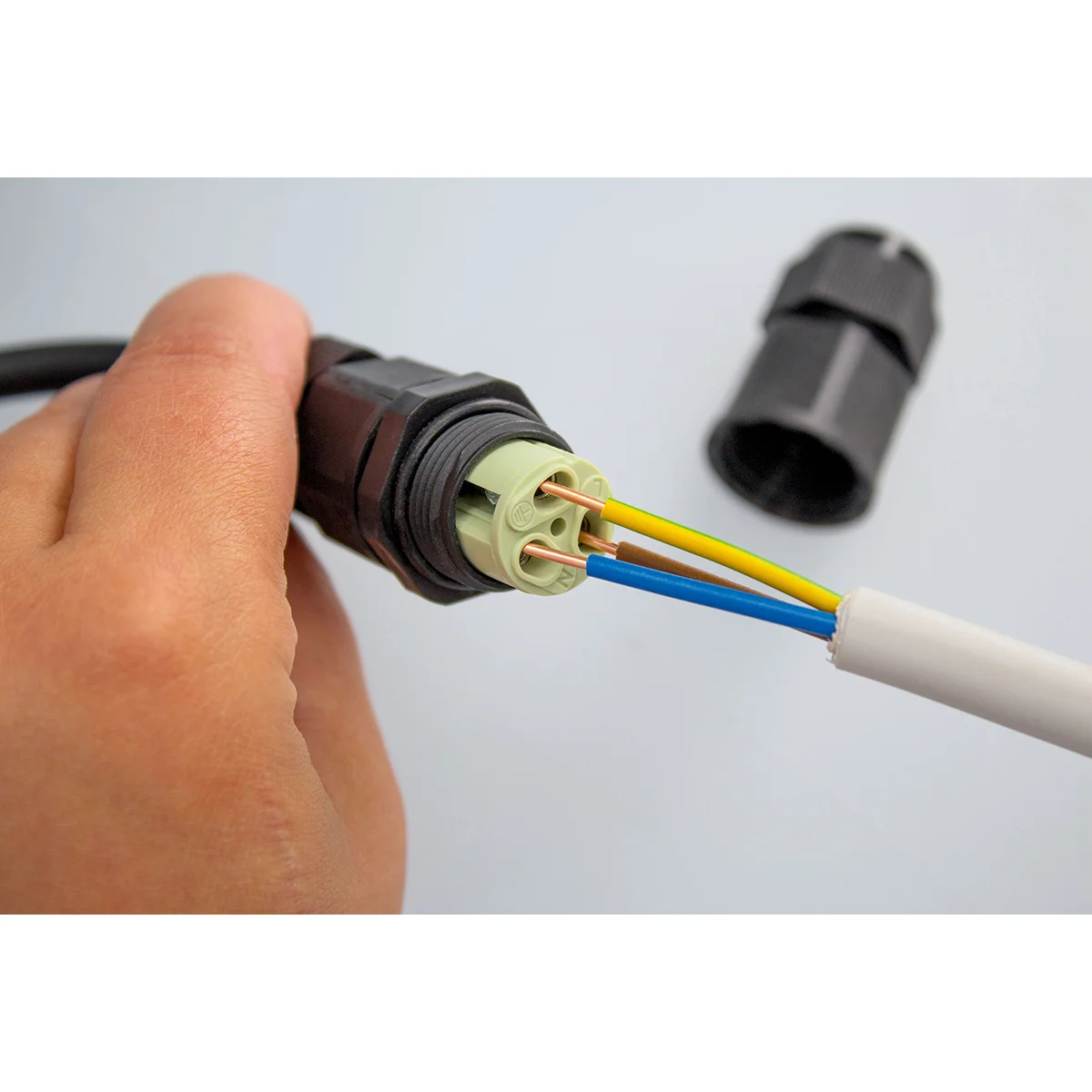

  • Without supply cable, cable entry for cables up to 3G1.5

20 watts (art. no.: 46425) and 50 watts (art. no. 46405):

  • 2 m rubber cable H05RN-F 3G1.0 with earthing contact plug

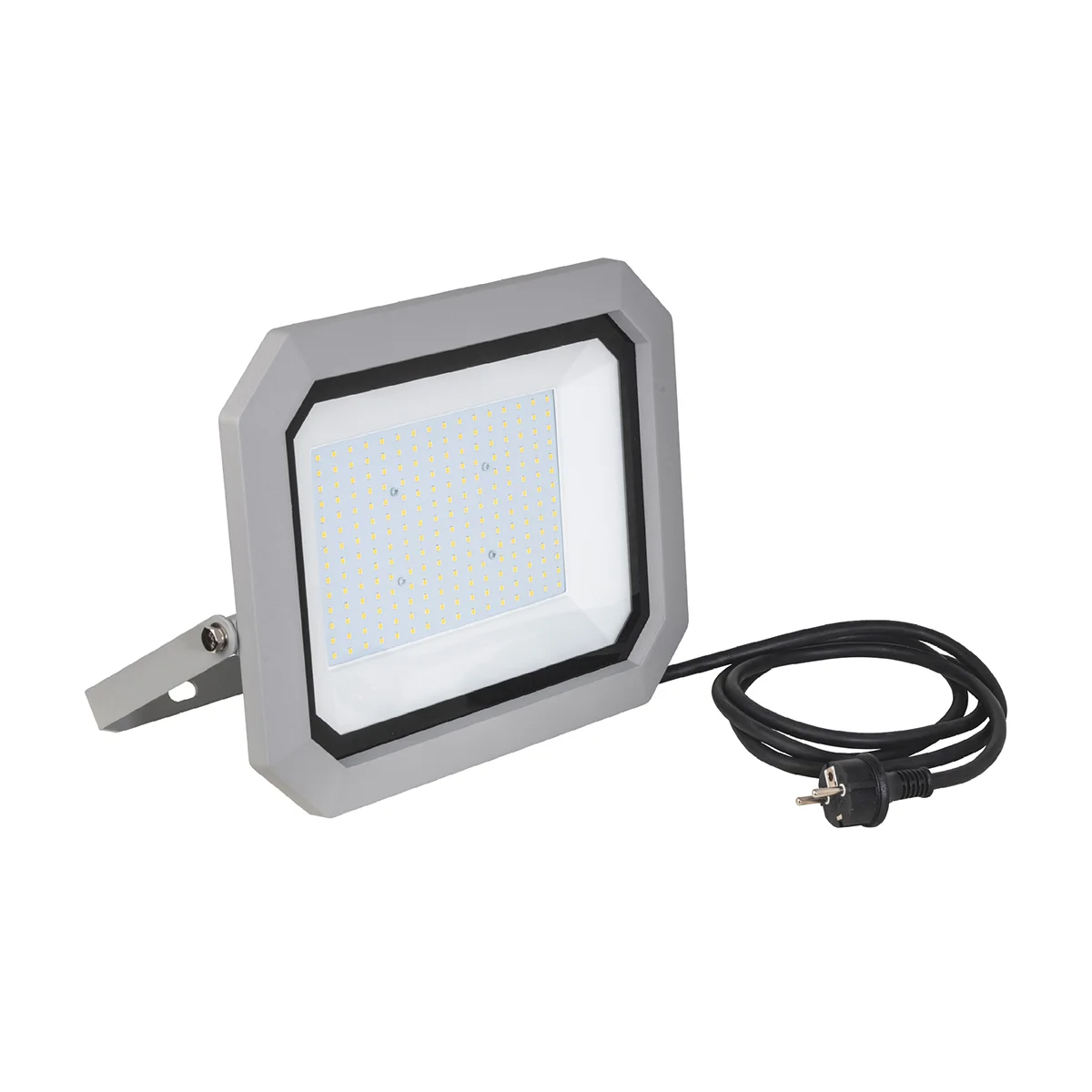

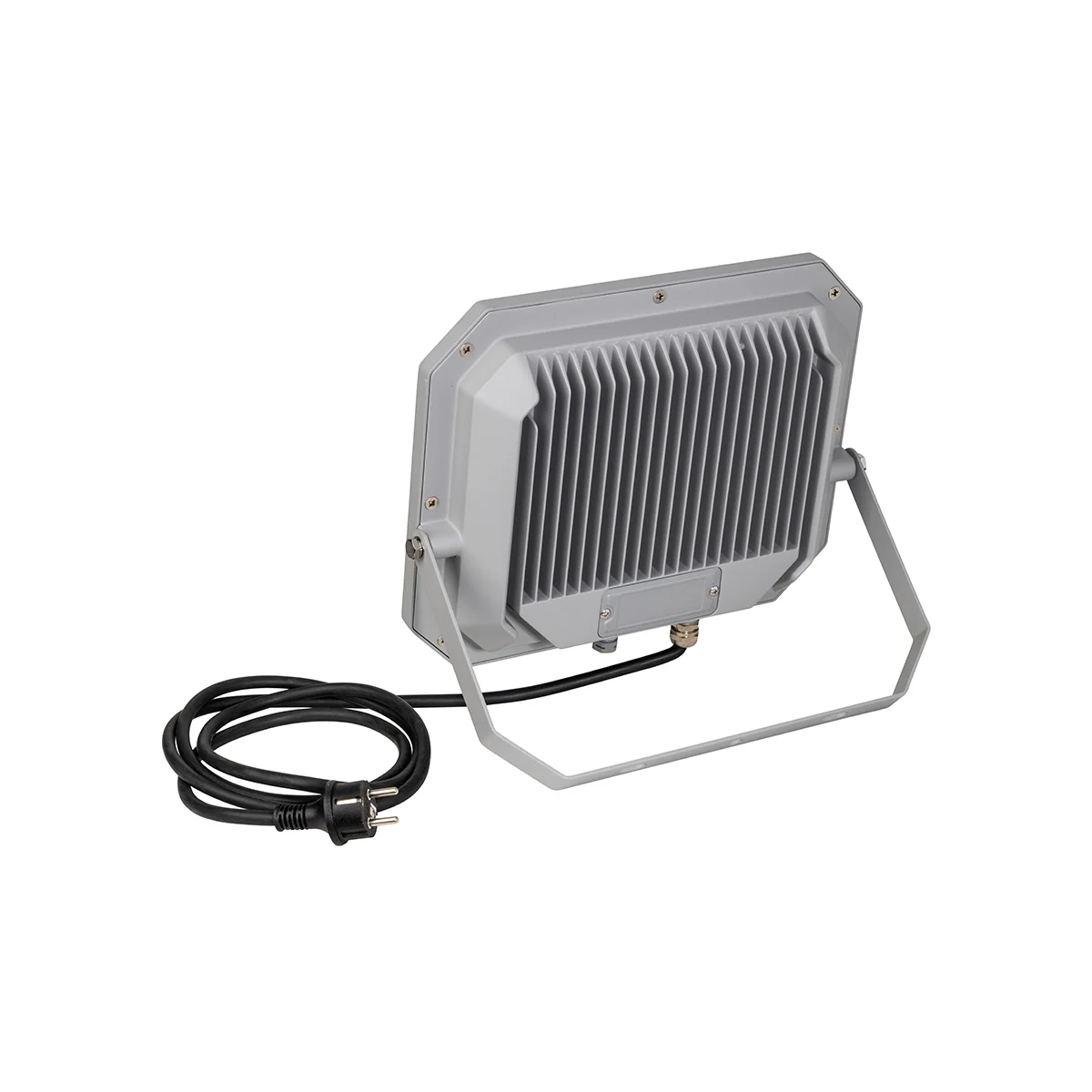

80 watts (item no. 46480) and 120 watts (item no. 46465):

  • 2 m rubber cable H07RN-F 3G1.5 with earthing contact plug

Opis

Latest SAMSUNG CHIP-LED technology
  • less light loss: Conventional LEDs lose 5 % of their light output within 3 months
  • more effective LED: Higher light output with lower consumption
  • excellent thermal properties: Longer service life than other chip LEDs

Versions

Model Light output PU Item no.
10 watts approx. 850 lumen 1 46415
20 watts approx. 1,700 lumens 1 46425
80 watts approx. 6,800 lumens 1 46480
120 watts approx. 10,200 lumens 1 46465

Details

Security
Tested according to DIN EN 60598-1
[1080]
Technical data
Connection: 230 V/50-60 Hz
Use
[1][2][3]
LED technology LEDs are tiny electronic chips made from special Semiconductor compounds. If current flows through this solid, it begins to glow, it "emits" light. In lighting technology, this process is called "electroluminescence". With an edge length of around one millimetre, LEDs are among the smallest available light sources. They radiate an almost punctiform light off. Already little energy is sufficient to excite the semiconductors to light up. Advantages of LED:
  • Very low power consumption (over 90 % less energy consumption compared to halogen lamps)
  • High luminous efficacy without start-up phase
  • Extremely low heat generation
  • Extremely long service life
  • do not contain any hazardous substances such as mercury
