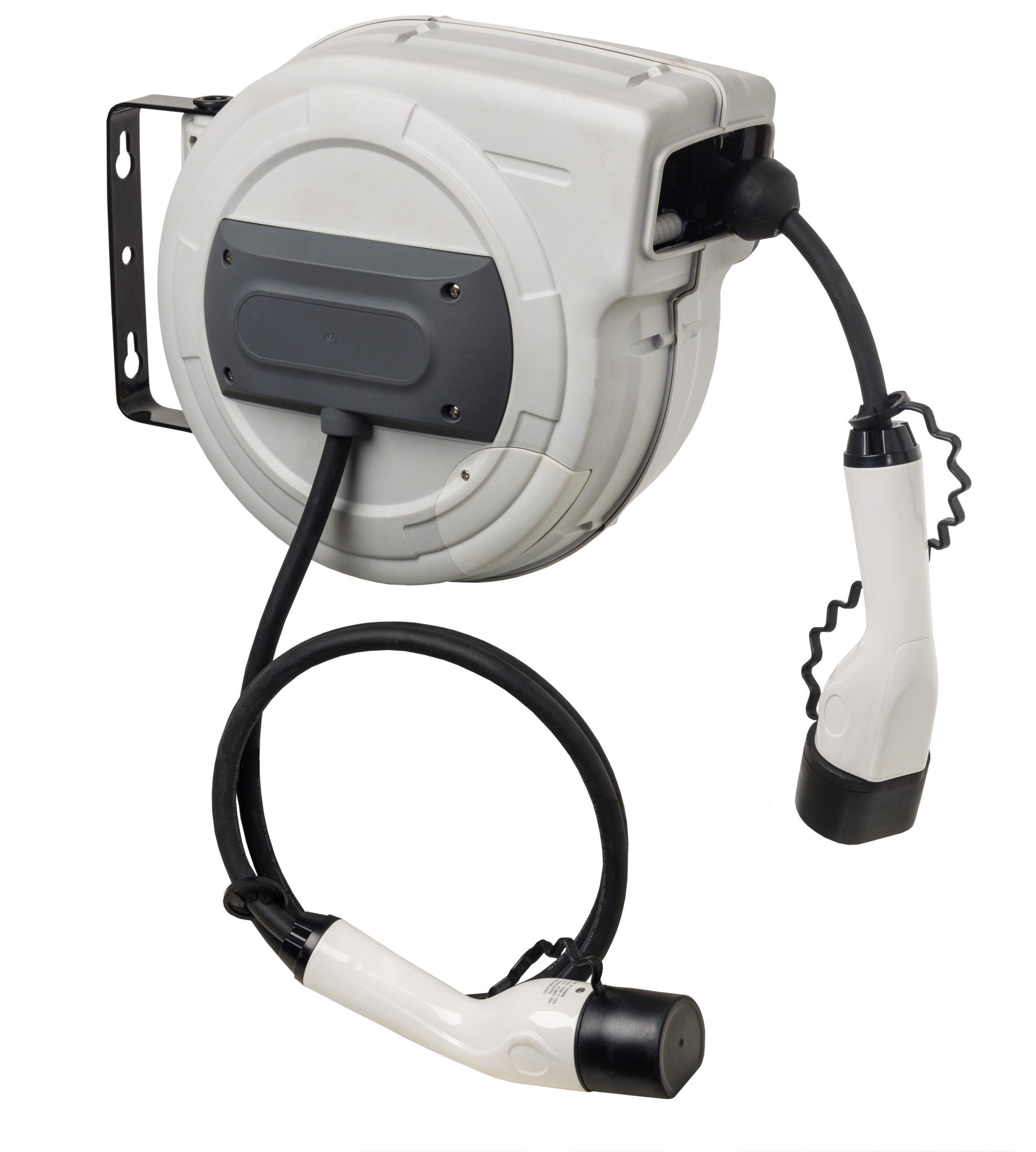

Reel for electric car charging cable

Categories: , SKU: 65160, 65161
  • Drum body made of robust, highly break-resistant special plastic: extremely robust design

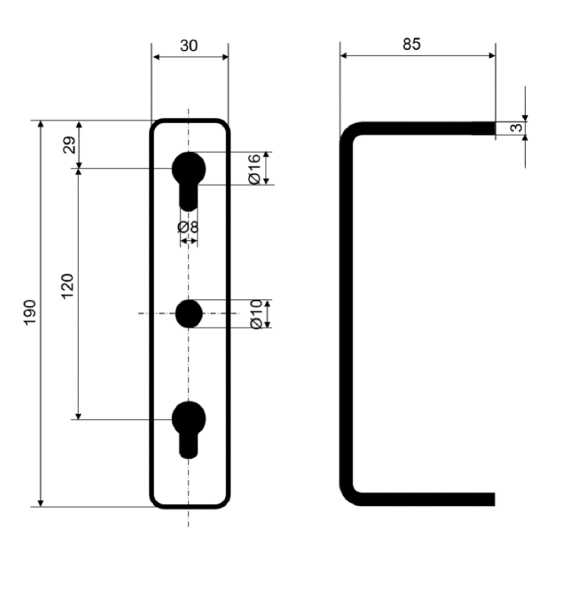

  • Can be swivelled 180° on the wall mounting

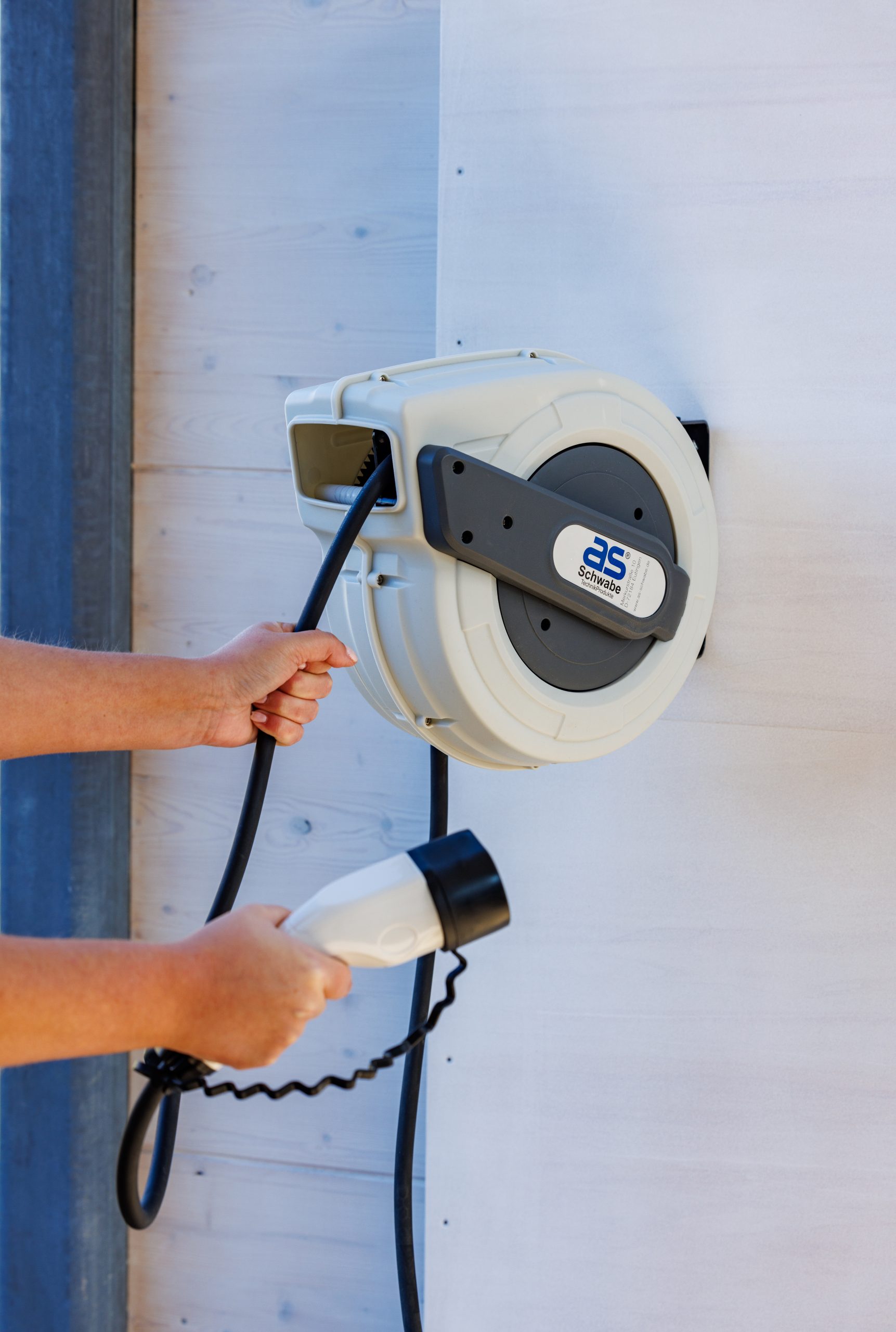

  • No more tedious winding of the cable. A light pull on the cable is all it takes and the automatic retractor stows the entire cable in the cable retractor housing
  • Thanks to the fixed locking mechanism on the cable, the earthing contact coupling cannot be pulled into the housing when it is rolled up
  • with built-in thermal circuit breaker
  • Input cable 2 m, output cable 5 m/ 8 m
  • Type 2 input plug, type 2 output plug
  • Cable H07BZ5-F 5G2.5 + 1×0.75
  • max. power 11kW
  • Including heavy-duty wall plugs/screws for wall mounting
  • IP44

Opis

  • Robust electric car charging cable reel with spring mechanism
  • High-quality plastic housing made from polypropylene

Versions

Reel for electric car charging cable Colour PU Item no.
Input cable 2 m, output cable 5 m grey/anthracite 1 65160
Input cable 2 m, output cable 8 m grey/anthracite 1 65161

Details

Security
Tested according to: EN 61242 DIN VDE 0620-2-1 DIN EN 50525-2
[1085]
Technical data
400 V, three-phase, max. 11kW
Use
[1][2][3]
