M1 Mobile CEE site power distributor 16 A, 11 kW

Categories: , SKU: 60550

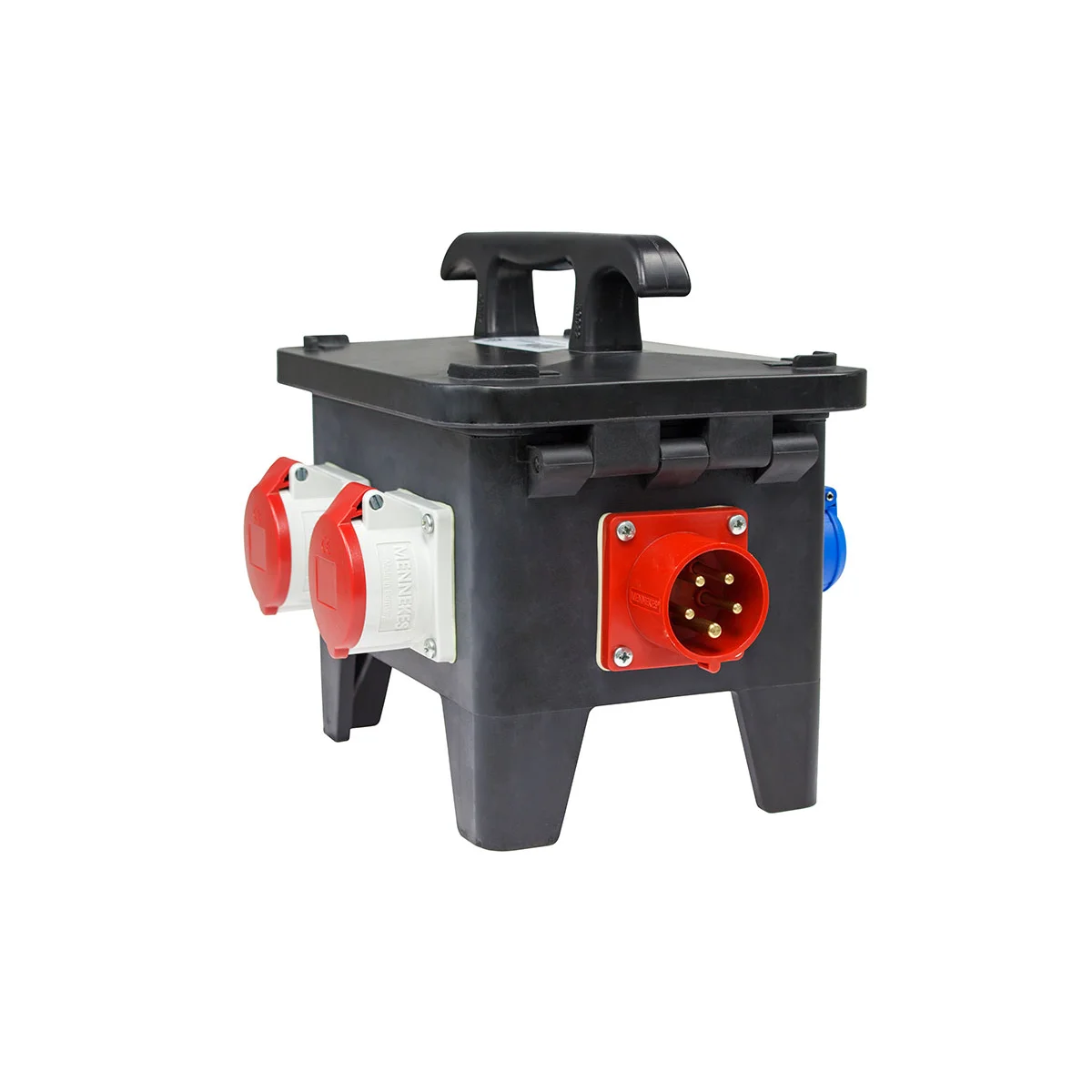

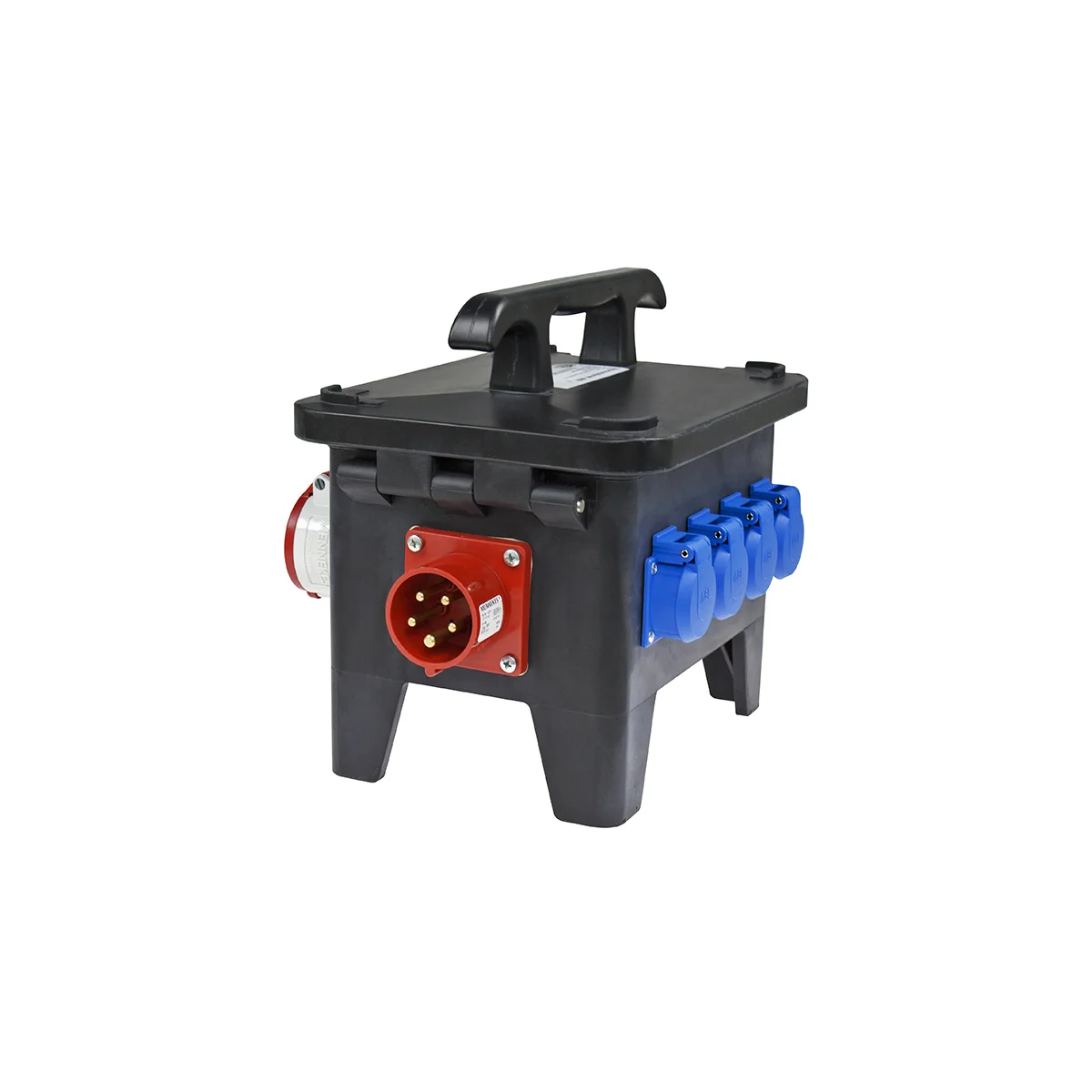

  • Entrance
    Appliance plug connection CEE 400 V, 16 A, 5-pin
  • Output:
    4x 230 V, 16 A socket outlets with earthing contact,
    2x CEE sockets 400 V, 16 A, 5-pin

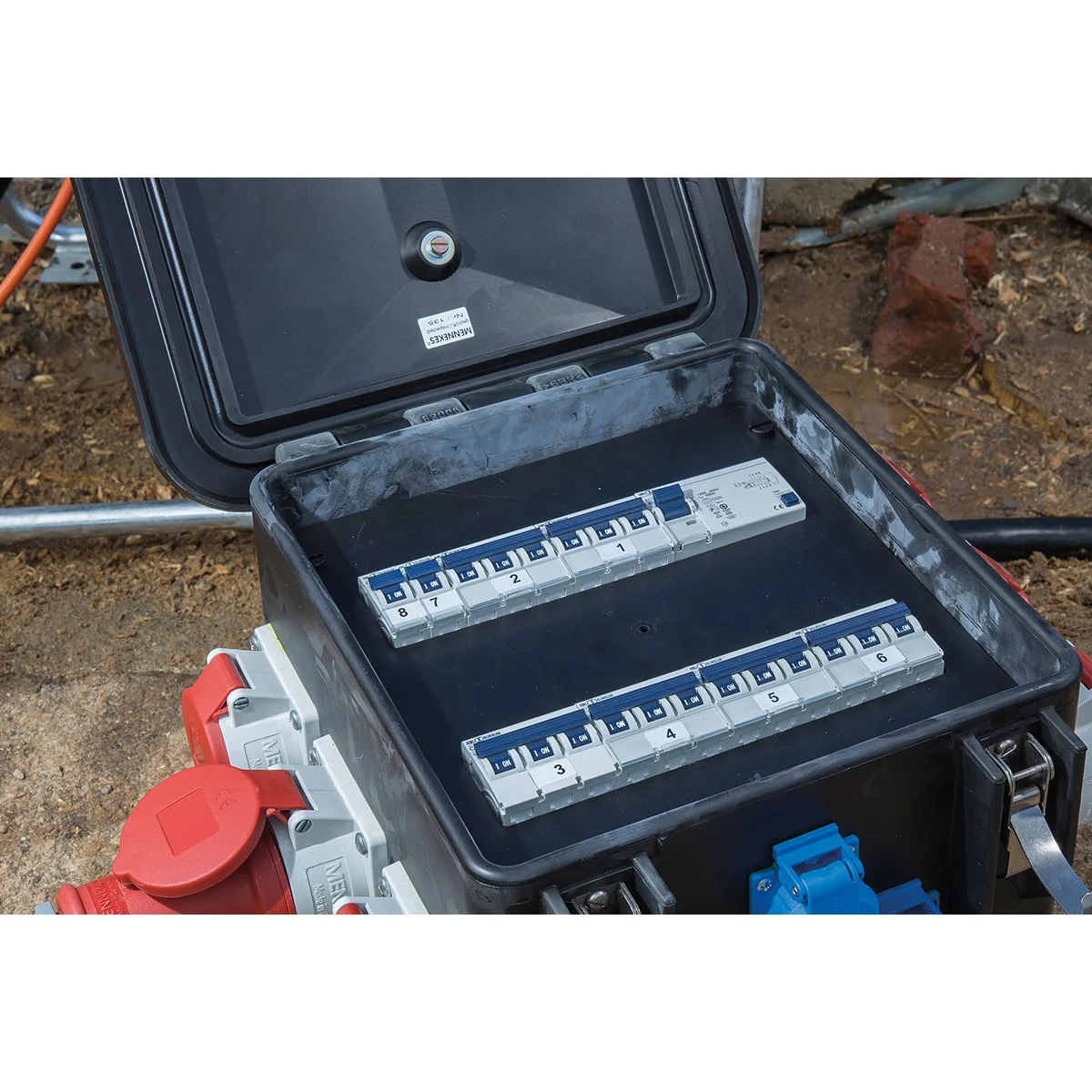

  • Protection:
    1x RCD 40 A, 4-pole, 30 mA, type A
    (Versions with all-current sensitive RCD type B available on request)
  • Housing made of extremely robust solid rubber, stackable and therefore extremely space-saving to store
  • Closed housing base with 77 mm ground clearance prevents water ingress
  • Easy replacement of the surface-mounted sockets
  • Housing cover with stainless steel quick-release fasteners
  • Safe to touch, even when the lid is open - in accordance with BGV A2
  • Fuses specially protected by installation inside
  • Additional security with optional screw or padlock
  • IP44: protected against foreign bodies and splash water

Opis

Series M solid rubber current distributors are specially designed for rough construction site use.
They are characterised by outstanding quality, dimensional stability and durability. Especially where the most extreme mechanical and/or chemical loads occur: aggressive acids or cleaning agents, high mechanical forces, a wide range of temperature conditions or similar. Even strong impacts have no influence on the shape or function of the distributors.

Versions

M1 solid rubber CEE site power distributor kg PU Item no.
Input 16 A, approx. 11 kW 8,00 1 60550

Details

Security

Tested according to
DIN VDE 0620-2-1
IEC 60309
EN 61439-4

[1081][1085][1243][1246]
Technical data
16 A, approx. 11 kW

[DE]
Use
[1][2][3]

You need a special version of a building power distribution board?
We build customised products in the shortest possible time according to your wishes.
