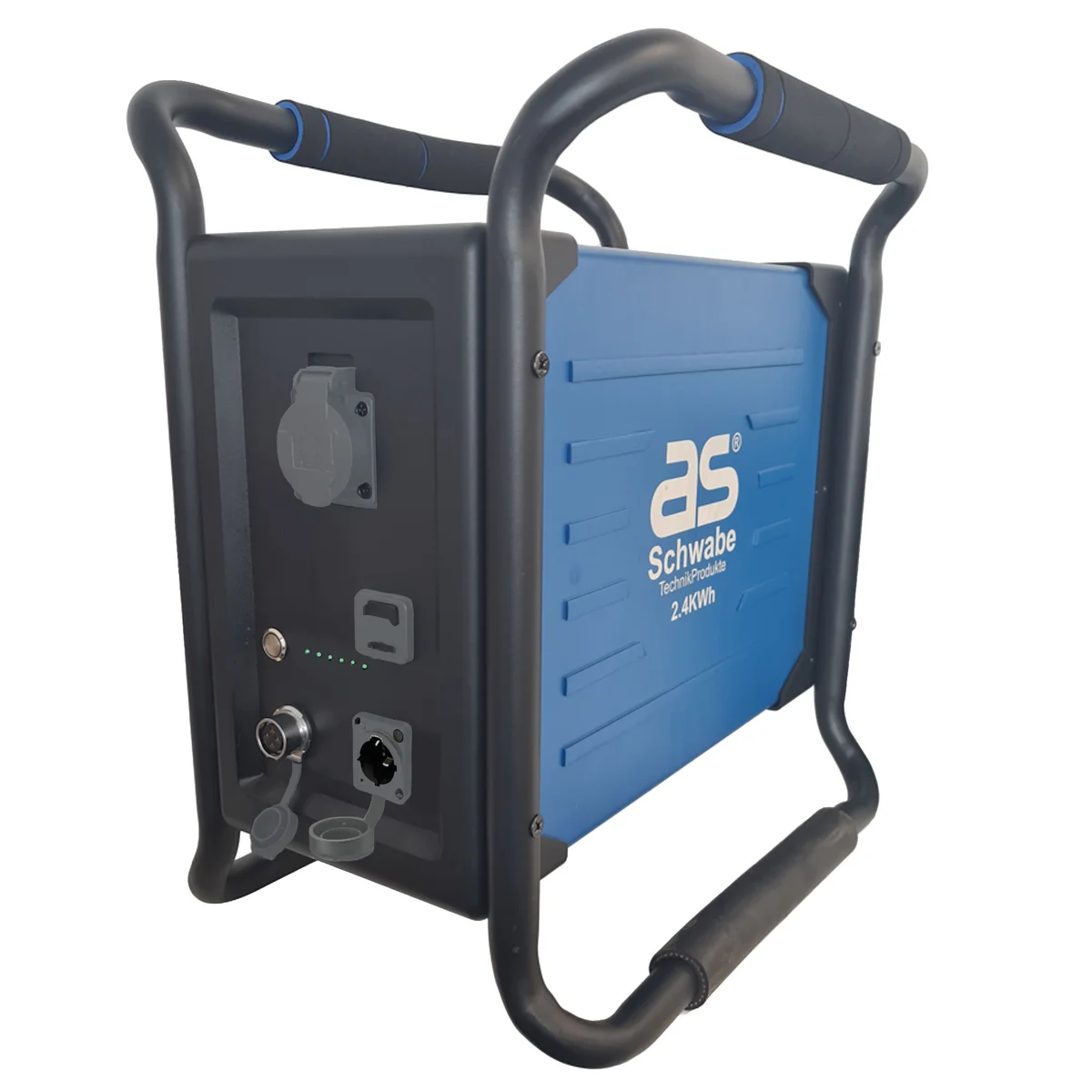

eco Powerstation 5000

Category: SKU: 90440
  • Discharge operating state:
    Output voltage: 230 V AC (185-253) / 50 Hz2
    Rated power: 2,500 W2
    Max. Power: 5,000 W (< 2 sec)2
    Rated current: 10 A2
    Maximum discharge current: 16 A2
    Maximum short-circuit current (peak): 450 A2
    Maximum operating time (idle): 80 h2
    Line protection: 16 A2
    Permissible ambient temperature: - 10°C to 65°C2
  • Charging operating status:
    Input voltage: 90-264 (V AC) / 47-63 Hz2
    Charging power: 500-1500 W2
    Charging current: 6 A2
    Charging time from the mains: < 3h to 100%2
    Permissible ambient temperature: 0°C to 45°C2
    Max. Charging power via solar panel: < 1000 W2
    Charging time with solar panel: 300W: 8-9 h / 400W: 6-7 h / 500W: 5-6 h2
  • Connections:

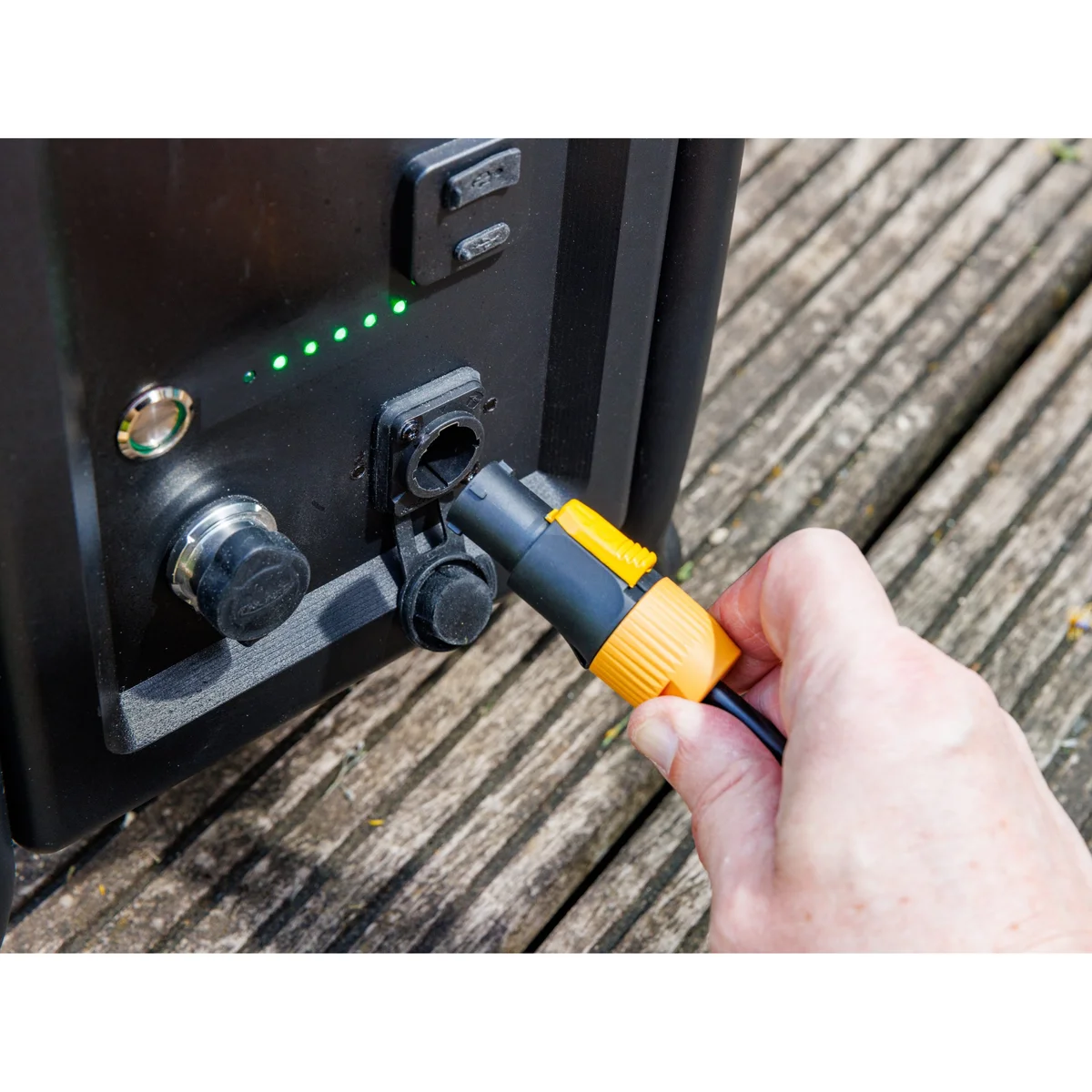

    AC charging input: Neutrik powerCON® TRUE1® TOP2
    Solar charging connection: CNLINKO LP-20-42
    Solar charge controller type: PWM2
    Input fuse: 275 V2
    Outlet socket: CEE 7/3 socket (230V 16A)2

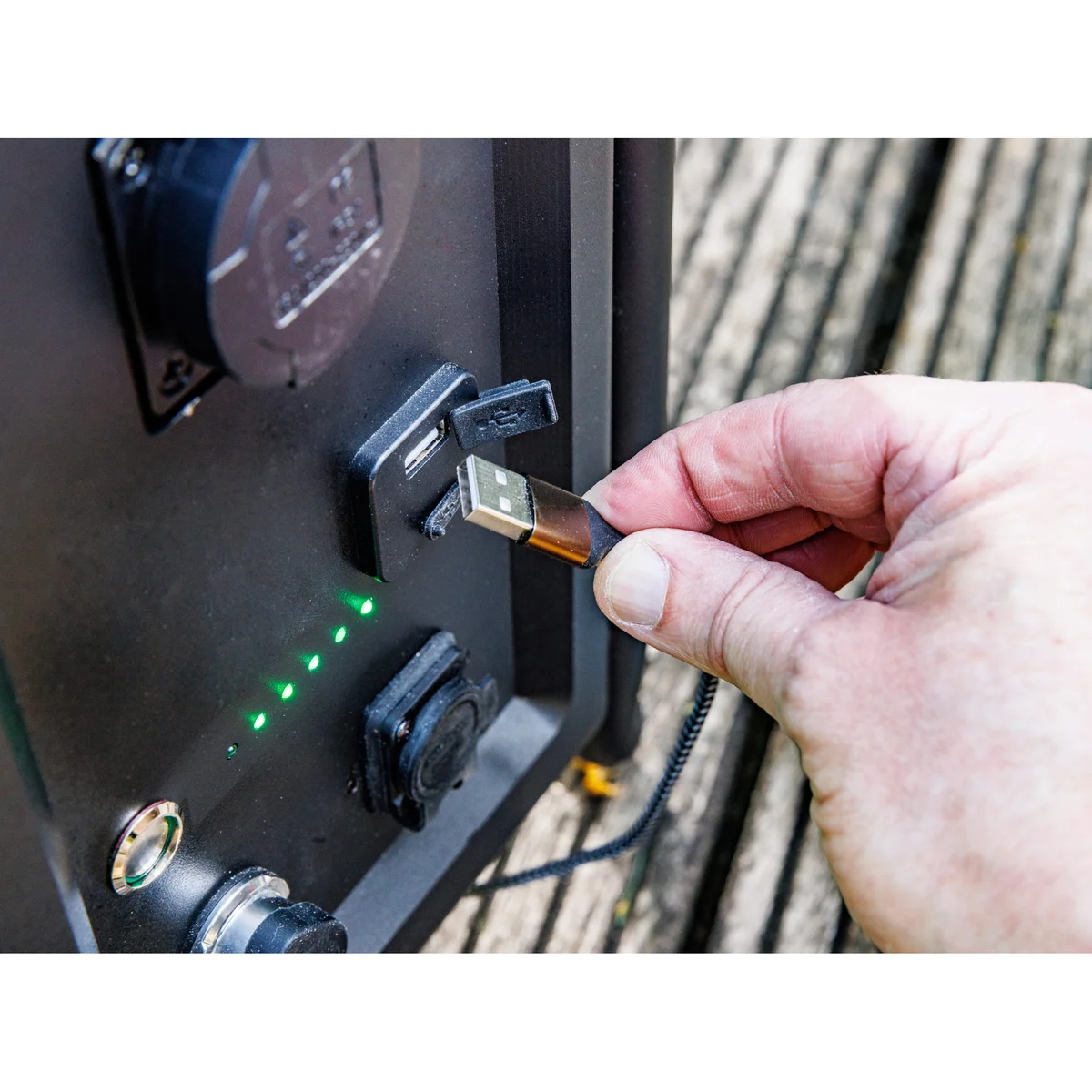

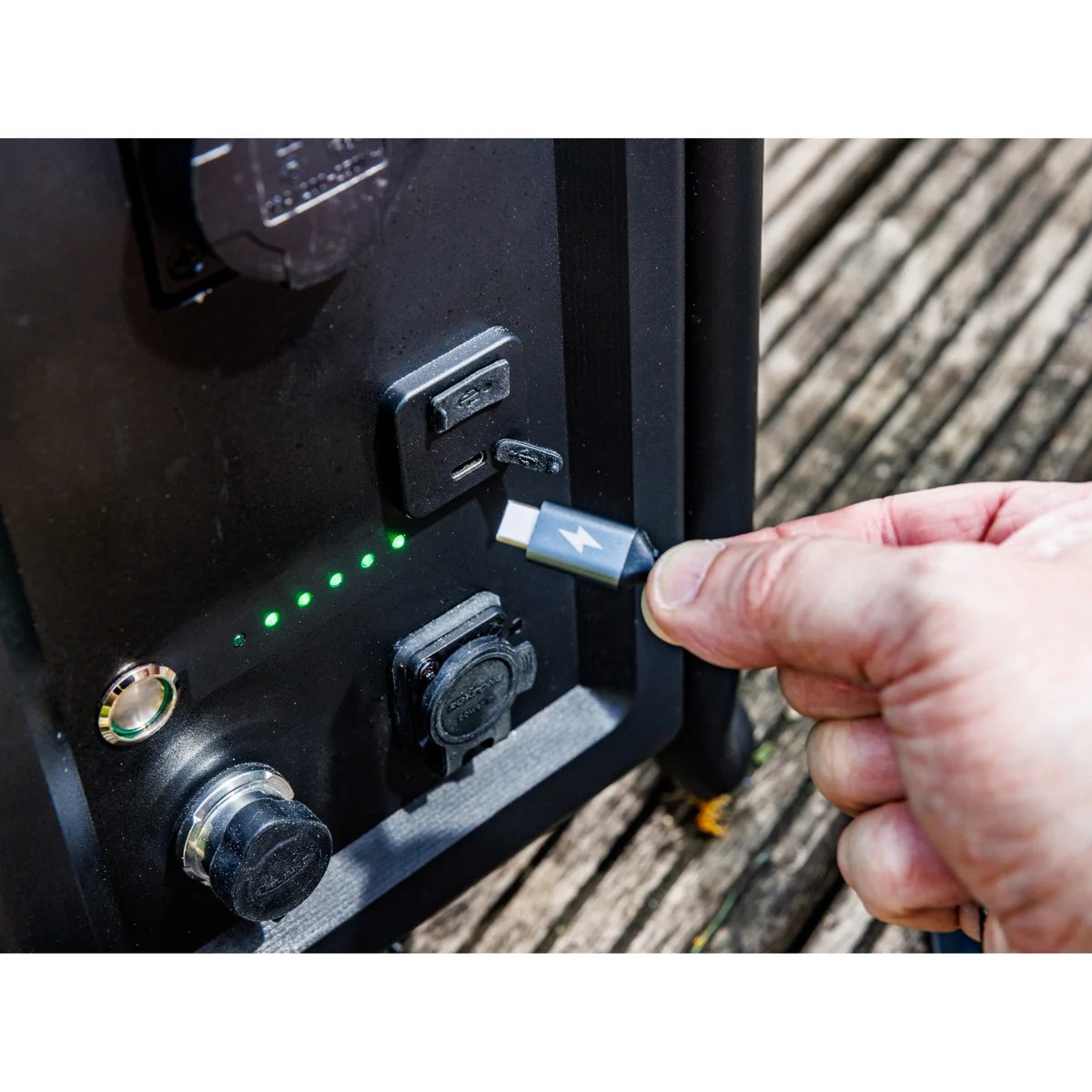

    DC output 1 (USB QC3.0): 10 W2
    DC output 2 (USB-C PD): 60 W2
  • Housing material: Aluminium
  • Dimensions: (L x W x H) 480 x 325 x 460 mm
  • Product weight: 25 kg

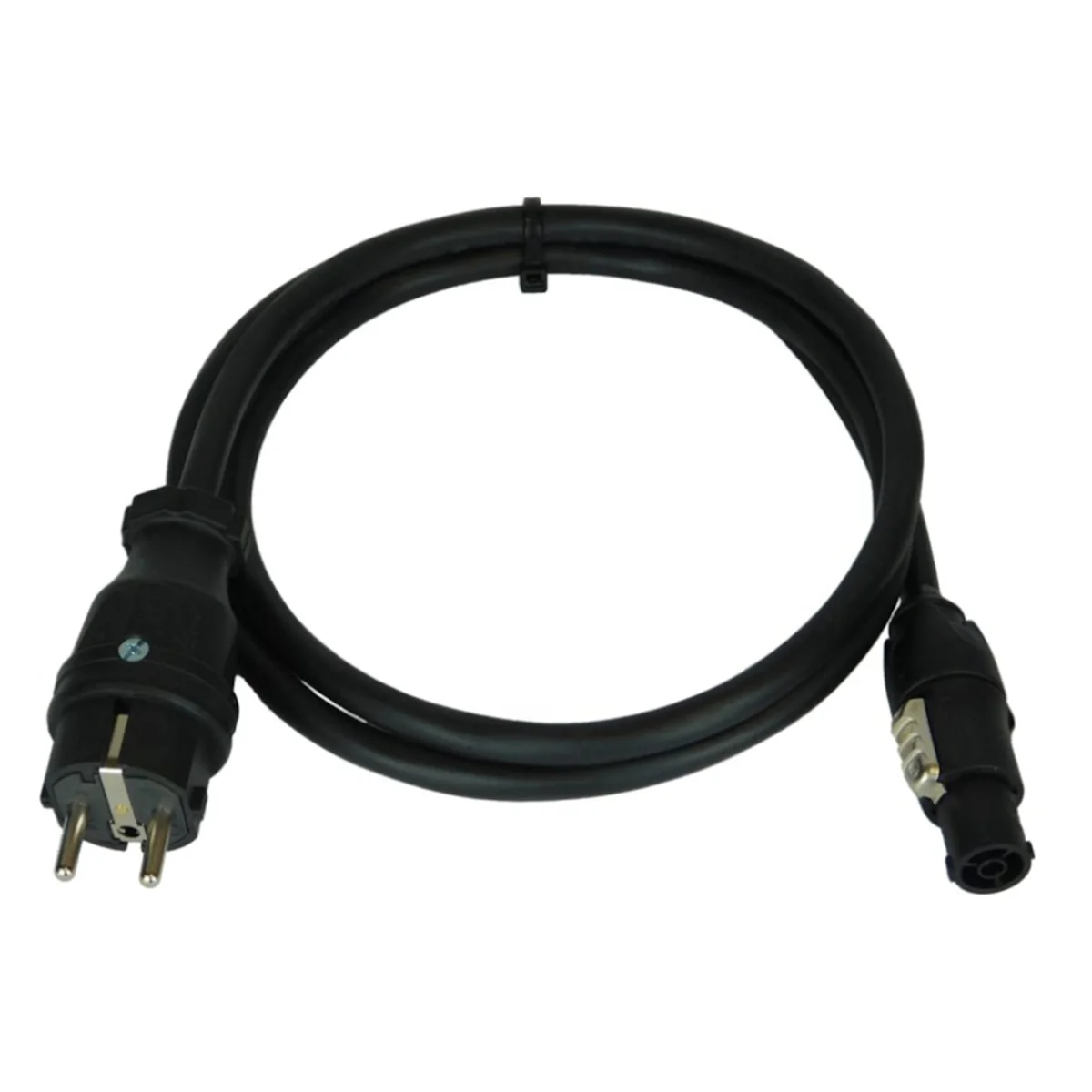

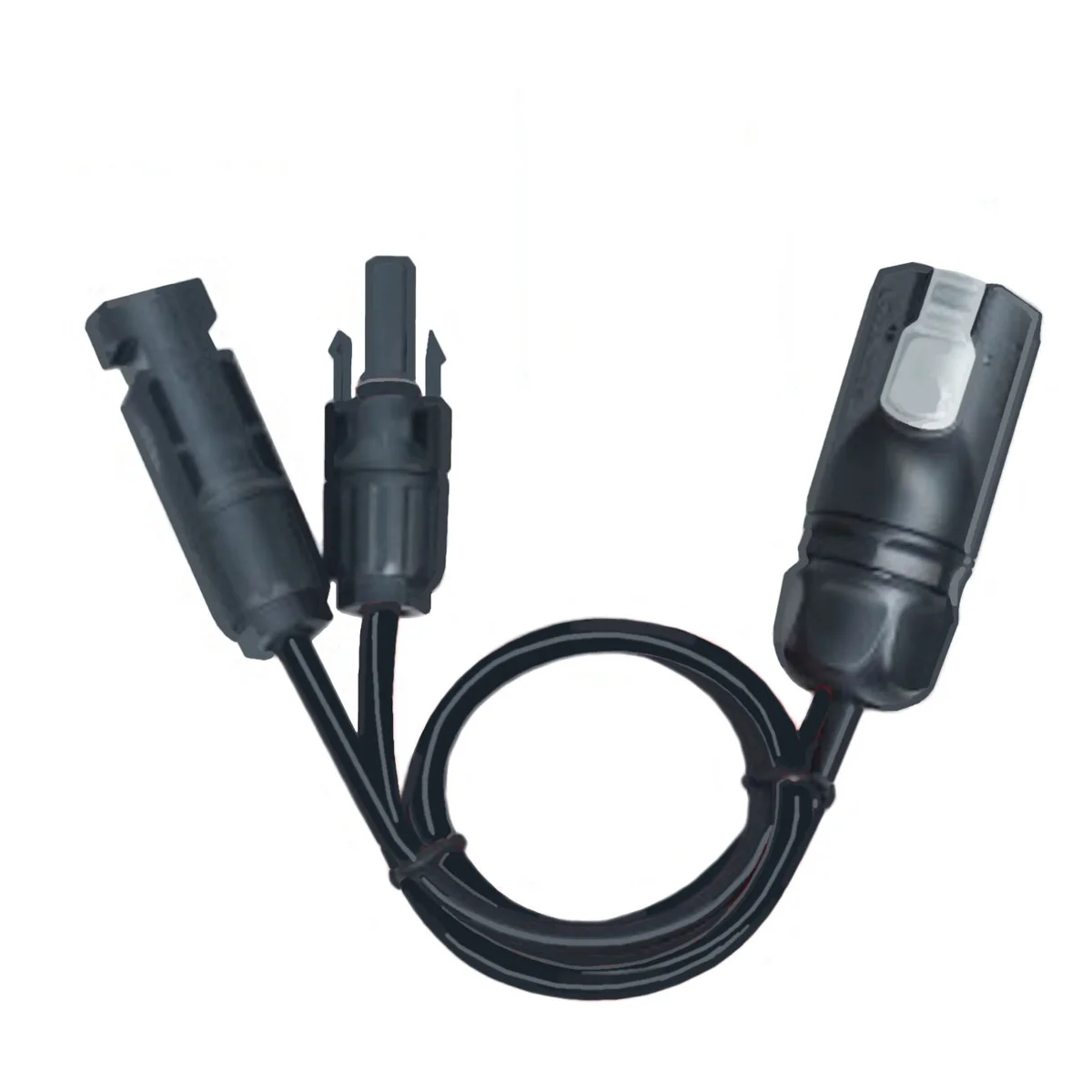

  • Scope of delivery: Powerstation, mains charging cable, solar charging cable, operating instructions
  • IP54

Opis

Versions

 PUItem no.
eco Powerstation 5000190440

Details

Security

[1085]
Technical data

Available energy 2.4 kWh
Battery cell type Li Ion
Battery voltage 48.1 V
Protection class II / double insulated
Noise emission < 10 dB(A)


Use
[1][2][3]

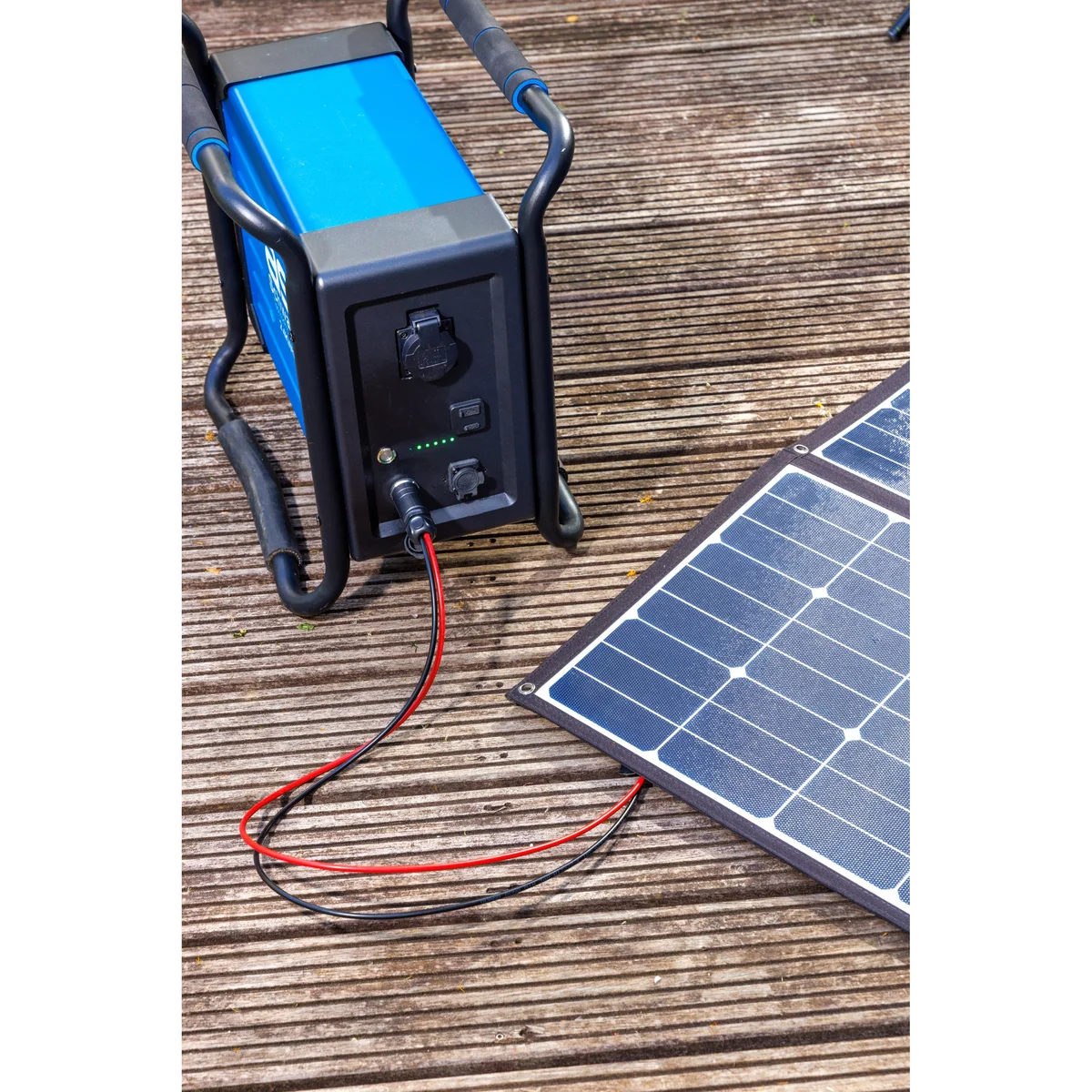

Optional charging via solar panel
The as - Schwabe solar panel set consists of two powerful 200 watt panels that are perfect for recharging the eco Powerstation 5000. In combination with the as - Schwabe solar panel, the Powerstation can be fully charged in just a few hours in intense sunlight, even in remote locations. The foldable design and light weight make it easy to transport and set up the solar panels. The practical feet guarantee optimum alignment to make the most of the sun's rays.
