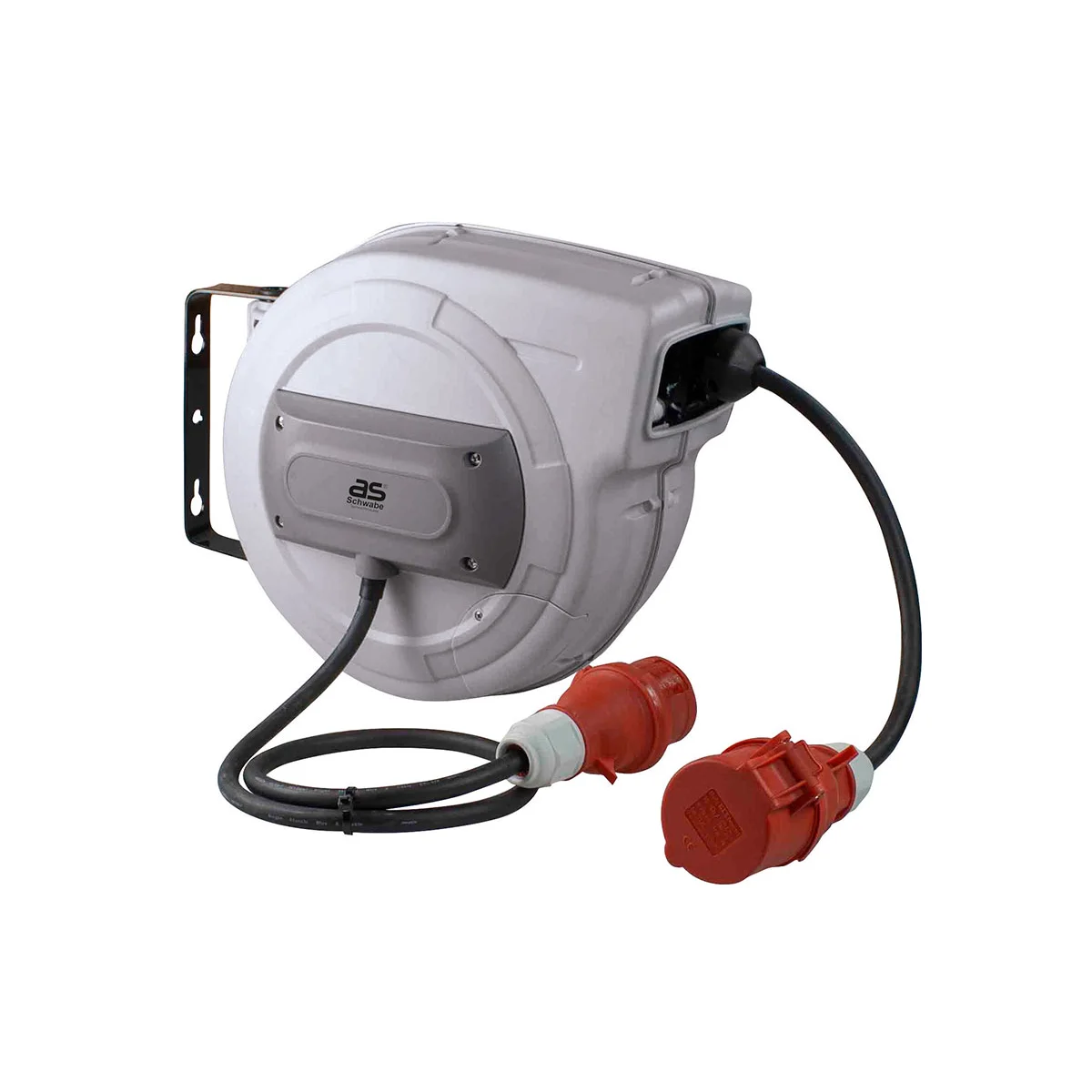

Automatic CEE cable reels for the workshop

Drum body made of robust, highly break-resistant special plastic: extremely robust design

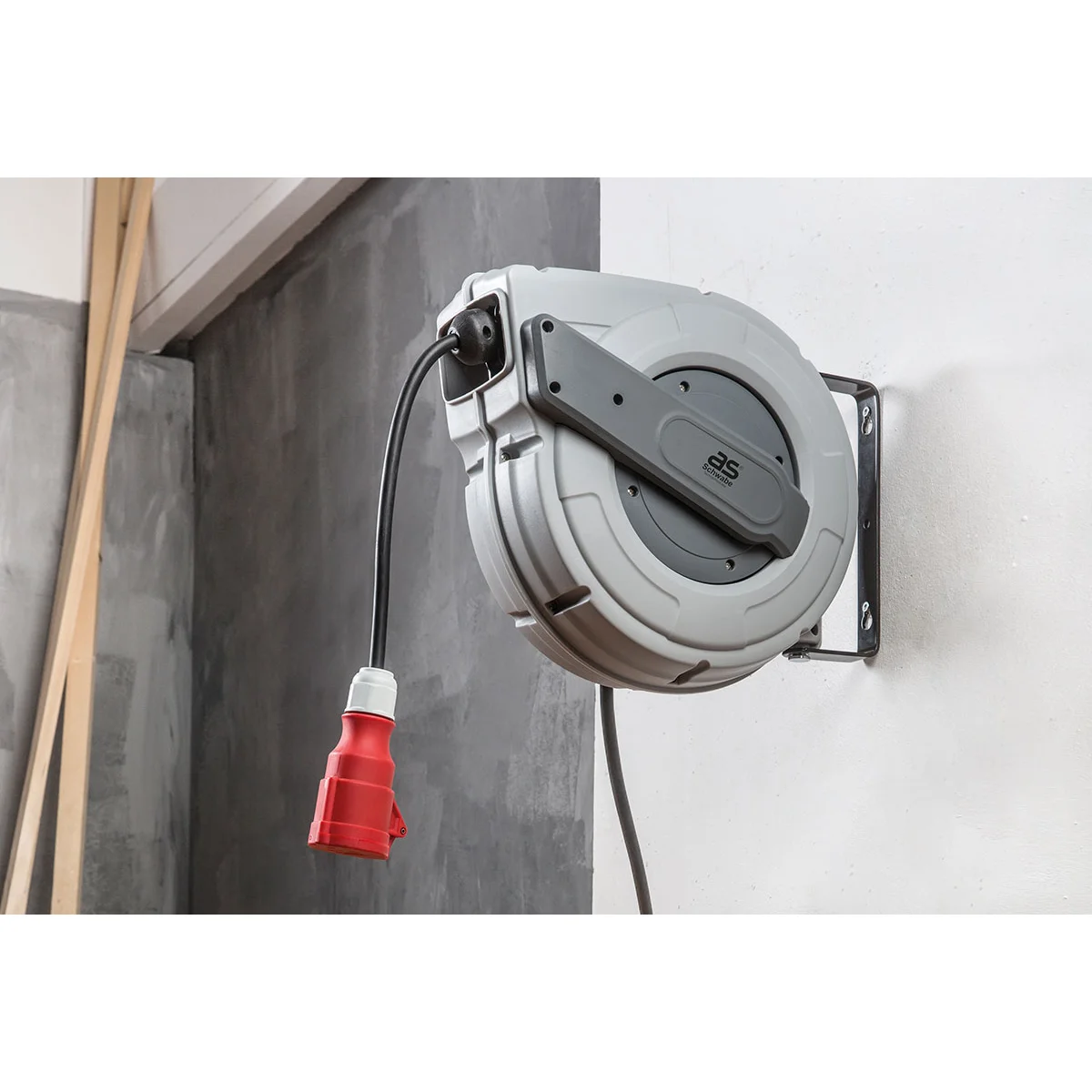

Can be swivelled 180° on the wall mounting
With handle for easy carrying
No more tedious winding of the cable. A light pull on the cable is all it takes and the automatic retractor stows the entire cable in the cable retractor housing.
Thanks to the fixed locking mechanism on the cable, the earthing contact coupling cannot be pulled into the housing when it is rolled up.
with built-in thermal circuit breaker
with CEE plug and CEE coupling (400 V, 16 A)
with heavy rubber cable H07RN-F
Including heavy-duty wall plugs/screws for wall mounting
IP44: suitable for use in the workshop

Opis

CEE cable reel with automatic roll-up function	loadable up to	Colour	PU	Item no.
10 m coupling cable and 1 m plug supply cable H07RN-F 5G1.5	max. 7 kW	grey/anthracite	1	12648
15 m coupling cable and 1 m plug supply cable H07RN-F 5G2,5	max. 10 kW	grey/anthracite	1	12649

Security
Tested according to: EN 61242 IEC 60309 DIN EN 50525-2

Technical data
400 V, 16 A, 5-pole, max. 10 kW

Use

You will find further versions as automatic compressed air hose reels here.
