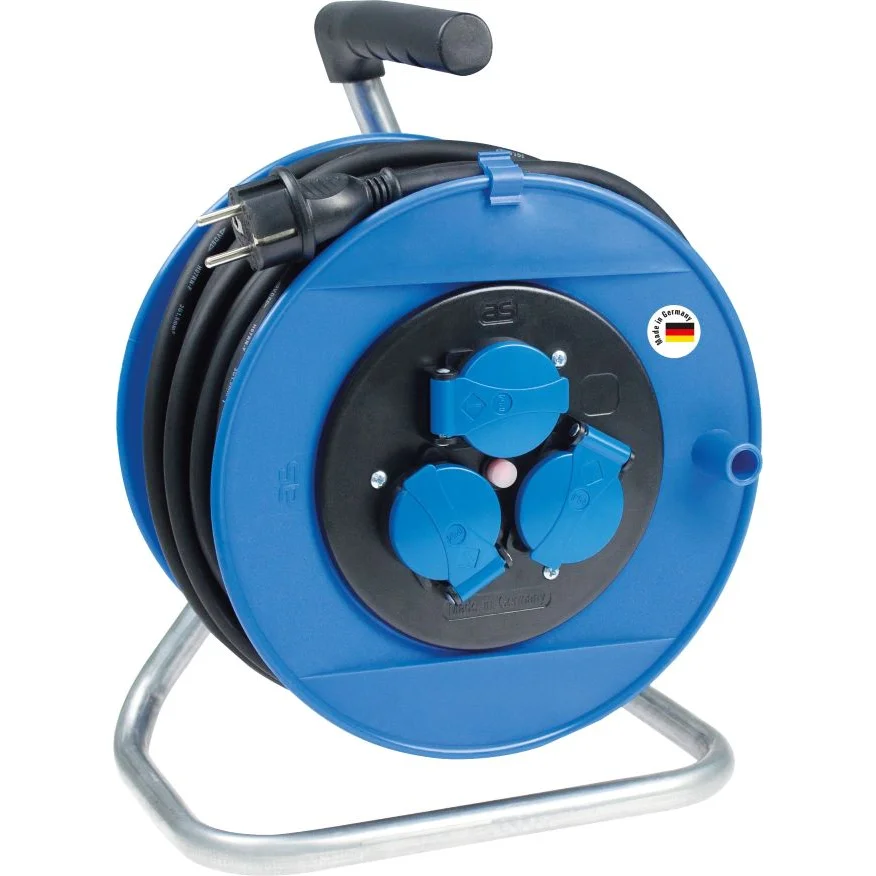

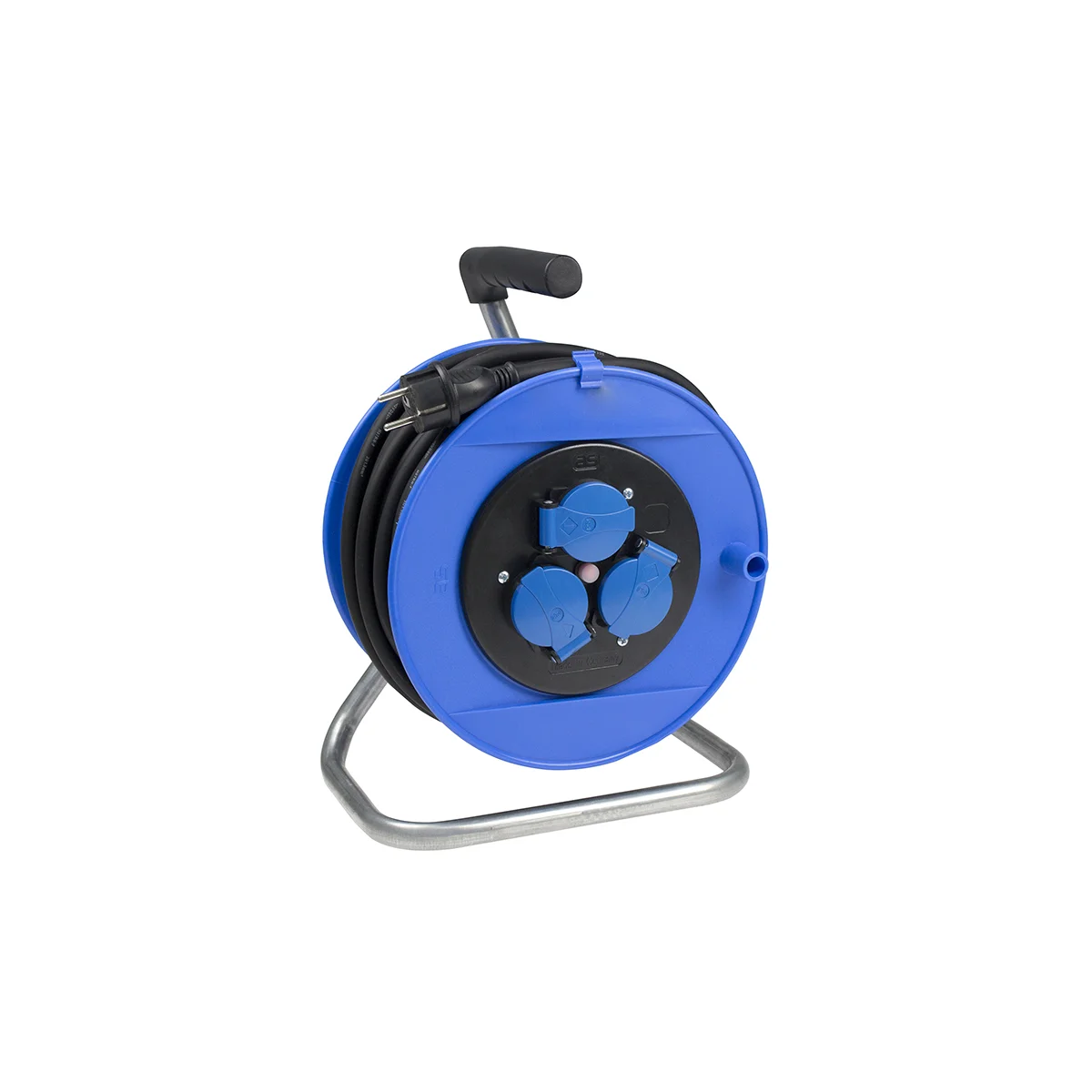

Promotional safety cable reel 260mmØ blue

Categories: , SKU: 11108







  • Cable reel H07RN-F 3G1.5 40 m
  • Drum body made of robust, highly break-resistant special plastic
  • Stable, shock-absorbing and galvanised single leg frame with parking brake
  • Ergonomically shaped handle with patented cable guide
  • Integrated thermal circuit breaker
  • With earthing contact plug
  • With 3 earthed socket outlets with safety hinged lids and hammer marks
  • Equipped with heavy rubber cable H07RN-F 3G1.5
  • Protection class IP44: protected against solid foreign bodies and splash water
  • Complies with the standards: EN 61242, DIN VDE 0620-2-1, DIN EN 50525-2, IEC 60309

Opis

Cable reel Blue reel body (RAL 5017) 40 m heavy-duty rubber cable H07RN-F 3G1.5 with earthing contact plug 3 built-in sockets 230V / 16A with hinged cover protected by thermal circuit breaker galvanised base frame with moulded handle and parking brake 230V / 16A / max. 3500W complies with BGI608 (DGUV-I 203-006)/ K2 (BGI600)

Informacje dodatkowe

Waga 7,25 kg
Wymiary 0,28 × 0,380 × 0,19 m
Cable length

40 m
Line type

H07RN-F 3G1.5
Drum diameter

Ø 260 mm
Packaging unit (PU)

1
Nominal voltage

230 V
Rated current

16 A
Max. Connected load

3500 W
Schultz class

IP44

Downloads

Downloads

Declaration of Conformity 11108 Data sheet 11108 BDA 11108

Frequently asked questions

Frequently asked questions

+ What does IP44 mean?
IP44 means protection against solid foreign bodies ≥ 1 mm and splash water from all directions.
+ Can I use the cable outside?
Yes, this cable is suitable for outdoor use.
+ How long is the cable?
The cable length is 40 metres.
